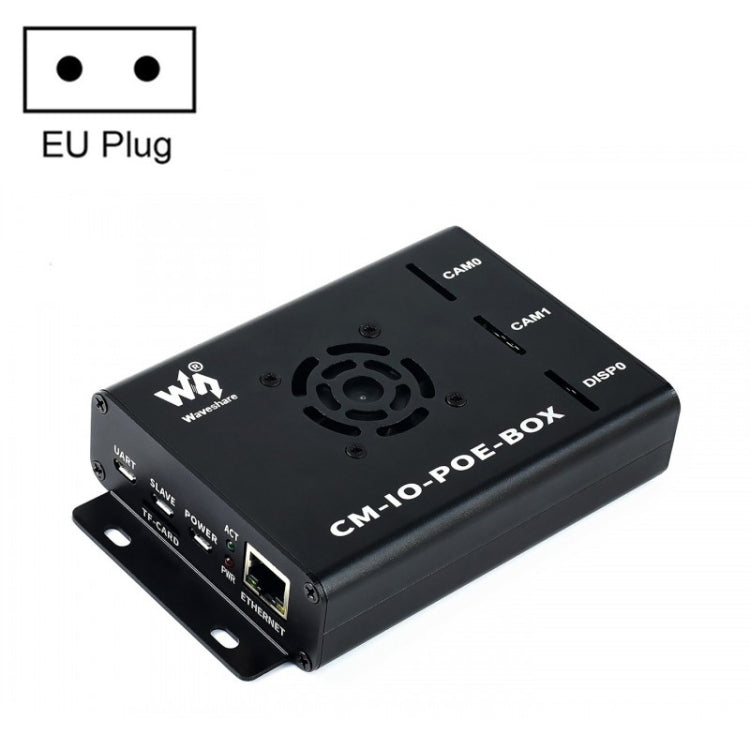

Waveshare Minicomputer for Raspberry Pi CM
€55,12
Disponibile
Characteristics The Compute Module PoE board is a development board that can connect a Raspberry Pi compute module and utilize the resources of Pi more flexibly. With PoE (Power over Ethernet) function and integrated versatile...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Characteristics
The Compute Module PoE board is a development board that can connect a Raspberry Pi compute module and utilize the resources of Pi more flexibly. With PoE (Power over Ethernet) function and integrated versatile peripheral interfaces, it is suitable for evaluating Raspberry Pi compute module, also it is an ideal choice for end products.
1. Raspberry Pi GPIO header, for connecting various types of Raspberry Pi HATs.
2. 10/100M Ethernet port with auto-negotiation, with PoE enabled.
3. 4 USB ports, allowing you to connect more USB devices.
4. 2 CSI camera interfaces.
5. Built-in HDMI/DSI interfaces for connecting displays.
6. Built-in USB TO UART, for serial debugging.
7. Cooling fan interface, auto run when power on Or controlled by IO pin.
8. Adopt isolated SMPS (switching mode power supply).
Specifications
1. Power: Micro USB port / PoE Ethernet port
2. PoE power input: 37V ~ 57V DC in
3. PoE power output: DC output 5V 2.5A
4. Operating temperature: -25 degrees C ~ 80 degrees C
5. Network standard: 802.3af PoE standard
6. Dimensions: 144mm x 88mm
7. Mounting hole size: 3.2mm
The Compute Module PoE board is a development board that can connect a Raspberry Pi compute module and utilize the resources of Pi more flexibly. With PoE (Power over Ethernet) function and integrated versatile peripheral interfaces, it is suitable for evaluating Raspberry Pi compute module, also it is an ideal choice for end products.
1. Raspberry Pi GPIO header, for connecting various types of Raspberry Pi HATs.
2. 10/100M Ethernet port with auto-negotiation, with PoE enabled.
3. 4 USB ports, allowing you to connect more USB devices.
4. 2 CSI camera interfaces.
5. Built-in HDMI/DSI interfaces for connecting displays.
6. Built-in USB TO UART, for serial debugging.
7. Cooling fan interface, auto run when power on Or controlled by IO pin.
8. Adopt isolated SMPS (switching mode power supply).
Specifications
1. Power: Micro USB port / PoE Ethernet port
2. PoE power input: 37V ~ 57V DC in
3. PoE power output: DC output 5V 2.5A
4. Operating temperature: -25 degrees C ~ 80 degrees C
5. Network standard: 802.3af PoE standard
6. Dimensions: 144mm x 88mm
7. Mounting hole size: 3.2mm
