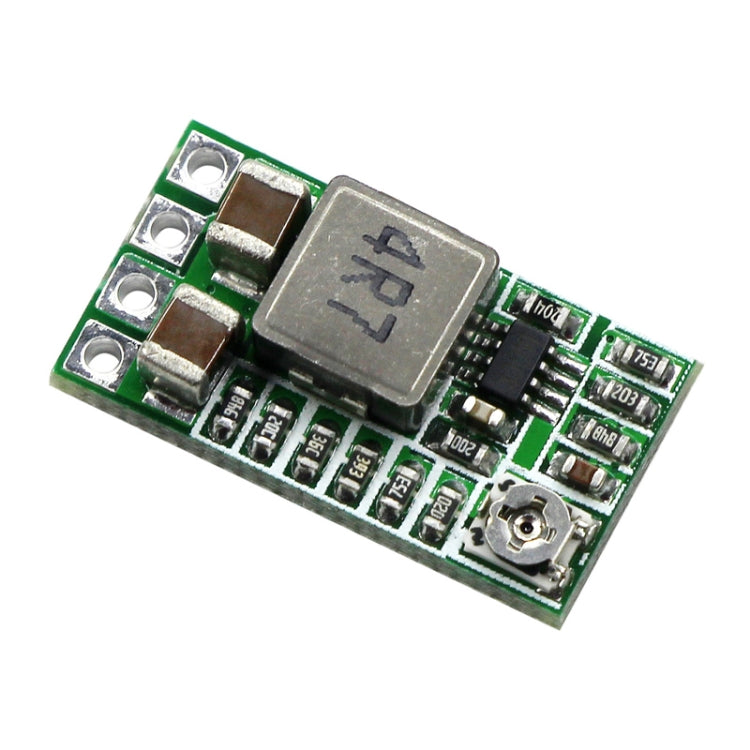

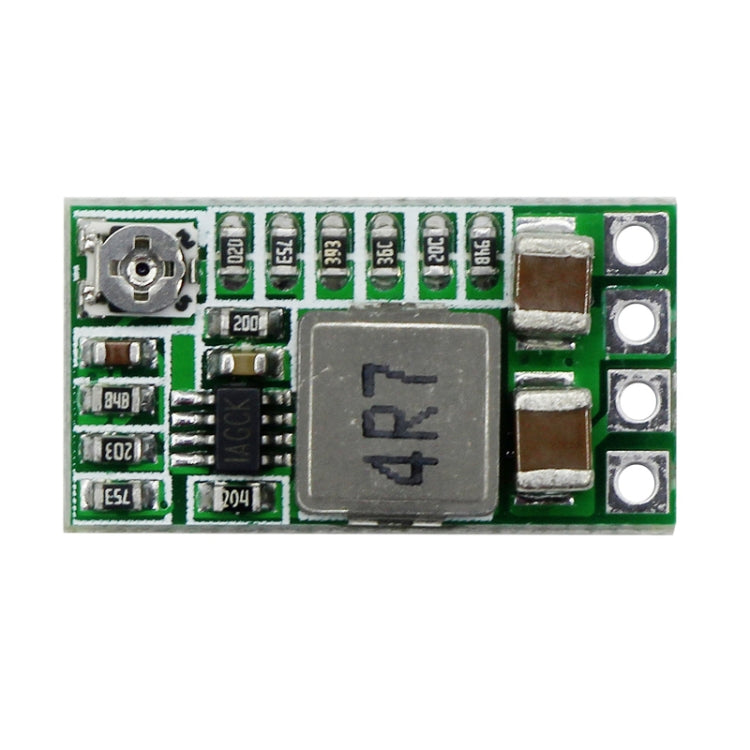

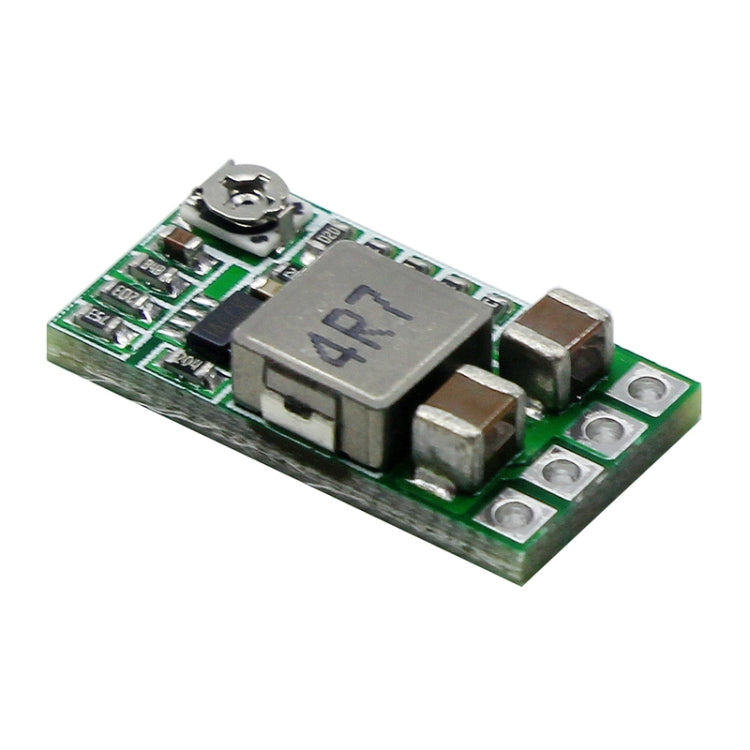

Ultra-small size high efficiency mini DC-DC step-down module 12V-24V to 5V3A for car, Step-Down Module
€0,81
Disponibile
Type: Voltage Regulator 1. Package: step-down module 2. Power: standard 3. Size: 20*11*5mm 4. Input voltage: DC 4.5-24V. 5. Output voltage: Built-in adjustable and fixed output, fixed output voltage on the back 6. Adjustable range...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Type: Voltage Regulator
1. Package: step-down module
2. Power: standard
3. Size: 20*11*5mm
4. Input voltage: DC 4.5-24V.

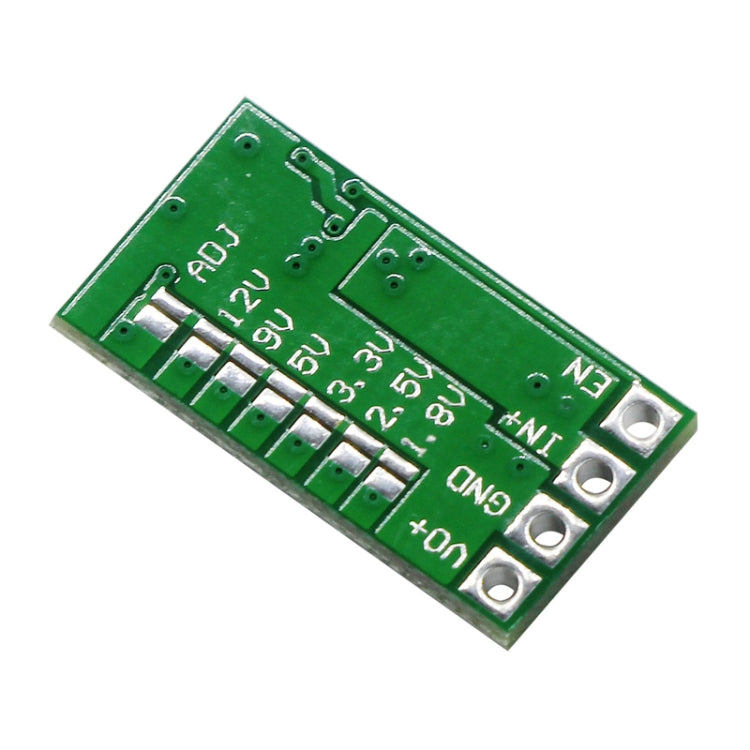

5. Output voltage: Built-in adjustable and fixed output, fixed output voltage on the back
6. Adjustable range (0.8-17V), fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
7. Output current: maximum 3A (pay attention to full load heat dissipation), the actual test input 12V output within 1.5A without special heat dissipation treatment.
8. Conversion efficiency: up to 97.5% (6.5 to 5V 0.7A)
9. Switching frequency: 500KHz
10. Output ripple: 20mV (12V to 5V3A) bandwidth 20M
11. Wiring method: soldering
12. Input method: welding
13. Output method: soldering / pin header
14. Distance between welding holes: 2.54mm
15. Output overvoltage protection: none
16. Temperature rise at full load: 40°C
17. Quiescent current: 0.85 mA
18. Load regulation rate: ± 1%
19. Voltage regulation rate: ±0.5%
20. Dynamic response rate: 5% 200uS
1. Package: step-down module
2. Power: standard
3. Size: 20*11*5mm
4. Input voltage: DC 4.5-24V.
5. Output voltage: Built-in adjustable and fixed output, fixed output voltage on the back
6. Adjustable range (0.8-17V), fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
7. Output current: maximum 3A (pay attention to full load heat dissipation), the actual test input 12V output within 1.5A without special heat dissipation treatment.
8. Conversion efficiency: up to 97.5% (6.5 to 5V 0.7A)
9. Switching frequency: 500KHz
10. Output ripple: 20mV (12V to 5V3A) bandwidth 20M
11. Wiring method: soldering
12. Input method: welding
13. Output method: soldering / pin header
14. Distance between welding holes: 2.54mm
15. Output overvoltage protection: none
16. Temperature rise at full load: 40°C
17. Quiescent current: 0.85 mA
18. Load regulation rate: ± 1%
19. Voltage regulation rate: ±0.5%
20. Dynamic response rate: 5% 200uS
