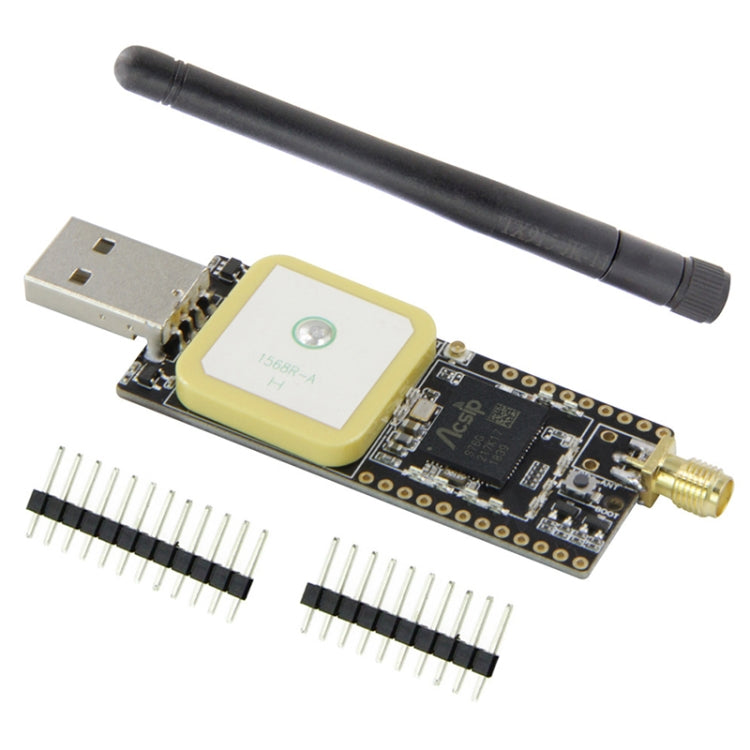

LILYGO T-Motion V1.0 T-Motion 923 Intelligent Development Board S76G LORA STM32 Wireless GNSS Module, T-Motion 923
€33,94
Disponibile
Characteristics: 1. Main Chip: S76G Lora Chip 2. Button: boat 3. Automatic watch: 26 MHz active crystal 4. Antenna model: GPS LORA 868 MHz antenna 5. Temperature: -45-80 degrees C 6. Dimensions: 78.12 x 25.40...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Characteristics:
1. Main Chip: S76G Lora Chip
2. Button: boat
3. Automatic watch: 26 MHz active crystal
4. Antenna model: GPS LORA 868 MHz antenna
5. Temperature: -45-80 degrees C
6. Dimensions: 78.12 x 25.40 x 62.67mm
Microcontroller:
1. STM32L073Z.
2. High performance Cortex-M + 32 bit RISC Core, Working frequency 32mH
3. 192 kilobytes of flash
4. USB2.0 Full Speed A ?? A ?? Device / Host
5. 20 Kbytes SRAM
6. Serial wire debugging (SWD) and Jtag
Chip Lora:
1. Semtech SX1276.
2. Lora modem.
3. Constant RF output 20 dBM vs. V Power supply
4. Programmable bit rate up to 37500bps
5. High sensitivity: starting from -137DBM
6. Leading detection payload loading up to 128 bytes, RF auto detection using high-speed AFC and CAD anti-blocking capability
GNSS Chip:
1. CXD5603GF.
2. GPS / GLONASS receiver
3. Ultra-low power
4. Support SBAS / QZSS
1. Main Chip: S76G Lora Chip
2. Button: boat
3. Automatic watch: 26 MHz active crystal
4. Antenna model: GPS LORA 868 MHz antenna
5. Temperature: -45-80 degrees C
6. Dimensions: 78.12 x 25.40 x 62.67mm
Microcontroller:
1. STM32L073Z.
2. High performance Cortex-M + 32 bit RISC Core, Working frequency 32mH
3. 192 kilobytes of flash
4. USB2.0 Full Speed A ?? A ?? Device / Host
5. 20 Kbytes SRAM
6. Serial wire debugging (SWD) and Jtag
Chip Lora:
1. Semtech SX1276.
2. Lora modem.
3. Constant RF output 20 dBM vs. V Power supply
4. Programmable bit rate up to 37500bps
5. High sensitivity: starting from -137DBM
6. Leading detection payload loading up to 128 bytes, RF auto detection using high-speed AFC and CAD anti-blocking capability
GNSS Chip:
1. CXD5603GF.
2. GPS / GLONASS receiver
3. Ultra-low power
4. Support SBAS / QZSS
Size:
| package weight |
|
