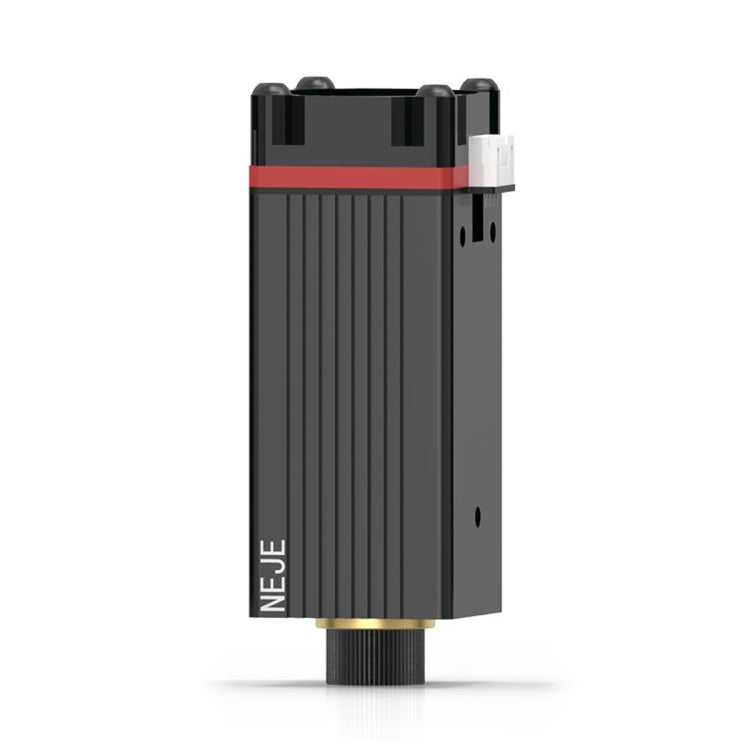

NEJE N30610 2.5W 450nm Laser Engraver Module Kit, N30610
€69,73
Disponibile
1. Can be used for laser cutting machine, laser engraving machine, CNC, DIY laser. 2. Original laser diodes, good quality, ensure the durability! 3. Built-in driver board, 20mm threaded copper core with thermal grease compound,...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
1. Can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.
2. Original laser diodes, good quality, ensure the durability!
3. Built-in driver board, 20mm threaded copper core with thermal grease compound, temperature sensor, NEJE factory 48 hours 100% energy aging test, Ensure a long working time!
4. Clear focus lens, no stray light, adjustable focal length.
5. Can carve MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum, etc. (Not suitable for iron or other metal).
Specification
1. Heat sink material: aviation aluminum + brass shell
2. Luminous color: blue
3. Laser diode: 5.6mm laser diode
4. LD current: 1.6A
5. Section size: 30mm x 30mm
6. Cooling mode: 20mm copper core + heat sink groove + silicone thermal grease + 10000rpm cooling fan
7. Dimensions: 60 x 30 x 30 mm
8. Adapter output voltage: DC 12V 2A
9. Can engrave: MDF/balsa/paper/wood/fabric/plastic/leather/plywood/foam paper/anodized aluminum
10. Cannot engrave: metal/glass/stone/ceramic/PCB/stainless steel/reflective material/transparent material
Technical parameters
1. Module input: 10W
2. Laser output power: 2.5W (2500mW)
3. Wavelength: 445-450nm
4. Beam shape: point (focusable)
5. Voltage: DC 12V
6. TTL and PWM modulation: YES, compatible with both TTL and PWM modulation
7. Input voltage: DC12V
8. PWM/TTL input: DC3.3V-12V
9. Input interface: PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL), 2Pin+2Pin (+,-) + (PWM/TTL,-)
Package Included
- 1 x 2.5W laser engraving module
- 1 x 4-pin sports cable
- 2 screws
- 2 x ABS rear cushion
- 1 L-shaped key
