Prodotto selezionato

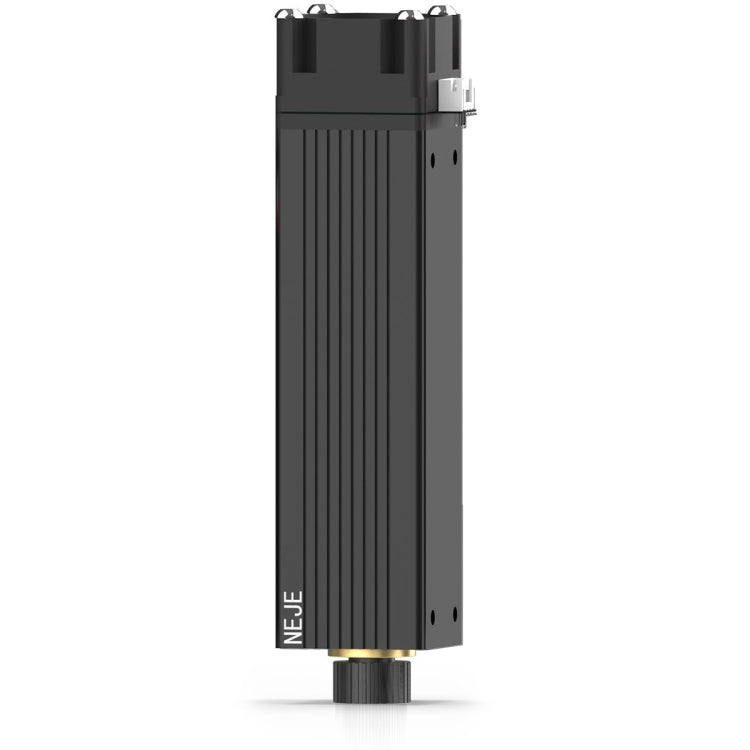

NEJE A30130 7.5W 450nm Laser Engraver Module Kit, A30130
€133,20
Disponibile
1. Module size: 30x30x100mm 2. Weight: 227 g 3. Fan speed: 15000 RPM (double ball bearing) 4. Interface: PH2.0 4 pin 5. Unit design: integrated 6. Input: 12V3A 7. Optical power: 7.5W 8. Wavelength: 450nm...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
1. Module size: 30x30x100mm
2. Weight: 227 g
3. Fan speed: 15000 RPM (double ball bearing)
4. Interface: PH2.0 4 pin
5. Unit design: integrated
6. Input: 12V3A
7. Optical power: 7.5W
8. Wavelength: 450nm
9. Number of diodes: 1
10. Minimum focus point size: 0.04x0.04mm
11. Temperature detection: YES
12. Power regulation method: duty cycle PWM
13. PWM input: 3.3-12V,0-20KHz
14. Maximum cutting carving depth: 18 mm
15. Cutting speed (3mm plywood, with airasist, transparent edge): 120mm/min 100% power from 1 pass
16. Packing list
- 1 laser module
- 1 x Sliding card slot
- 1 wrench
- 1 small L-shaped wrench
- 1 interface adapter card
- 1 x 4-pin laser line
- 1 x 3-pin 2.54 interface output cable
- 1 x 2-pin TTL control line
2. Weight: 227 g
3. Fan speed: 15000 RPM (double ball bearing)
4. Interface: PH2.0 4 pin
5. Unit design: integrated
6. Input: 12V3A
7. Optical power: 7.5W
8. Wavelength: 450nm
9. Number of diodes: 1
10. Minimum focus point size: 0.04x0.04mm
11. Temperature detection: YES
12. Power regulation method: duty cycle PWM
13. PWM input: 3.3-12V,0-20KHz
14. Maximum cutting carving depth: 18 mm
15. Cutting speed (3mm plywood, with airasist, transparent edge): 120mm/min 100% power from 1 pass
16. Packing list
- 1 laser module
- 1 x Sliding card slot
- 1 wrench
- 1 small L-shaped wrench
- 1 interface adapter card
- 1 x 4-pin laser line
- 1 x 3-pin 2.54 interface output cable
- 1 x 2-pin TTL control line
