Prodotto selezionato

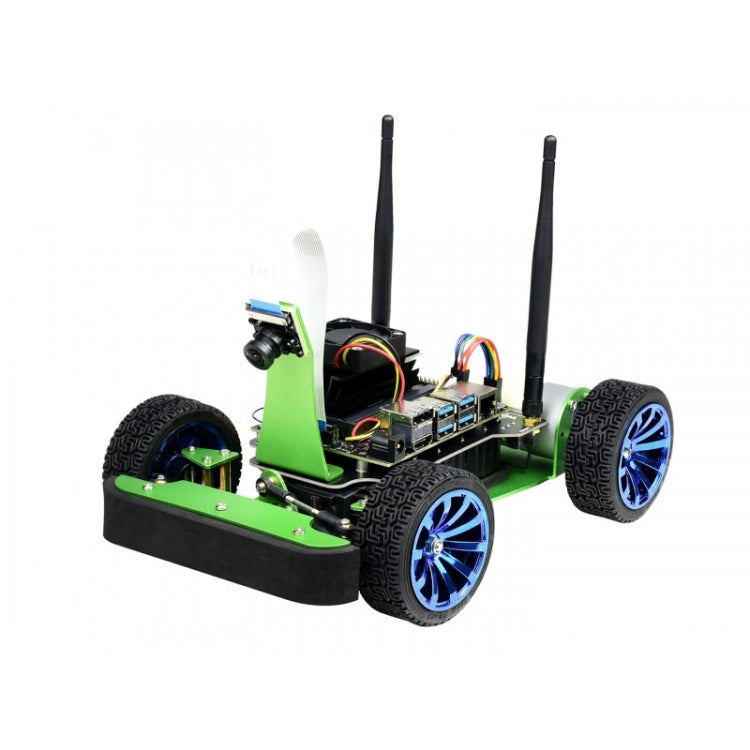

Waveshare JetRacer AI Kit, AI racing robot powered by Jetson Nano, JetRacer AI Kit
€531,86
Disponibile
Product information This is an AI Racing Robot kit based on the Jetson Nano Developer Kit. It supports deep learning, automatic line, autonomous driving and so on. Specifications 1. Camera: 8MP HD resolution, 160 degree...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Product information
This is an AI Racing Robot kit based on the Jetson Nano Developer Kit. It supports deep learning, automatic line, autonomous driving and so on.
Specifications
1. Camera: 8MP HD resolution, 160 degree FOV wide angle camera
2. OLED: 0.91 inch 128 x 32 pixels
3.Wireless: AC8265
4. Drive type: Ackerman steering / rear-wheel drive with double gear motor
5. Power supply: 12.6V, 3 x 18650 batteries (connected in series). Note: 18650 batteries are NOT included.
6. Engine:
- 37-520 DC gear motor
- Reduction rate 1:10
- Idle speed 740 rpm
7. Frame: Aluminum alloy frame
8. Program library: JetRacer, DonkeyCar
9. Tip: Competition level; Programming experience required
List of packages
2. 2pcs EVA Felt Mat
3. 3D printed engine cover
4. JetRacer Expansion Card
5. IMX219-160 Camera
6. Wireless-AC8265
7. Acrylic piece
8. Servo support
9. Metal gear motor 2PCS
10. Tire 4 PCS
11. Coupler 2PCS
12. MG996R Servo Motor
13. MG996R Servowheel
14. Steering knuckle 2PCS
15. Ball bearing 4PCS
16. M3 plastic ball joint 4pcs
17. M3 pull rod 2PCS
18. 12.6V charger + EU head
19. Wireless Gamepad
20. 6 pin cable
21. Key 2 PCS
22. Screwdriver 2 PCS
23. Mini cross wrench sleeve
24. Cooling fan 4010
25. Micro SD card reader
26. Screw pack
27. Track Map
This is an AI Racing Robot kit based on the Jetson Nano Developer Kit. It supports deep learning, automatic line, autonomous driving and so on.
Specifications
1. Camera: 8MP HD resolution, 160 degree FOV wide angle camera
2. OLED: 0.91 inch 128 x 32 pixels
3.Wireless: AC8265
4. Drive type: Ackerman steering / rear-wheel drive with double gear motor
5. Power supply: 12.6V, 3 x 18650 batteries (connected in series). Note: 18650 batteries are NOT included.
6. Engine:
- 37-520 DC gear motor
- Reduction rate 1:10
- Idle speed 740 rpm
7. Frame: Aluminum alloy frame
8. Program library: JetRacer, DonkeyCar
9. Tip: Competition level; Programming experience required
List of packages
2. 2pcs EVA Felt Mat
3. 3D printed engine cover
4. JetRacer Expansion Card
5. IMX219-160 Camera
6. Wireless-AC8265
7. Acrylic piece
8. Servo support
9. Metal gear motor 2PCS
10. Tire 4 PCS
11. Coupler 2PCS
12. MG996R Servo Motor
13. MG996R Servowheel
14. Steering knuckle 2PCS
15. Ball bearing 4PCS
16. M3 plastic ball joint 4pcs
17. M3 pull rod 2PCS
18. 12.6V charger + EU head
19. Wireless Gamepad
20. 6 pin cable
21. Key 2 PCS
22. Screwdriver 2 PCS
23. Mini cross wrench sleeve
24. Cooling fan 4010
25. Micro SD card reader
26. Screw pack
27. Track Map
Size:
| package weight |
|
