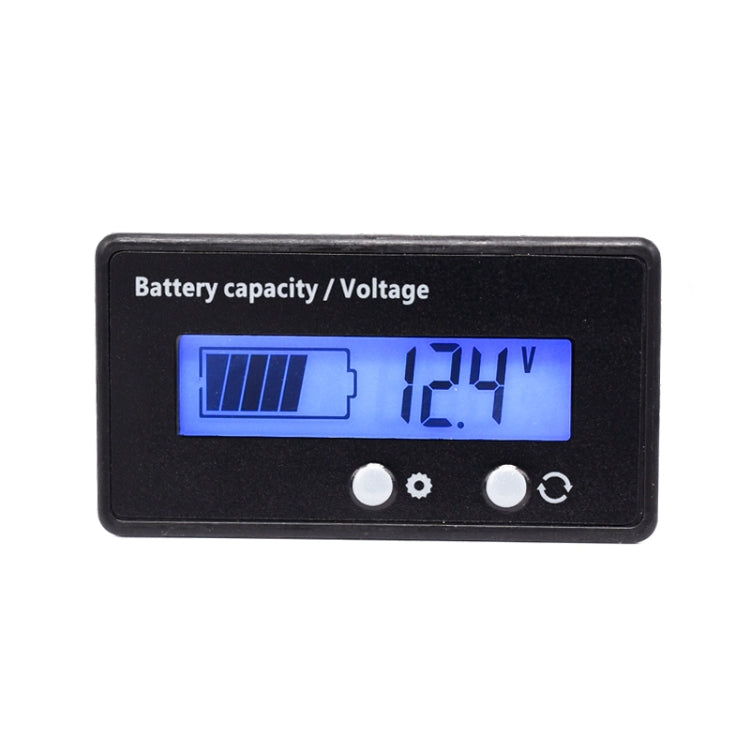

H6133 12V-84V Lead Acid Battery Voltage Tester Percent Voltmeter Lithium Battery Status Indicator, 12V-84V Blue Light, 12V-84V Green Light, 12V-84V White Light

Features B>
1. The product has reverse connection protection, it will not burn if it is reversed
2. The lead acid battery lithium battery is universal and can be adjusted through the buttons on the back
3. It can display battery symbol + percentage or battery symbol + voltmeter, the two display modes can be switched at will
4. The product has only two wires, simple wiring, equipped with a wiring socket, and the wire length is 300mm
5. All battery specifications and function selections are set through the buttons on the back, no electrical soldering is required

Specifications B>
1. Working voltage: 10-100V
2. Working current: less than 5mA
3. Sleep Current: 12UA (test 12V)
4. Display: LCD with backlight
5. Suitable for: 3-27 x 3.7V Lithium Batteries; 12V, 24V, 36V, 48V, 60V, 72V, 84V Lead Acid Batteries
6. Dimensions: 61.3 x 33.3 x 13.5 mm
7. Mounting hole size: 58.5 x 28.5mm
8. Wire length: 30cm
