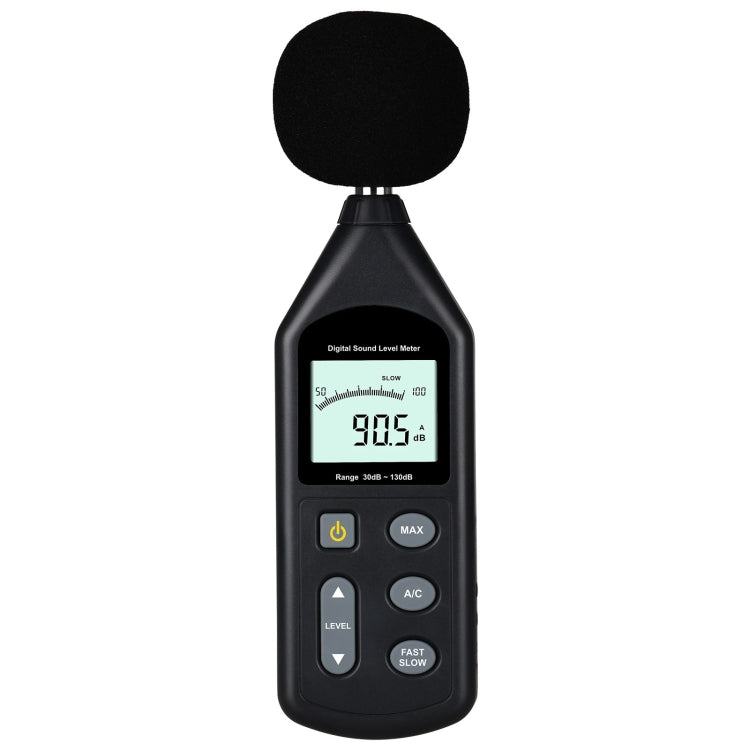

Wintact WT1357 digital sound level meter, range: 30 dB ~ 130 dB, WT1357
€21,25
Disponibile
Features B> 1. Automatic calibration to ensure accuracy. 2. Automatic Linear Compensation: This advanced software program improves accuracy by correcting the sensor's non-linear accuracy. 3. Quickly adjust the speed/thickness of the sound and quickly call...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Features B>
1. Automatic calibration to ensure accuracy.
2. Automatic Linear Compensation: This advanced software program improves accuracy by correcting the sensor's non-linear accuracy.
3. Quickly adjust the speed/thickness of the sound and quickly call up the stored data
4. Mating status indication: Observe the mating icon to check whether the joint is completed.
5. It has 12 thickness measurement storage means and call functions to facilitate altitude operation or field operation.
6. Measuring the speed of sound.
7. The sound speed of 12 gears of different materials is adjustable.
8. Setting the thickness alarm.
9. LCD backlight display.
10. Low battery indication and auto power off.
11. Metric / Imperial selection.
Specifications B>
1. Accuracy: 1.5 dB (under reference conditions)
2. Measurement level: 30-130DB(A) / 35-130DB(c)
3. Frequency range: 31.5Hz to 8.5kHz
4. Linearity range: 50dB / 100dB
5. Digital display: 5 digits
6. Resolution: 0.1dB
7. Bar graph: 50 DB (Scale to 1 DB STEP FOR MONITORING MONITORING Display of current sound pressure level)
8. Overload indication: over / under
9. Frequency weighting: A and C
10. Level ranges: 30-80DB, 50-100DB, 60-110DB, 80-130DB
11. Auto calibration time: 3SEC
12. Sampling rate: 20 times/seconds
13. AC signal output: 0.707vrms / full bar graph, output impedance is about 600ohm
14. DC signal output: 10MV/DB, output impedance is about 100Ohm
15. Dynamic characteristic: fast (high speed) / slow (low speed)
16. Power supply: 4x AA 1.5V battery or DC 6V 100MA (not included)
1. Automatic calibration to ensure accuracy.
2. Automatic Linear Compensation: This advanced software program improves accuracy by correcting the sensor's non-linear accuracy.
3. Quickly adjust the speed/thickness of the sound and quickly call up the stored data
4. Mating status indication: Observe the mating icon to check whether the joint is completed.
5. It has 12 thickness measurement storage means and call functions to facilitate altitude operation or field operation.
6. Measuring the speed of sound.
7. The sound speed of 12 gears of different materials is adjustable.
8. Setting the thickness alarm.
9. LCD backlight display.
10. Low battery indication and auto power off.
11. Metric / Imperial selection.
Specifications B>
1. Accuracy: 1.5 dB (under reference conditions)
2. Measurement level: 30-130DB(A) / 35-130DB(c)
3. Frequency range: 31.5Hz to 8.5kHz
4. Linearity range: 50dB / 100dB
5. Digital display: 5 digits
6. Resolution: 0.1dB
7. Bar graph: 50 DB (Scale to 1 DB STEP FOR MONITORING MONITORING Display of current sound pressure level)
8. Overload indication: over / under
9. Frequency weighting: A and C
10. Level ranges: 30-80DB, 50-100DB, 60-110DB, 80-130DB
11. Auto calibration time: 3SEC
12. Sampling rate: 20 times/seconds
13. AC signal output: 0.707vrms / full bar graph, output impedance is about 600ohm
14. DC signal output: 10MV/DB, output impedance is about 100Ohm
15. Dynamic characteristic: fast (high speed) / slow (low speed)
16. Power supply: 4x AA 1.5V battery or DC 6V 100MA (not included)
Size:
| package weight |
|
| Weight of each package | 0.57kgs / 1.25lb |
| One size fits all product | 28cm * 20cm * 7cm / 11.02inch * 7.87inch * 2.76inch |
| Quantity of a box | 20 |
| Weight of a box | 12.00kgs / 26.46lb |
| Dimensions of a box | 70cm * 44cm * 32cm / 27.56inch * 17.32inch * 12.6inch |
| Goods counter |
20GP: 270 Box * 20 Piece = 5400 Piece 40HQ: 628 Box * 20 Piece = 12560 Piece |
