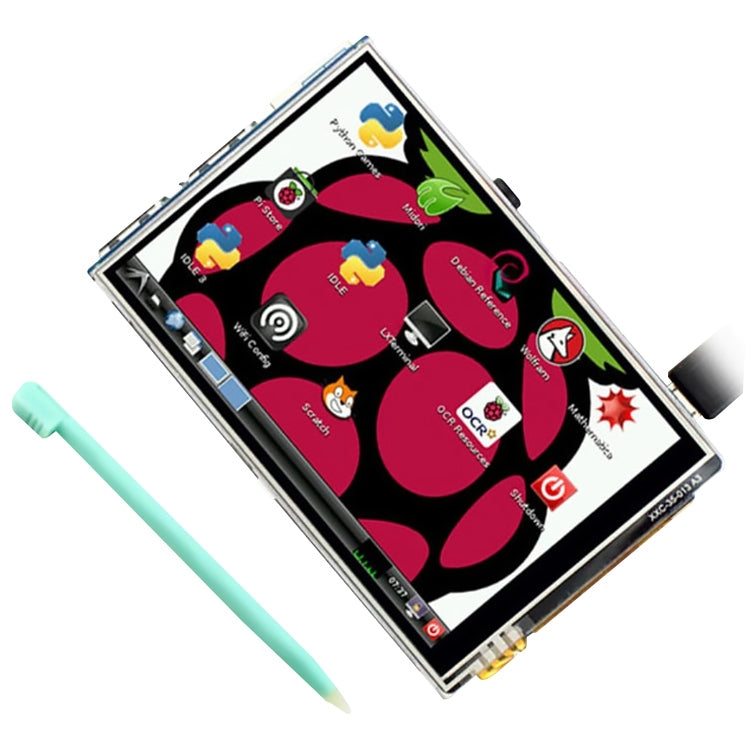

3.5 inch TFT LCD Touch Screen Display Touch Shield with Stylus Pen for Raspberry Pi
€14,31
Disponibile
Product information This 3.5 inch touch screen module is specially designed for Raspberry Pi, using the latest Linux Core system (vision 3.18.9), the latest Raspberry Pi official UI desktop file system and the fastest SPI...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Product information
This 3.5 inch touch screen module is specially designed for Raspberry Pi, using the latest Linux Core system (vision 3.18.9), the latest Raspberry Pi official UI desktop file system and the fastest SPI data transmission, an ideal alternative solution for HDMI monitor and convenient Men-Machine interface for Raspberry Pi, combined with portable power supply, DIY anywhere and anytime.
Characteristics
1. LCD interface: SPI.
2. Touch screen controller: XPT2046.
3. Backlight: LED.
4. LCD type: TFT.
5. Resolution: 320*480 DOTS.
6. Central system: vision 3.18.9.
7. SPI speed: 32 MHz.
8. Color Level Index: 65536.
9. Power consumption / Backlight current: TBD.
10. Support Raspbian system, allows the system to:
- Play video (support multiple formats, MP4 and so on).
- Take photos by touching (up to 17 camera modes).
- Support software keyboard (interaction with the system without keyboard/mouse).
- The support driver is installed automatically.
This 3.5 inch touch screen module is specially designed for Raspberry Pi, using the latest Linux Core system (vision 3.18.9), the latest Raspberry Pi official UI desktop file system and the fastest SPI data transmission, an ideal alternative solution for HDMI monitor and convenient Men-Machine interface for Raspberry Pi, combined with portable power supply, DIY anywhere and anytime.
Characteristics
1. LCD interface: SPI.
2. Touch screen controller: XPT2046.
3. Backlight: LED.
4. LCD type: TFT.
5. Resolution: 320*480 DOTS.
6. Central system: vision 3.18.9.
7. SPI speed: 32 MHz.
8. Color Level Index: 65536.
9. Power consumption / Backlight current: TBD.
10. Support Raspbian system, allows the system to:
- Play video (support multiple formats, MP4 and so on).
- Take photos by touching (up to 17 camera modes).
- Support software keyboard (interaction with the system without keyboard/mouse).
- The support driver is installed automatically.
Size:
| General |
|
| Package Include |
|
| package weight |
|
