Prodotto selezionato
Waveshare Industrial USB to RS485 Converter, 17286
€12,43
Disponibile
Product Information B> Overview 1. This is an industrial USB to RS485 converter with original FT232RL and SP485Een inside. It has built-in protection circuits such as lightning fuse, resettable, ESD protection, and TV diode, etc....
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Product Information B>
Overview
1. This is an industrial USB to RS485 converter with original FT232RL and SP485Een inside. It has built-in protection circuits such as lightning fuse, resettable, ESD protection, and TV diode, etc. It is quite small in size.
2. USB to RS485 is very easy to use, it enables automatic reception. Due to its fast communication, stability, reliability and safety, it is an ideal choice for industrial control equipment and/or applications with high communication requirement.
Characteristics
1. USB to RS485 communication
2. Adopt original FT232RL and SP485Een, fast, stable and reliable communication, better compatibility
3. On-board TV (transient voltage suppressor), effectively suppress the surge voltage and transient peak voltage in the circuit, lightning and anti-electrostatic
4. Onboard self-recovery fuses and protection diodes, ensures stable current/voltage outputs, provides over-current/over-voltage protection, improves shock resistance
5. 3 LEDs to indicate power and transceiver status
Specifications
1. Product type: industrial converter
2. Baud rate: 300-921600bps
3. Host port: USB
4. Device port: RS485
5. USB:
- Operating voltage: 5V
- Connector: USB-A
- Protection: 200mA self-recovery fuse, ESD protection
- Transmission distance: about 5m
6. RS485:

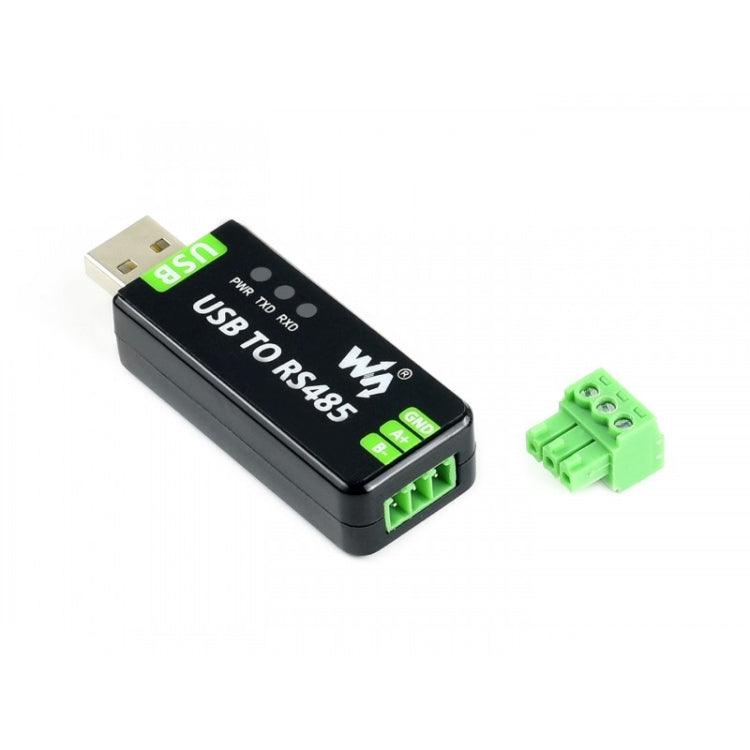

- Connector: screw terminal
- Pins: A+, B-, GND
- Direction control: automatic hardware control
- Protection: 600W Lightningproof and Surge-Suppress, 15KV ESD Protection (120R balancing resistor on board)
- Transmission distance: about 1200m (low rate)
- Transmission mode: point-to-multipoint (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)

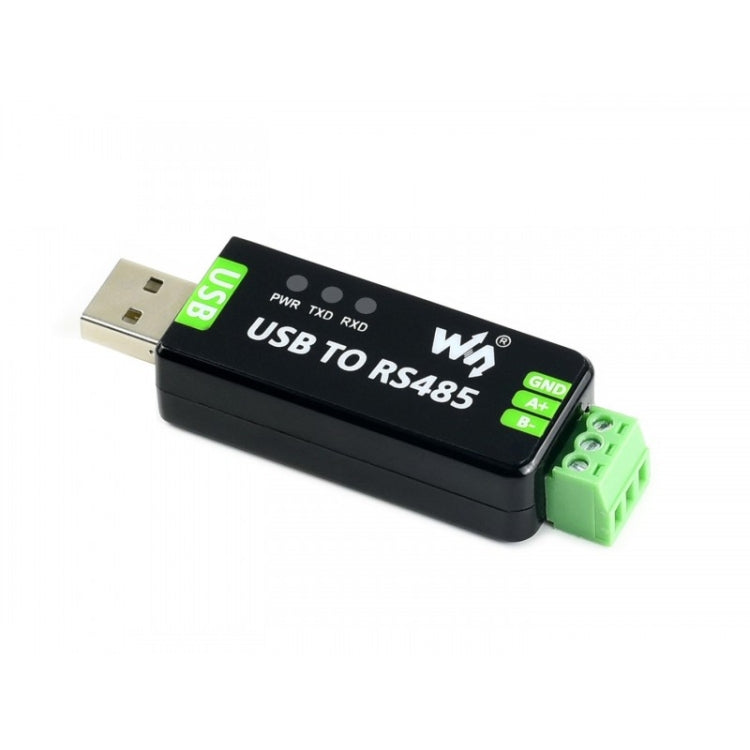

7. LED indicators:
- PWR: Red power indicator, lights up when USB connection and voltage are detected
- TXD: Red TX indicator, lights up when the USB port sends data
- RXD: RED RX indicator, lights up when the device ports are sending data back
8. Operating environment:
- Temperature: -15 ~ 70 degrees
- Humidity: 5%RH ~ 95%RH
9. Operating System: Mac, Linux, Android, WinCE, Windows 10/8.1/8/7/XP
List of packages B>
1. USB to RS485 x 1
2. USB-A Male to Female Cable X 1
3. Screwdriver x 1
42cm * 22cm * 22cm / 16.54inch * 8.66inch * 8.66inch
Overview
1. This is an industrial USB to RS485 converter with original FT232RL and SP485Een inside. It has built-in protection circuits such as lightning fuse, resettable, ESD protection, and TV diode, etc. It is quite small in size.
2. USB to RS485 is very easy to use, it enables automatic reception. Due to its fast communication, stability, reliability and safety, it is an ideal choice for industrial control equipment and/or applications with high communication requirement.
Characteristics
1. USB to RS485 communication
2. Adopt original FT232RL and SP485Een, fast, stable and reliable communication, better compatibility
3. On-board TV (transient voltage suppressor), effectively suppress the surge voltage and transient peak voltage in the circuit, lightning and anti-electrostatic
4. Onboard self-recovery fuses and protection diodes, ensures stable current/voltage outputs, provides over-current/over-voltage protection, improves shock resistance
5. 3 LEDs to indicate power and transceiver status
Specifications
1. Product type: industrial converter
2. Baud rate: 300-921600bps
3. Host port: USB
4. Device port: RS485
5. USB:
- Operating voltage: 5V
- Connector: USB-A
- Protection: 200mA self-recovery fuse, ESD protection
- Transmission distance: about 5m
6. RS485:
- Connector: screw terminal
- Pins: A+, B-, GND
- Direction control: automatic hardware control
- Protection: 600W Lightningproof and Surge-Suppress, 15KV ESD Protection (120R balancing resistor on board)
- Transmission distance: about 1200m (low rate)
- Transmission mode: point-to-multipoint (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
7. LED indicators:
- PWR: Red power indicator, lights up when USB connection and voltage are detected
- TXD: Red TX indicator, lights up when the USB port sends data
- RXD: RED RX indicator, lights up when the device ports are sending data back
8. Operating environment:
- Temperature: -15 ~ 70 degrees
- Humidity: 5%RH ~ 95%RH
9. Operating System: Mac, Linux, Android, WinCE, Windows 10/8.1/8/7/XP
List of packages B>
1. USB to RS485 x 1
2. USB-A Male to Female Cable X 1
3. Screwdriver x 1

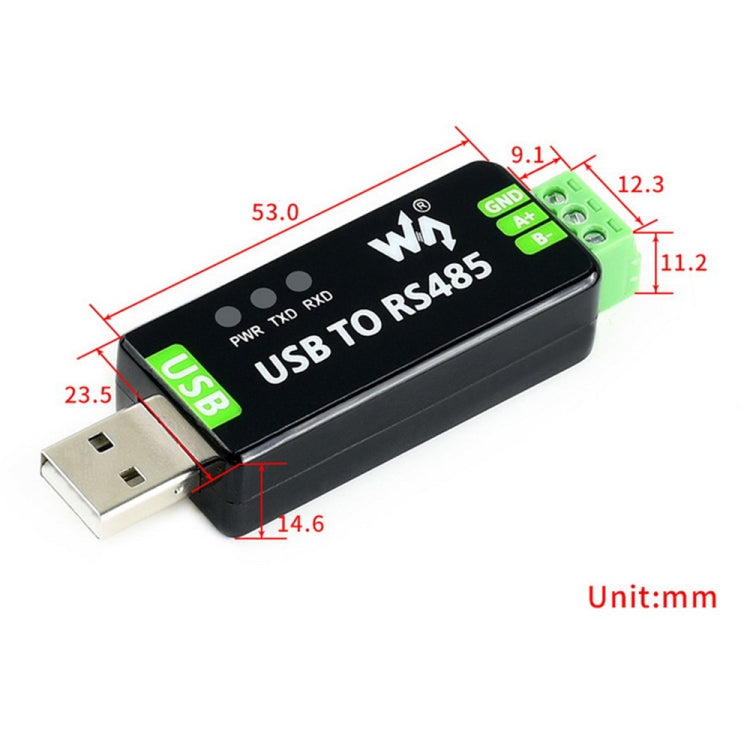

Size:
| package weight |
|
