Prodotto selezionato

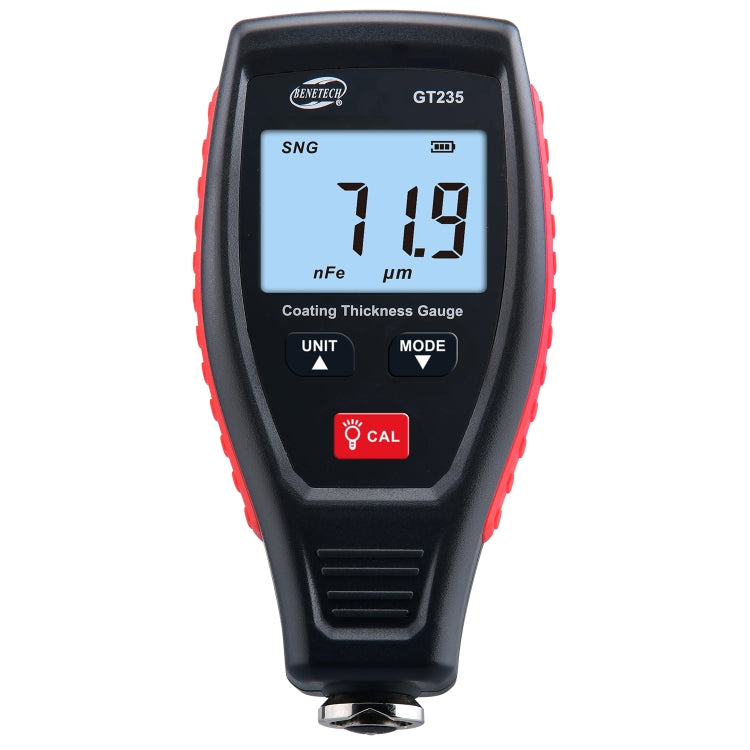

BENETECH GT235 Iron-aluminum bivalent paint film thickness gauge, GT235
€39,84
Disponibile
Features B> 1. Measure the thickness of the non-magnetic coating on the magnetic metal substrate. 2. Measure the thickness of the non-metallic coating on the non-magnetic metal substrate. 3. Automatic identification of non-magnetic metal substrate...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Features B>
1. Measure the thickness of the non-magnetic coating on the magnetic metal substrate.
2. Measure the thickness of the non-metallic coating on the non-magnetic metal substrate.
3. Automatic identification of non-magnetic metal substrate and magnetic metal substrate.
4. Single measurement, continuous measurement and differential measurement available.
5. Zero point calibration, offset calibration and basic calibration available.
6. Optional metric and imperial units of measurement.
7. LCD backlight.
8. Automatic shutdown.
Specifications B>
1. The measuring range: 0 ~ 1800:00 / 70.8MI / 18mm
2. Resolution: (0.1 UM (less than 100UM), PM (PM (greater than or equal to 100pm) 0.1mil 0.001mm Less ThoO r equal to 150um, +/- 5um
3. Measurement error: greater than 150um, +/- (3%h+1pm)
4. The lower limit diameter of the magnetic matrix: 12mm
5. The lower limit thickness of the magnetic matrix: 0.5mm
6. The lower limit radius of curvature of the magnetic convex array: 2mm
7. The lower limit curvature radius of the magnetic concave substrate: 11mm
8. The lower limit diameter of the non-magnetic matrix: 50mn
9. The lower limit thickness of non-magnetic substrate: 0.5mm
10. Operating temperature: 20 ~ + 40 degrees C (it is recommended to use the working temperature range in different environments, especially when the temperature difference is large, it must be recalibrated before use)
11. Working humidity range: 10~95%RH
12. 1.5V AAA Alkaline Battery x 2 (not included)
13. Size: 62 x 27 x 121.5mm
14. Weight: 105.03G
1. Measure the thickness of the non-magnetic coating on the magnetic metal substrate.
2. Measure the thickness of the non-metallic coating on the non-magnetic metal substrate.
3. Automatic identification of non-magnetic metal substrate and magnetic metal substrate.
4. Single measurement, continuous measurement and differential measurement available.
5. Zero point calibration, offset calibration and basic calibration available.
6. Optional metric and imperial units of measurement.
7. LCD backlight.
8. Automatic shutdown.
Specifications B>
1. The measuring range: 0 ~ 1800:00 / 70.8MI / 18mm
2. Resolution: (0.1 UM (less than 100UM), PM (PM (greater than or equal to 100pm) 0.1mil 0.001mm Less ThoO r equal to 150um, +/- 5um
3. Measurement error: greater than 150um, +/- (3%h+1pm)
4. The lower limit diameter of the magnetic matrix: 12mm
5. The lower limit thickness of the magnetic matrix: 0.5mm
6. The lower limit radius of curvature of the magnetic convex array: 2mm
7. The lower limit curvature radius of the magnetic concave substrate: 11mm
8. The lower limit diameter of the non-magnetic matrix: 50mn
9. The lower limit thickness of non-magnetic substrate: 0.5mm
10. Operating temperature: 20 ~ + 40 degrees C (it is recommended to use the working temperature range in different environments, especially when the temperature difference is large, it must be recalibrated before use)
11. Working humidity range: 10~95%RH
12. 1.5V AAA Alkaline Battery x 2 (not included)
13. Size: 62 x 27 x 121.5mm
14. Weight: 105.03G
