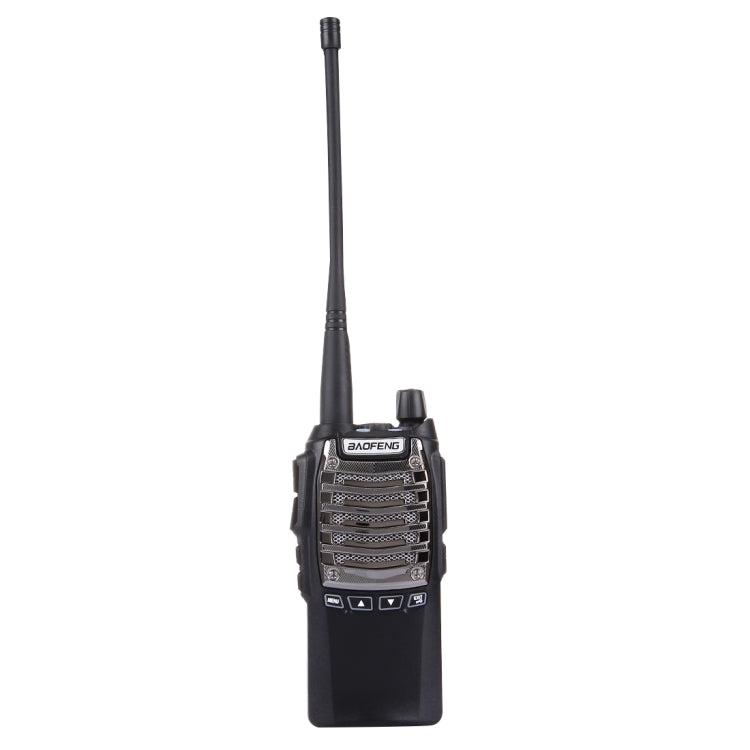

BAOFENG UV-8D Professional Dual Band Walkie Talkie FM Transmitter with Dual PTT Key, UV-8D

BAOFENG UV-8D Professional Dual Band Walkie Talkie FM Transmitter with Dual PTT Key, UV-8D

Name: BAOFENG UV-8D Professional Dual Band Walkie Talkie FM Transmitter with Dual PTT Key, UV-8D
Brand: 16e88.com
SKU: KT0100
Price: 22.89 EUR
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: KT0100

Available:

Only 999999 items in stock

999999 items in stock

In stock

Pre-order

Out of stock

€22,89

Description

1. Lightweight design, compact structure, easy to carry
2. Emergency alarm call, receiving an alarm call
3. Clear sound quality
4. Noise reduction circuit
5. Strong and durable walkie talkie, adopts ABS PC material
6. High capacity lithium battery
7. Bright flashlight illumination
8. Working mode: same simplex working frequency or different simplex working frequency

Size:

General

Model

UV-8D

Material

PC ABS

Frequency Range

400MHz-480MHz

Channel

16

Frequency Stability

2.5ppm

Frequency Step

12.5kHz, 25kHz

Antenna Impedance

50 ohms

Voltage

7.4V

Battery Types

Lithium Ion Battery

Battery Capacity

2800mAh

Operation Mode

Simplex

Working Temperature

-20C to 50C

Max Power

8W

Walkie Distance (Open)

5-10km

Walkie Distance (Barrier)

3-5km

Size	13.563.5cm

Weight

192g (with battery)

Transmitter Parameters

RF Power

5W/1W

Spurious Emission

=< 7.5uW

Modulation Types

FM, F3E

SNR	>= -45dB(W), >= -40dB(N)

CTSCC/DCS Frequency Deviation

0.7+/-0.1KHz, 0.4+/-0.1KHz

Modulation Sensitivity

(N)

Transmitting Current

8-12mV

Receiver Parameters

Stability

-122dBm (at 12dB Sinad)

Intermodulation

>= 65dB(W), >= 60dB(N)

Adjacent Channel Selectivity

>= 65dB(W), >= 60dB(N)

Audio Output

1000mW

Current

=< 380mA

Spurious Response

>= 65dB

Package Include

Package Contents

1 x Walkie Talkie
1 x Rechargeable Battery
1 x Detachable Antenna
1 x Charger Base
1 x Belt clip
1 x Strap
1 x User Manual
1 x Charger

package weight

Weight of each package

0.56kgs / 1.23lb

One size fits all product

26cm * 21cm * 6cm / 10.24inch * 8.27inch * 2.36inch

Quantity of a box

20

Weight of a box

11.80kgs / 26.01lb

Dimensions of a box

54cm * 44cm * 32cm / 21.26inch * 17.32inch * 12.6inch

Goods counter

20GP: 350 Box * 20 Piece = 7000 Piece
40HQ: 814 Box * 20 Piece = 16280 Piece
