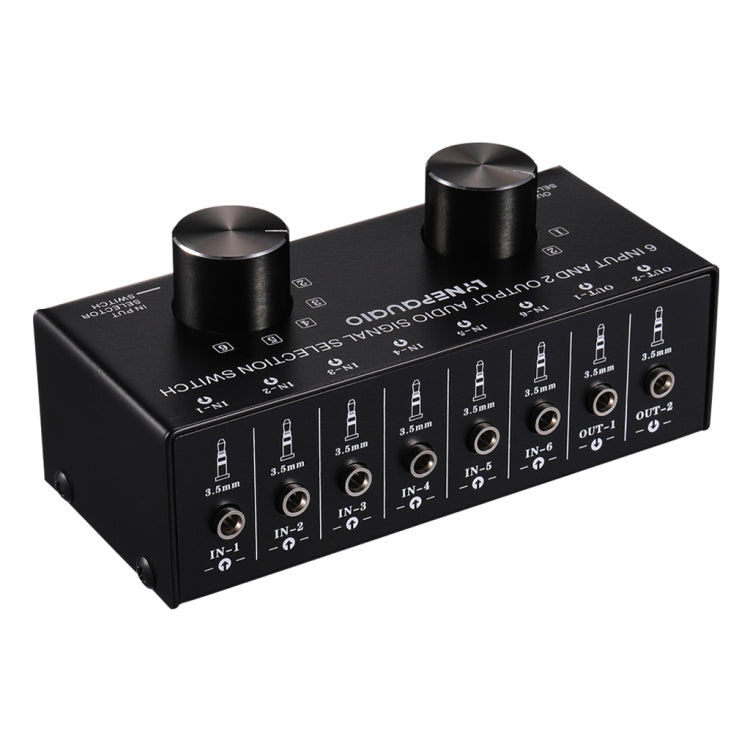

B027 6 input 2 output or 2 input 6 output audio signal source selection switch 3.5mm interface

B027 - 6-in 2-out or 2-in 6-out Audio Signal Source Selector 3.5mm Interface
Product Description:
6-input, 2-out or 2-out stereo audio signal selection switch with RCA port design
The product adopts passive design, direct insertion, and has lossless switched transmission of input and output signals,
The product is mainly used to select and switch between a variety of stereo signal input and output through a common set or multiple sets of equipment, that is, a variety of stereo signal sources of devices, such as TV audio, MP3 player, CD player, video game, mobile phone, tablet, computer, turntable, need to be played on the amplifier or active speakers,
The 6-channel audio signal selection switch solves complicated line connections and disconnections, which seamlessly connects the device's input signal sources to the switcher for easy selection.
The product uses a standard 3.5mm interface design for input and output, and uses a precise 6-level and 2-level manual switch design for the switcher,
Product parameters:
Power supply: Passive design, direct insertion
Material: Full metal case
Input and output impedance: 10KΩ - 50KΩ
Frequency response: 20-20 kHz
Distortion: <0.002%
Insertion loss: <0.01 dB
Signal gain: 0dB
Signal to Noise Ratio S/N: >98dB
Input port: Standard 3.5mm interface
Output port: Standard 3.5mm interface
Number of input channels: 6-channel stereo input (6-channel inverted output)
Number of output channels: 2-channel stereo output (2-channel inverted input)
Control switch: 6-level precise manual selector and 2-level
Input switching channel: 6 channels
Output switching channel: 2 channels
Net weight: 0.28 kg
Gross weight with packaging: 0.39 kg
Product Dimensions: Length 122mm X Width 54mm X Height 39mm
Package dimensions: length 185 mm x width 135 mm x height 65 mm
List of kits:
1 X 6 input 2 output or 2 input 6 output 3.5mm interface stereo audio signal selector
