Prodotto selezionato

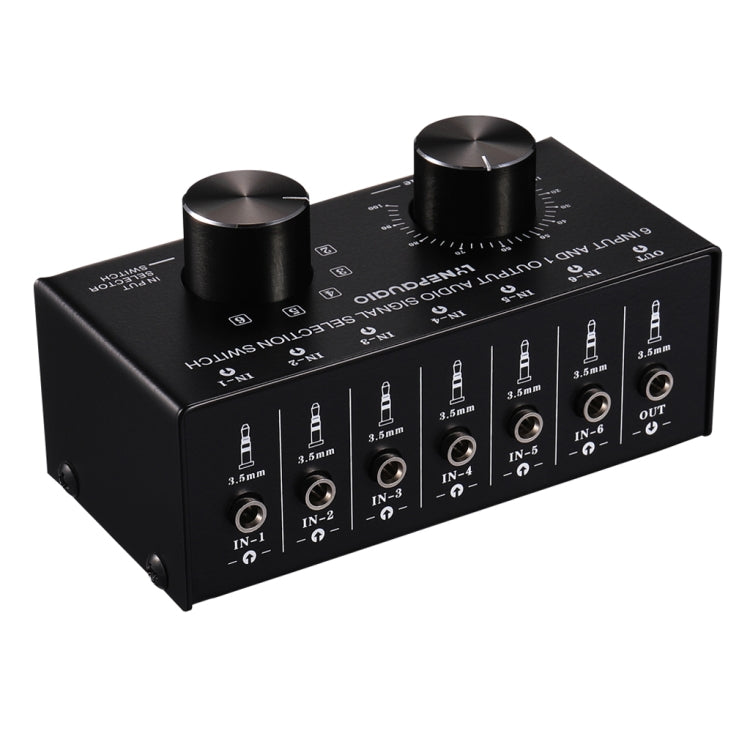

B017 6 Input 1 Output Audio signal selector Switch Output volume adjustment control 3.5mm interface
€30,30
Disponibile
B017 - 6 Input 1 Output Audio signal selector Output volume adjustment selector 3.5mm interface Product Description: 6-channel stereo audio signal selection switch with output volume adjustment function, The product adopts passive design, direct insertion,...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
B017 - 6 Input 1 Output Audio signal selector Output volume adjustment selector 3.5mm interface
Product Description:
6-channel stereo audio signal selection switch with output volume adjustment function,
The product adopts passive design, direct insertion, and has lossless switched transmission of input and output signals,
The product is mainly used to select and switch between a variety of stereo signal input and output through a common set of equipment, that is, a variety of stereo signal sources of devices, such as TV audio, MP3 player, CD player, video game, mobile phone, tablet, computer, turntable, need to be output to the amplifier or active speakers,
The 6-channel audio signal selection switch solves complicated line connections and disconnections, which seamlessly connects the device's input signal sources to the switcher for easy selection.
The product uses a standard 3.5mm interface design for input and output, and uses a precise 6-level manual switch design for the switcher, with independent stereo volume adjustment control.
Product parameters:
Power supply: Passive design, direct insertion
Material: Full metal case
Input and output impedance: 10KΩ - 50KΩ
Frequency response: 20 - 20 kHz
Distortion: <0.002%
Insertion loss: <0.01 dB
Signal gain: 0dB
Signal to Noise Ratio S/N: >98dB
Input port: Standard 3.5mm interface
Output port: Standard 3.5mm interface
Number of input channels: 6-channel stereo input signal sources
Number of output channels: 1 channel stereo output
Control switch: 6-level precise manual selector
Switching channel: 6 channels
Net weight: 0.26 kg
Gross weight with packaging: 0.36 kg
Product Dimensions: Length 109mm x Width 54mm x Height 40mm
Package dimensions: length 185 mm x width 135 mm x height 65 mm
List of kits:
1 X 6 input 1 output stereo audio signal selection selector output volume adjustment 3.5mm interface
Product Description:
6-channel stereo audio signal selection switch with output volume adjustment function,
The product adopts passive design, direct insertion, and has lossless switched transmission of input and output signals,
The product is mainly used to select and switch between a variety of stereo signal input and output through a common set of equipment, that is, a variety of stereo signal sources of devices, such as TV audio, MP3 player, CD player, video game, mobile phone, tablet, computer, turntable, need to be output to the amplifier or active speakers,
The 6-channel audio signal selection switch solves complicated line connections and disconnections, which seamlessly connects the device's input signal sources to the switcher for easy selection.
The product uses a standard 3.5mm interface design for input and output, and uses a precise 6-level manual switch design for the switcher, with independent stereo volume adjustment control.
Product parameters:
Power supply: Passive design, direct insertion
Material: Full metal case
Input and output impedance: 10KΩ - 50KΩ
Frequency response: 20 - 20 kHz
Distortion: <0.002%
Insertion loss: <0.01 dB
Signal gain: 0dB
Signal to Noise Ratio S/N: >98dB
Input port: Standard 3.5mm interface
Output port: Standard 3.5mm interface
Number of input channels: 6-channel stereo input signal sources
Number of output channels: 1 channel stereo output
Control switch: 6-level precise manual selector
Switching channel: 6 channels
Net weight: 0.26 kg
Gross weight with packaging: 0.36 kg
Product Dimensions: Length 109mm x Width 54mm x Height 40mm
Package dimensions: length 185 mm x width 135 mm x height 65 mm
List of kits:
1 X 6 input 1 output stereo audio signal selection selector output volume adjustment 3.5mm interface
