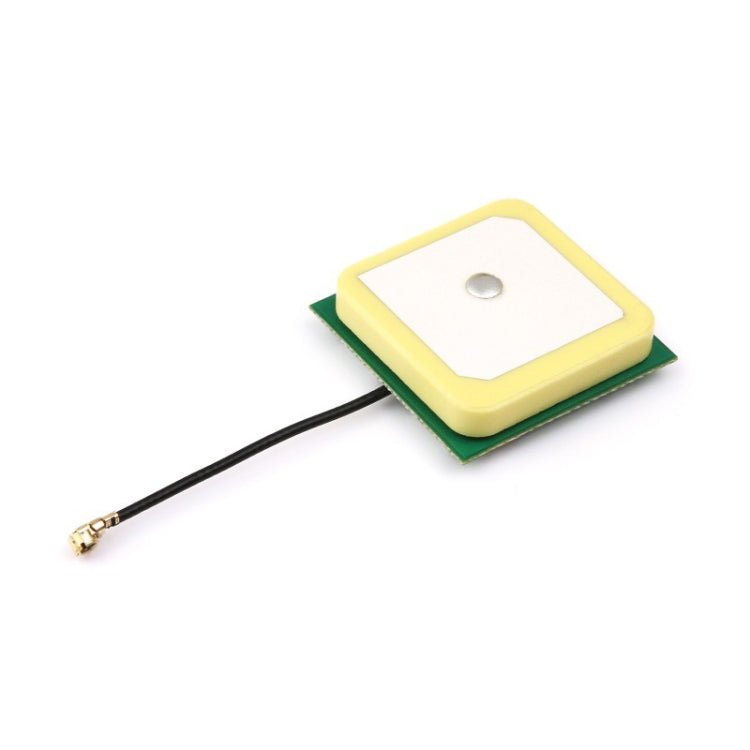

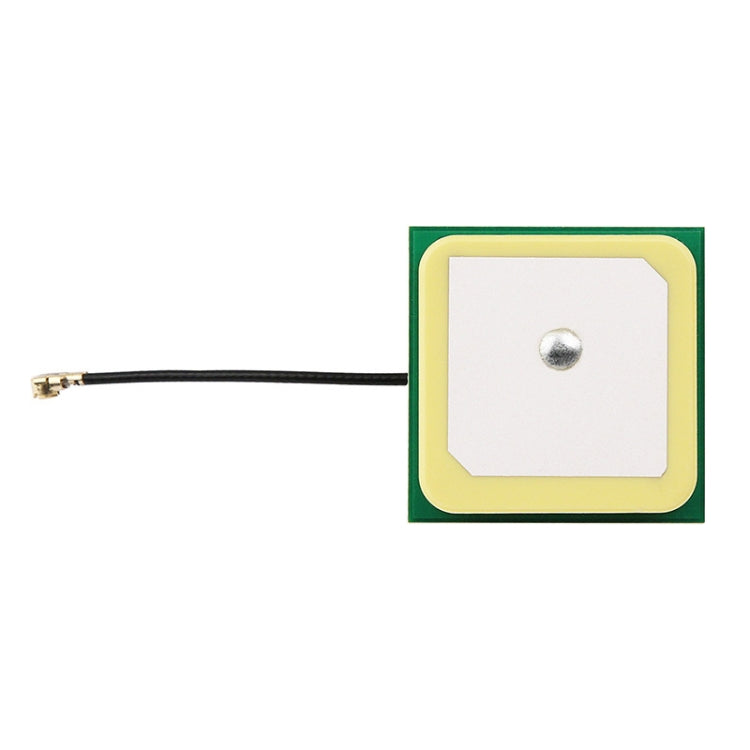

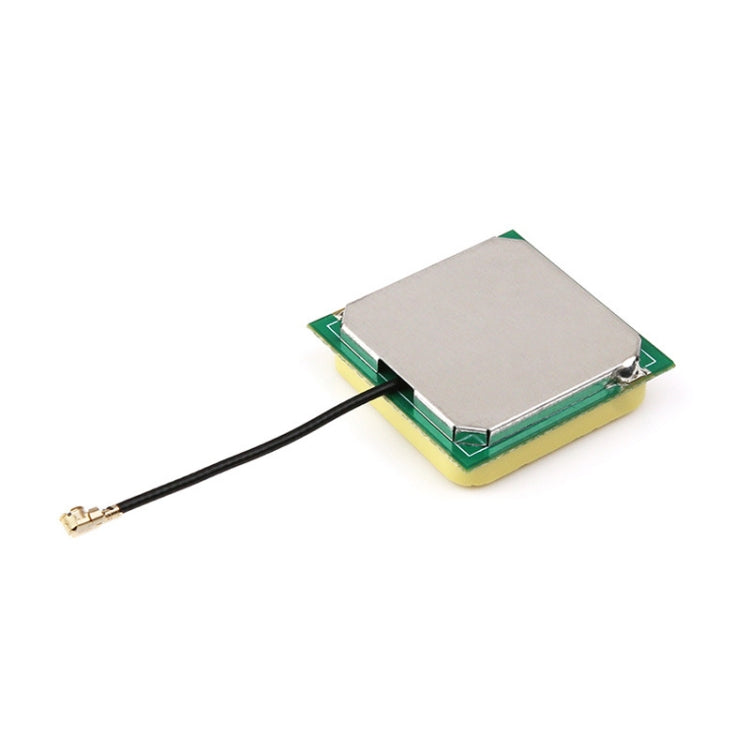

Waveshare 24095 GNSS Active Ceramic Positioning Antenna, IPEX 1 Connector, 24095

Waveshare 24095 GNSS Active Ceramic Positioning Antenna, IPEX 1 Connector, 24095

Name: Waveshare 24095 GNSS Active Ceramic Positioning Antenna, IPEX 1 Connector, 24095
Brand: 16e88.com
SKU: TBD04211317
Price: 3.72 EUR
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: TBD04211317

Available:

Only 999999 items in stock

999999 items in stock

In stock

Pre-order

Out of stock

€3,72

Description

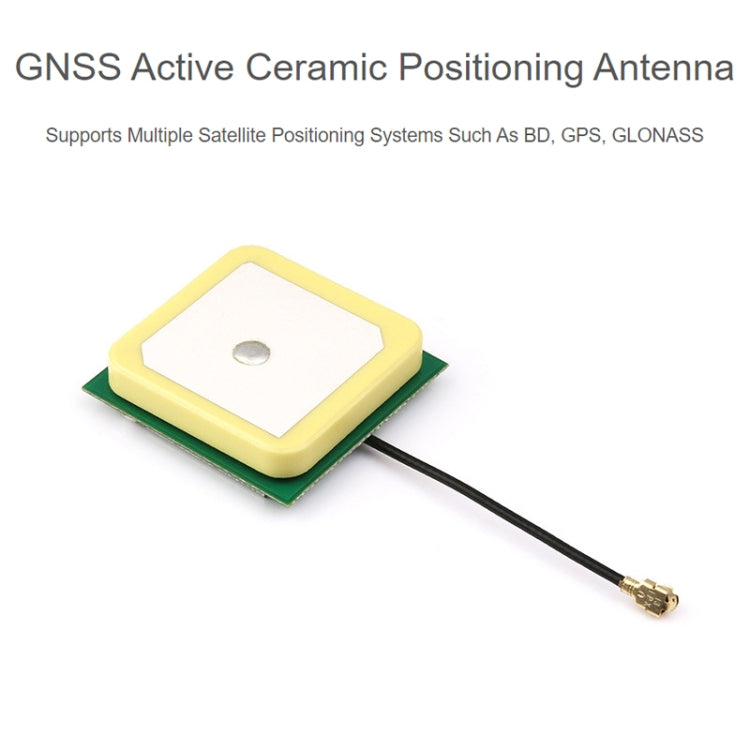

1. GNSS active ceramic positioning antenna supports BD, GPS, GLONASS and other satellite positioning systems
2. Center frequency: 1575.42 MHz, 1561 MHz, 1602.56 MHz
3. Output impedance: 50 ohm
4. Noise: less than or equal to 1.5 decibels
5. Plug: IPEX 1

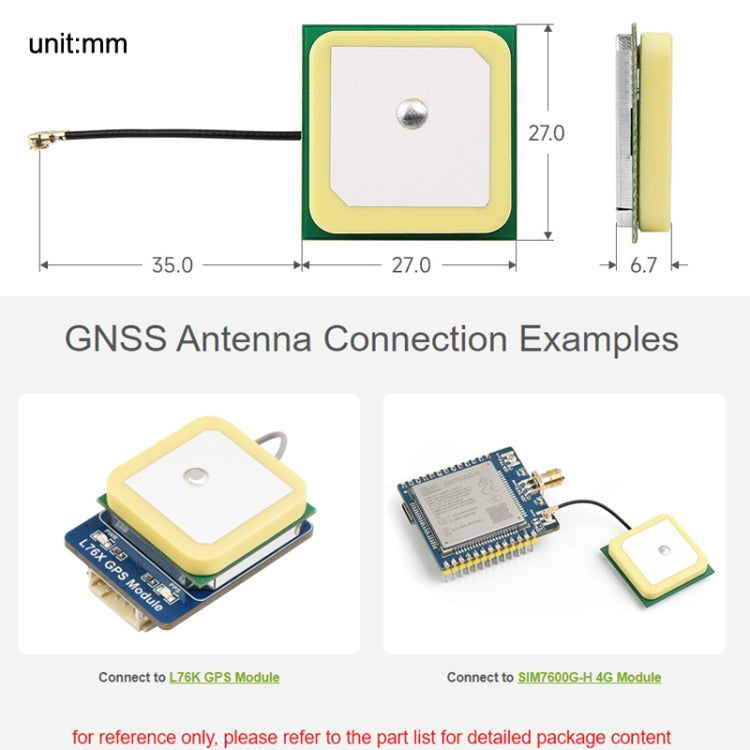

6. Cable length: 35mm
7. Ceramic size: 25 x 25 mm
8. Current consumption: less than 10mA
9. Power supply: DC 3.3-5V
10. Operating temperature: -20 to 65 degrees Celsius
11. Input power: 50w
12. Axial ratio: 3dB
13. Direction of radiation: omnidirectional

Size:

package weight

Weight of each package

0.05kgs / 0.12lb

One size fits all product

6cm * 4cm * 3cm / 2.36inch * 1.57inch * 1.18inch

Quantity of a box

500

Weight of a box

27.00kgs / 59.52lb

Dimensions of a box

47cm * 31cm * 23cm / 18.5inch * 12.2inch * 9.06inch

Goods counter

20GP: 795 Box * 500 Piece = 397500 Piece
40HQ: 1847 Box * 500 Piece = 923500 Piece
