Prodotto selezionato

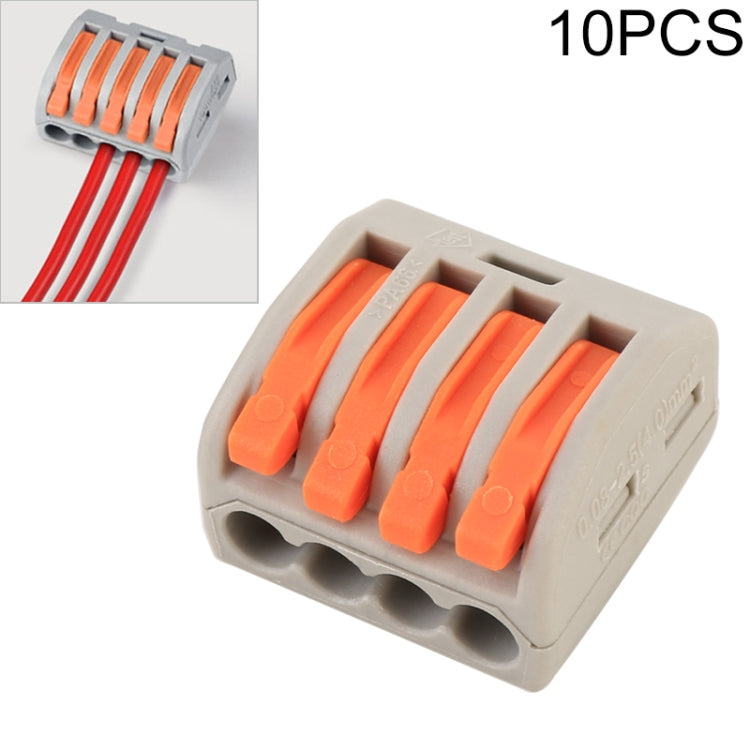

10PCS PCT Series 4 Port Architectural Wiring Connector LED Lamp Conductor Distributor Junction Box Cable Joint, 4 Port
€1,75
Disponibile
1. Material: PA66 2. Rated voltage: 250V. 3. Rated current: 20A 4. Stripping length: 12-13mm 5. Stripping length range: 0.47 inch 6. No risk of loosening the wire and weakening the tape, transparent and safe...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
1. Material: PA66
2. Rated voltage: 250V.
3. Rated current: 20A
4. Stripping length: 12-13mm
5. Stripping length range: 0.47 inch
6. No risk of loosening the wire and weakening the tape, transparent and safe
7. With test holes, no need to remove the tape to measure tension
8. Direct insertion, wrong connection can be pulled out, repeated connection
9. Each contact chip is independent, different diameter conductors are also available, safe short connection.
10. Permanent temperature resistance 105 degrees Celsius, not brittle
11. Maximum 4 mm / 32 A / 400 V connectable
Connection method:
1. Stripping the insulating skin of a conductor and strand 9-11 mm
2. Move the orange pressure bar up with your thumb and open the spring box.
3. Insert the wire through the opening of the spring box.
4. Press down the orange pressure bar and the wire will be locked automatically.
Thread removal method:
1. The thread can be removed by moving the orange pressure bar upwards with your thumb.
2. Rated voltage: 250V.
3. Rated current: 20A
4. Stripping length: 12-13mm
5. Stripping length range: 0.47 inch
6. No risk of loosening the wire and weakening the tape, transparent and safe
7. With test holes, no need to remove the tape to measure tension
8. Direct insertion, wrong connection can be pulled out, repeated connection
9. Each contact chip is independent, different diameter conductors are also available, safe short connection.
10. Permanent temperature resistance 105 degrees Celsius, not brittle
11. Maximum 4 mm / 32 A / 400 V connectable
Connection method:
1. Stripping the insulating skin of a conductor and strand 9-11 mm
2. Move the orange pressure bar up with your thumb and open the spring box.
3. Insert the wire through the opening of the spring box.
4. Press down the orange pressure bar and the wire will be locked automatically.
Thread removal method:
1. The thread can be removed by moving the orange pressure bar upwards with your thumb.
Size:
