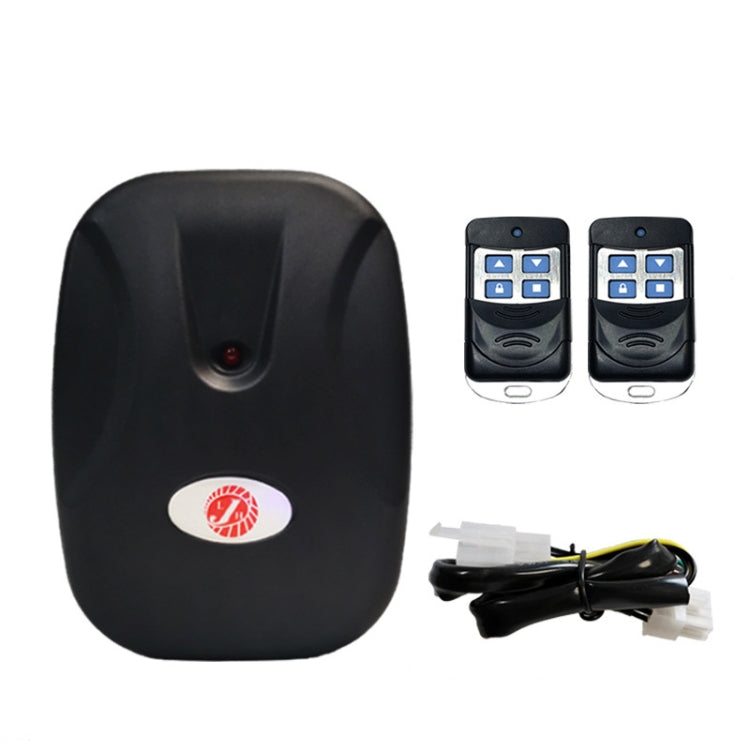

Electric Garage Door Controller Roller Shutter Door Remote Control Chain Motor Receiver with Cable

1. Material: plastic
2. Size: about 14x9.7x4cm
3. Frequency: 433MHz
4. Power supply: AC220V 50Hz
5. Remote control distance: within 50 meters
6. Chip model: EV1527
7. Power supply: Contains 23A 12V lithium battery
8. Scope of application: suitable for 6 meters 6 meters outdoor motor

Characteristics:

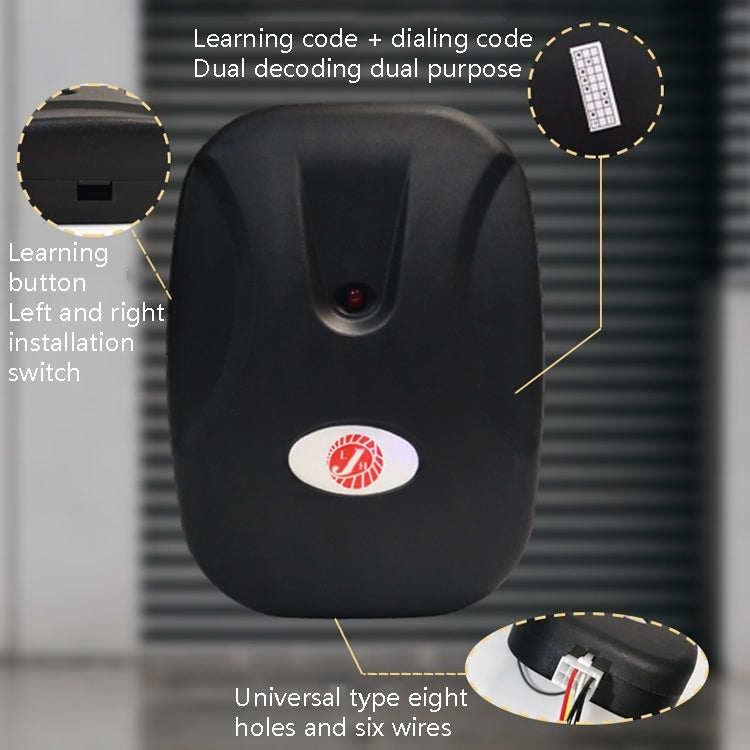

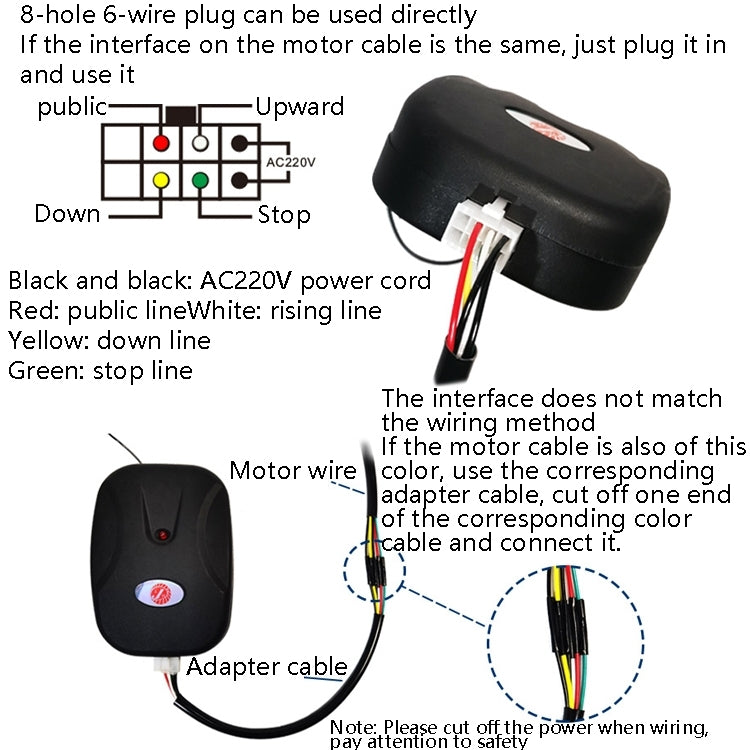

1. Universal type with eight holes and six wires, easy to connect

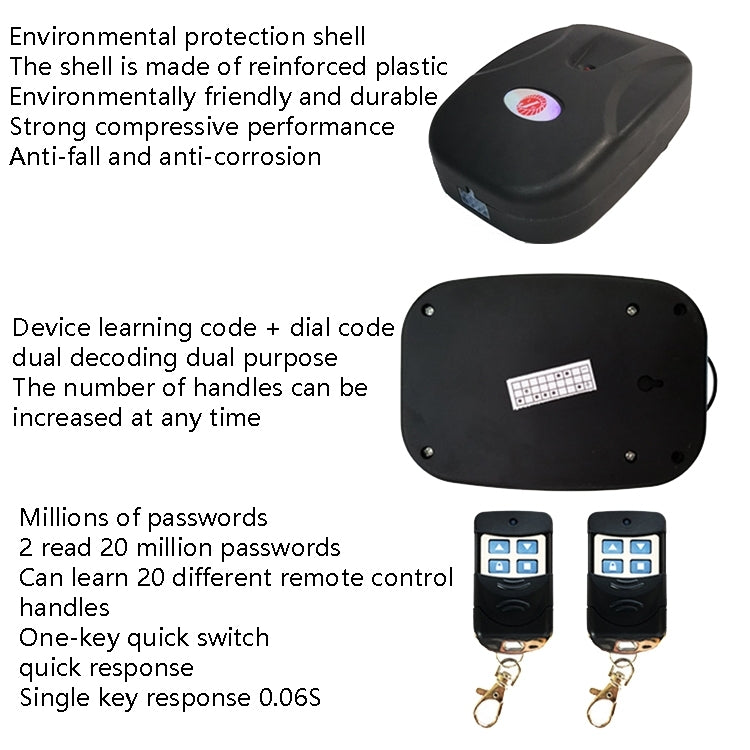

2. The shell is made of reinforced plastic, which is environmentally friendly and durable, with strong compressive strength, anti-fall and anti-corrosion
3. Device learning code + Dual Decoding Dual Purpose dialing code, you can increase the number of handles at any time
4. 2 Read 20 million sets of passwords, can learn 20 different remote control handles, one-key quick switch, fast response speed
5. SuperHeterodyne module built into the main board, precision components are built into the sealed area, moisture-proof, high sensitivity, and increase the signal distance

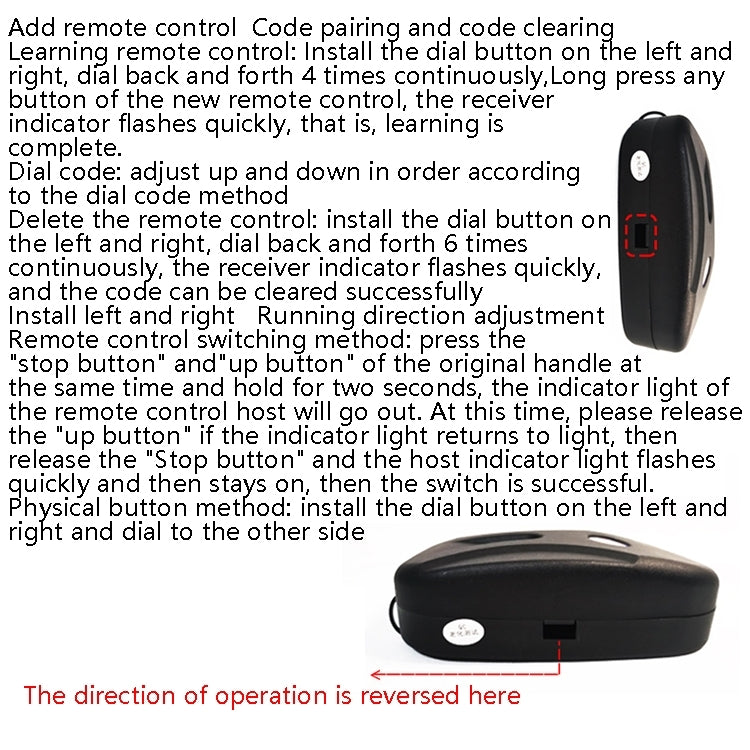

Add remote control, code matching and clearing methods:
1. Learning the remote control: Install the dial button on the left and right, dial forward and backward 4 times continuously,
Long press any button on the new remote control, the receiver indicator flashes quickly and the learning is complete.
2. Dialing code: Adjust up and down in sequence according to the dialing method
3. Remove the remote control: Install the dial button on the left and right, dial forward and backward 6 times continuously, the receiver indicator flashes quickly, and the code clearing can be successful
Install left and right

Adjusting the direction of operation:
1. Remote control switching method: Press the STOP button and the UP button of the original handle at the same time and hold for two seconds, the indicator light of the remote control host will go out, at this time please release the UP button, If the indicator light returns to light, release it again to stop the key, the host indicator light flashes quickly and then continues, the switch is successful
2. Physical button method: Install the selection key on the left and right and on the other side
