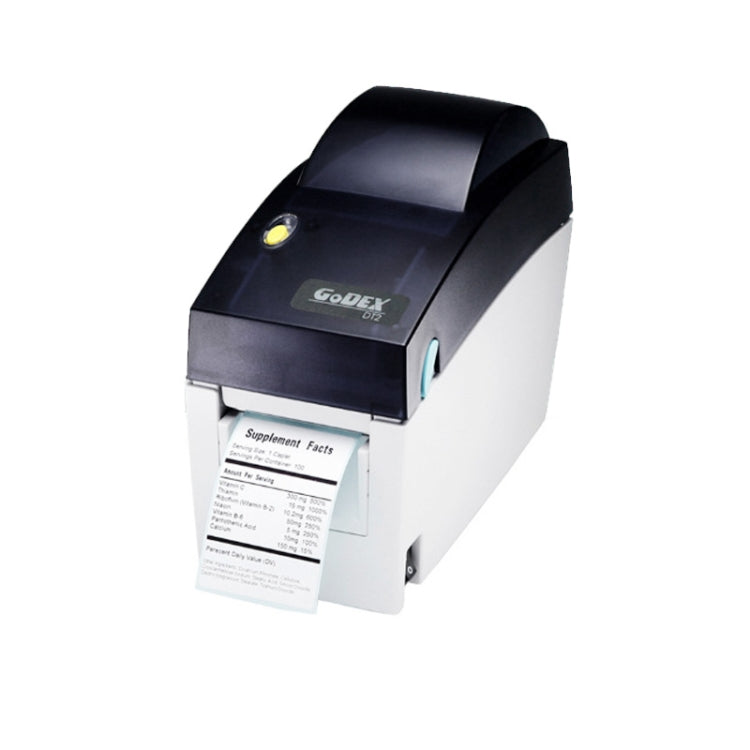

GODEX EZ-DT2 Self-adhesive Thermal Calibration Label Barcode Printer

Plan
1. Programming languages: EZPL, GEPL, GZPL, can be switched automatically
2. Random Bundled Software:
- Label layout software: GoLabel (supports EZPL only)
- Driver: Supports Windows 2000, XP, Vista, 7, 8, Windows Server 2003 and 2008
- DLL: Supports Windows 2000, XP and Vista
3. Embedded fonts:
- Bitmap font: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A and B
- The printing direction of the bitmap character can be rotated at an angle of 0 degrees, 90 degrees, 180 degrees, 270 degrees, the character can be individually rotated at an angle of 0 degrees, 90 degrees, 180 degrees, 270 degrees
- Can be enlarged 8 times horizontally or vertically
- Scalable characters, with rotation angles of 0 degrees, 90 degrees, 180 degrees, 270 degrees
4. Download the fonts
- Bitmap font can be downloaded, printing direction can be rotated 0 degrees, 90 degrees, 180 degrees, 270 degrees, the character can be individually rotated 0 degrees, 90 degrees, 180 degrees, 270 degrees, and can be enlarged 8 times horizontally or vertically
- Downloadable Asian characters, printing direction can be rotated 0 degrees, 90 degrees, 180 degrees, 270 degrees, and can be enlarged 8 times horizontally or vertically
- Downloadable vector font (scalable font), printing direction can be rotated at an angle of 0 degrees, 90 degrees, 180 degrees, 270 degrees
5. Barcode:
- 1-D barcodes:
- Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, NET Post, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM and GS1 DataBar
- 2-D barcodes:
- PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code
6. Code page:
- CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
- WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257
- Unicode (UTF8, UTF16)

Specifications
1. Printing mode: thermal
2. Resolution: 203 dpi (8 dots/mm)
3. Printing speed: 4 IPS (100mm/sec)
4. Print width: 54mm (2.12 inches)
5. Print length: Min. 4mm (0.16 inch); Max. 1727mm (68 inch)
6. Processor: 32-bit RISC CPU
7. Memory:
-4 MB Flash (the capacity available to the user is 2 MB); 16MB
-SDRAM
8. Sensor shape: Reflective sensor: removable; Translucent sensor: center-mounted fixed type
9. Paper Specifications:
- Paper width: 15mm (0.6 inch) ~ 60mm (2.36 inch)
- Paper Thickness: 0.06mm (0.003 inch) ~ 0.20mm (0.008 inch)
- Paper roll outer diameter: maximum diameter 127 mm (5 inches)
- Paper roll core: 25.4mm (1 inch) / 38.1mm (1.5 inch)
10. Graphics processing: Monochrome PCX and BMP are supported by default, other image file types can be supported by software control

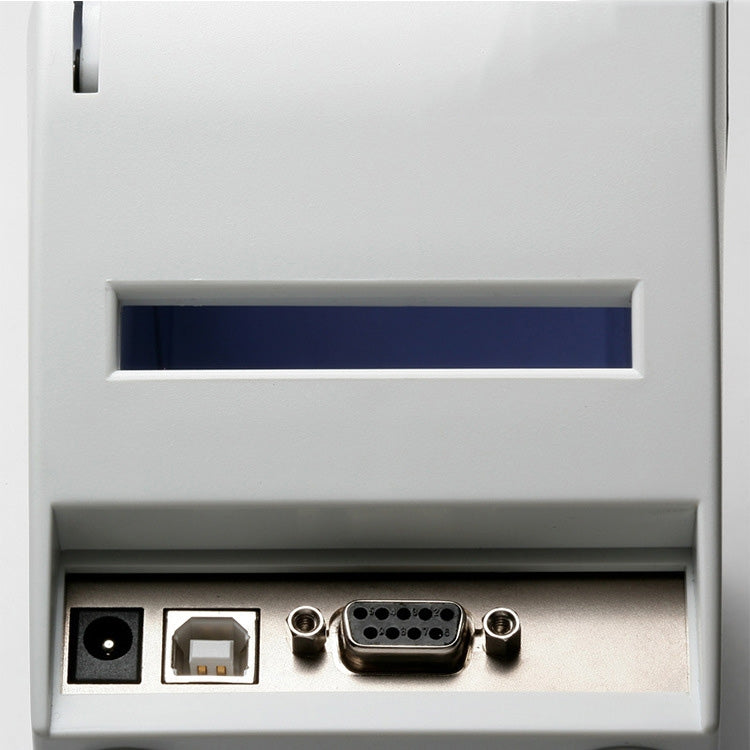

11. Transmission interface:
- USB device (type B)
- Serial port: RS-232 (DB-9)
- IEEE 802.3 10/100Base-Tx (RJ-45) Ethernet port
12. Control Panel:
-A set of three-color LED indicators: power (red, orange, green lights)
-A set of multifunctional hardware control keys: FEED
13. Timing device: Standard
14. Power supply: 100-240V AC, 50-60Hz (AC/DC automatic conversion power supply)
15. Work environment:
- Operating Temperature: 41 degrees F to 104 degrees F (5 degrees C to 40 degrees C)
- Storage Temperature: -4 degrees F to 122 degrees F (-20 degrees C to 50 degrees C)
- Humidity Operating humidity: 30-85%, non-condensing.
- Storage humidity: 10-90%, non-condensing.
16. Safety Standards: CE (EMC), FCC Class A, CB, cUL, CCC
17. Body Dimensions: Length: 218mm (8.58 inches), Height: 172mm (6.77 inches), Width: 100mm (3.94 inches)
18. Body weight: The body does not contain other consumables or optional equipment weighs 1.2 kg (2.65 lbs)
