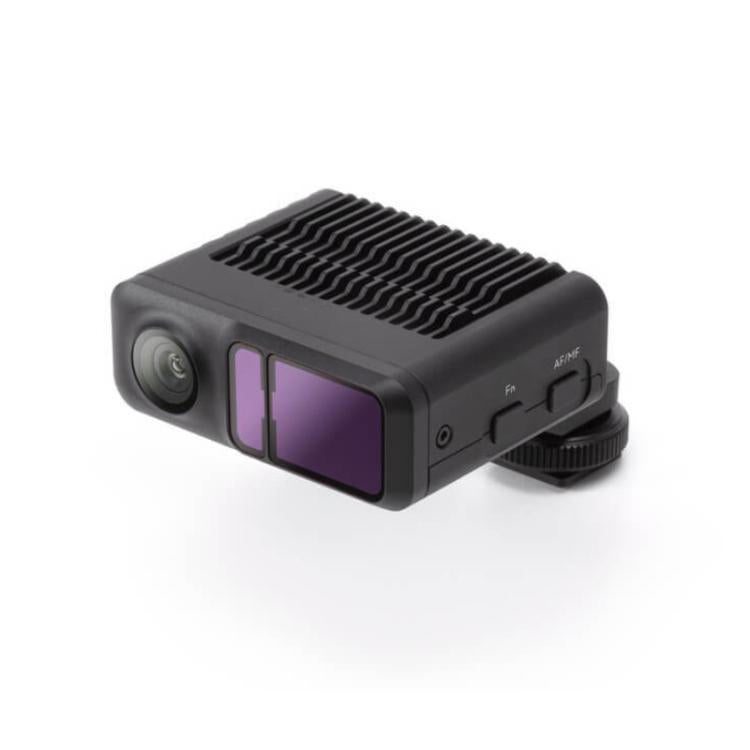

Original DJI LiDAR Focus rangefinder, Focus Rangefinder

1. It can reach a detection distance of 14 meters and a built-in camera with a focal length equivalent to 30mm, with a wide field of view of 70 degrees
2. When used with the new focus motor, the manual lens can perform autofocus
3. The target recognition and follow-up performance of intelligent follow are even better
4. The laser follow focus system not only reduces the difficulty of following the focus when shooting handheld, but also does not need to rely on the texture of the object, and can also focus stably in low-light environments or complex scenes with multiple targets.
5. It can project 43,200 points of distance, which can meet the focusing needs of most scenes
6. Measured in the absence of strong light conditions, in a normal shooting environment, the detection distance of people is 7 meters
7. Image sensor resolution: 448×298 touch screen display
8. Field of view: 57.4 degrees (horizontal), 44.6 degrees (vertical), 70.1 degrees (diagonal)
9. Equivalent focal length: 30mm
10. ToF sensor resolution: 240×180
11. ToF sensor sensing distance: 0.5m to 14m
12. Support 5 targets (MAX) simultaneous recognition and you can choose one to track
13. Recognition distance: 9 meters
14. Power consumption: 6.8 watts
15. Input voltage: 7V to 16V
16. Dimensions: length 66mm, width 57mm, height 24mm
17. Weight: about 130 grams
18. Mounting height: 30 mm
19. Uncalibrated lens: DZOFILM Vespid Cyber ​​35/50/75 mm
Accessory Interface:
- Cold shoe interface
- 1/4-20 mounting holes
- USB-C interface
- USB-C data interface power/CVBS/CAN
Packing list:
- LiDAR Focus Rangefinder (RS) x 1
- Camera Control Cable (USB-C, 30cm) x 1
- LiDAR Control Cable (USB-C, 30cm) x 1
