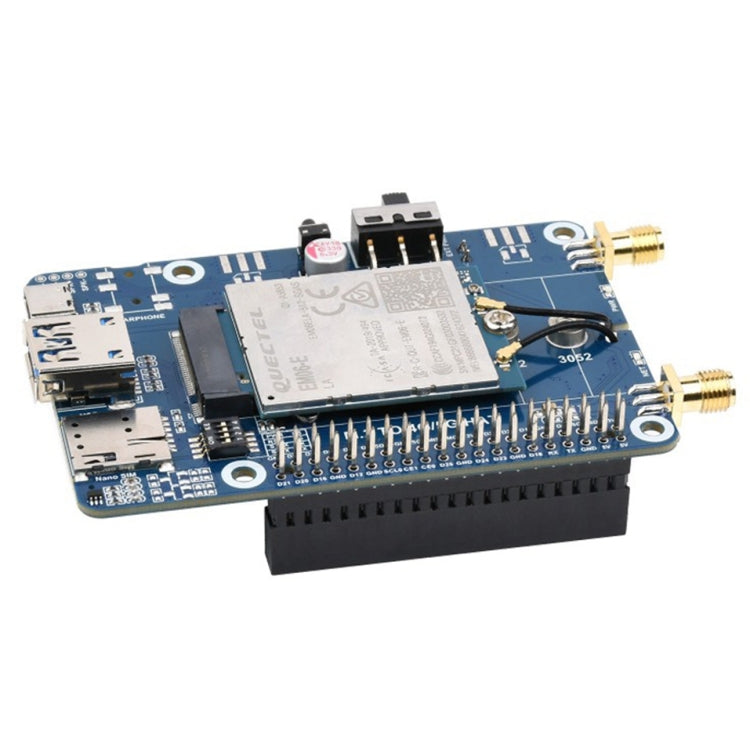

Waveshare EM06-E LTE Cat-6 HAT Dual Antenna LTE-A Multi-Region Multi-Band Module for Raspberry Pi, EM06-E LTE Cat-6 HAT

Functionality
1. This is a Raspberry PI LTE Cat 6 communication hat with GNSS and up to 300Mbps (downlink) / 50Mbps (uplink). It is applicable for countries/regions including Europe, Middle East, Africa, Asia-Pacific, Brazil... By connecting it to PC, Raspberry Pi or Jetson Nano Host Boards, it is easy to enable high-speed networking LTE-A Cloud platform communication, SMS and global GNSS positioning functions.
2. Multi-constellation high-precision GNSS positioning: GPS, Glonass, Beidou/Compass, Galileo, QZSS
3. Integrate extensive network protocols, with multiple drivers and software support, compatible with different operating system including Windows / Linux / Android

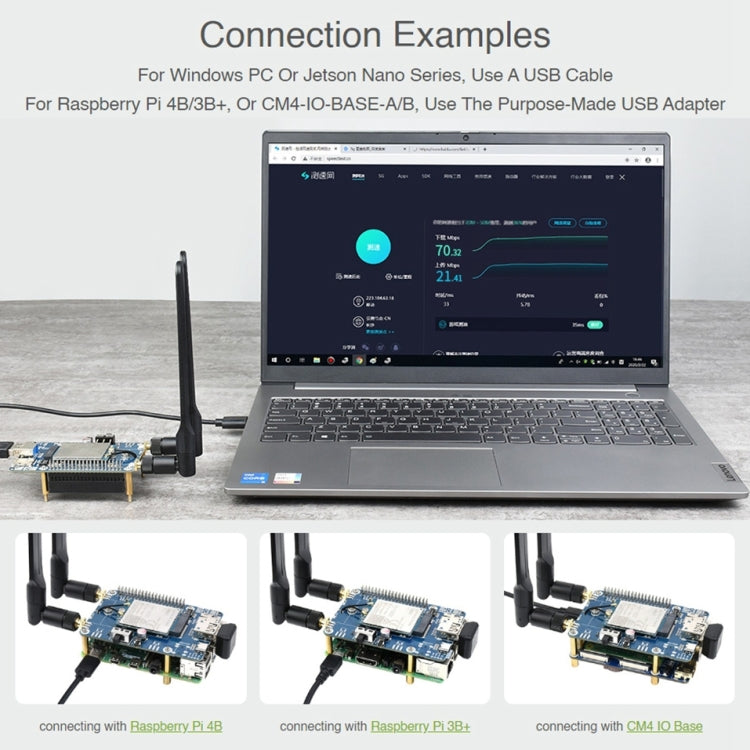

4. USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi or Jetson Nano Host Board to enable high-speed LTE-A communication
5. Standard M.2 B key slot, compatible with various core modules: EM06-E, EM06-J, EM06-A series
6. Onboard PWR and RST control PIN, enabled via SPIP Switch, for connection to external IO to enable/disable or reset the module
7. Onboard switch-enabled USB-C connector for connecting the module's standalone power supply enables multiple loads, flexible AMD stable AMD power supply
8. On-board power supply Switch Off Switch, reset button and LED indicator, easy to turn on/off the module or monitor the working status
9. 4x SMA antenna interfaces reserved for iPEX, with 2x pre-soldered connectors for easily using antennas, allows you to change the position of the SMA antenna
10. High efficiency power circuit, output current up to 3A
Specifications
LTE Cat 6:
1. Region / Supplier: EMEA / APAC (except Japan and CMCC) / Brazil
2. Module size: 42.0 x 30.0 x 2.3 (mm)
Temperature range:
1. Operating temperature: -30 degrees C ~ +70 degrees C
2. Extension temperature: -40 degrees C ~ +85 degrees C
Frequency band
1. LTE-FDD: B1, B3, B5, B7, B8, B20, B28, B32 (Only receive for B32)
2. LTE-TDD: B38, B40, B41
3. 2XCA:
- B1+B1, B5, B8, B20, B28;
- B3+B3, B5, B7, B8, B20, B28;
- B7+B5, B7, B8, B20, B28;
- B20+B32 (B32 is only used for AUX component carrier), B38+B38, B40+B40, B41+B41
4. WCDMA: B1, B3, B5, B8
5. GNSS: GPS/GLONASS/BEIDOU (Compass)/Galileo/QZSS
Data Rate:
1. LTE-FDD: 300Mbps (DL) / 50Mbps (UL)
2. LTE-TDD: 226Mbps (DL) / 28Mbps (UL)
3. DC-HSPA+: 42Mbps (DL) / 5.76Mbps (UL)
4. WCDMA: 384kbps (DL) / 384kbps (UL)
List of packages
1. M.2 to 4G/5G HAT x 1
2. EM06-E X 1
3. Antenna 2pcs x 1
4. IPEX adapter cable 2pcs x 1
5. 2**20pin Pin Header x 1
6. Passive GPS antenna x 1
7. USB3.0 Dual Plug Cable X 1
8. USB3.0 adapter x 1
9. USB2.0 adapter x 1
10. SMA protective cap 2pcs x 1
11. Screw pack x 1
