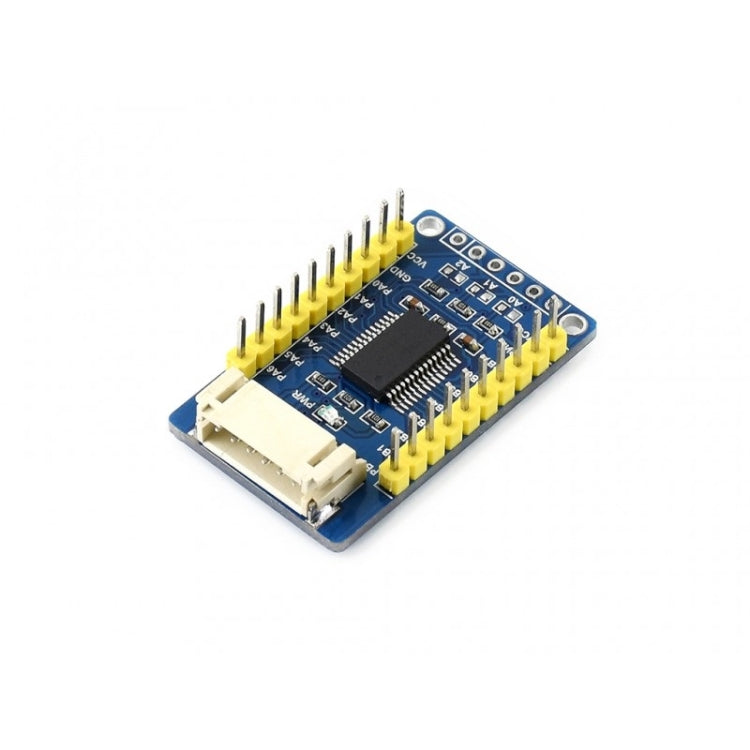

Waveshare MCP23017 IO Expansion Card, Expands 16 I/O Pins
€7,80
Disponibile
Overview MCP23017 IO expansion board expands 2 signal pins as 16 I/O pins based on I2C bus, up to 8 MCP23017 IO expansion boards can be used at the same time, providing up to 128...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Overview
MCP23017 IO expansion board expands 2 signal pins as 16 I/O pins based on I2C bus, up to 8 MCP23017 IO expansion boards can be used at the same time, providing up to 128 I/O pins, it is compatible with 3.3V and 5V levels.
Characteristics
1. Controlled by I2C, expand 2 signal pins as 16 I/O pins
2. I2C address configurable by shorting jumpers A0 / A1 / A2
3. Provides two connector options: PH2.0 terminal and/or solder pads, allows you to stack multiple I2C modules
4. On-board voltage translator, compatible with 3.3V / 5V level
5. Comes with development resources and manual (examples for Raspberry Pi / micro:bit / Arduino / STM32)
Specifications
1. Working voltage: 5V / 3.3V.
2. Interface: I2C
3. Interrupt pins: INTA, INTB
4. Expansion I/O: 16
5. Size: 38mm × 23mm
6. Mounting hole size: 2.0mm
MCP23017 IO expansion board expands 2 signal pins as 16 I/O pins based on I2C bus, up to 8 MCP23017 IO expansion boards can be used at the same time, providing up to 128 I/O pins, it is compatible with 3.3V and 5V levels.
Characteristics
1. Controlled by I2C, expand 2 signal pins as 16 I/O pins
2. I2C address configurable by shorting jumpers A0 / A1 / A2
3. Provides two connector options: PH2.0 terminal and/or solder pads, allows you to stack multiple I2C modules
4. On-board voltage translator, compatible with 3.3V / 5V level
5. Comes with development resources and manual (examples for Raspberry Pi / micro:bit / Arduino / STM32)
Specifications
1. Working voltage: 5V / 3.3V.
2. Interface: I2C
3. Interrupt pins: INTA, INTB
4. Expansion I/O: 16
5. Size: 38mm × 23mm
6. Mounting hole size: 2.0mm
