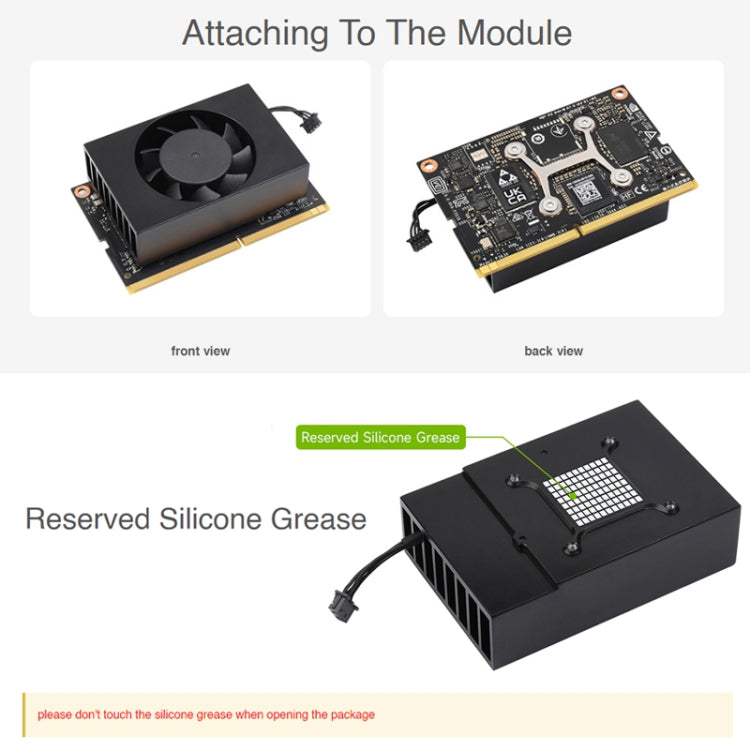

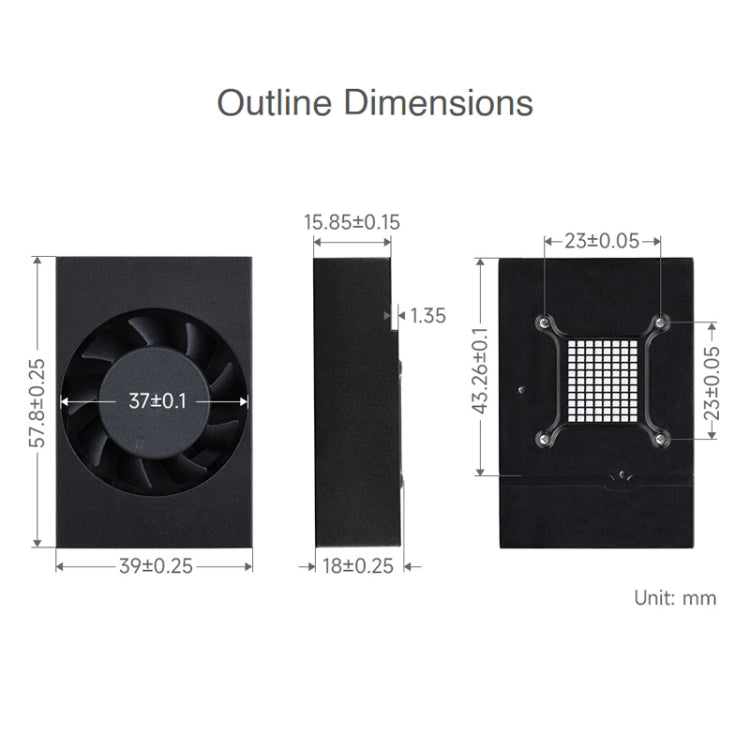

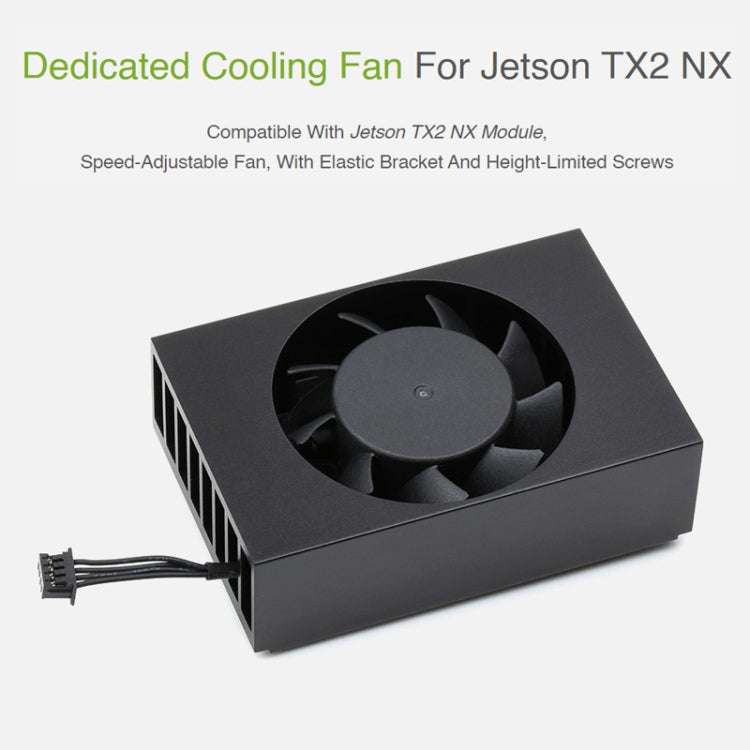

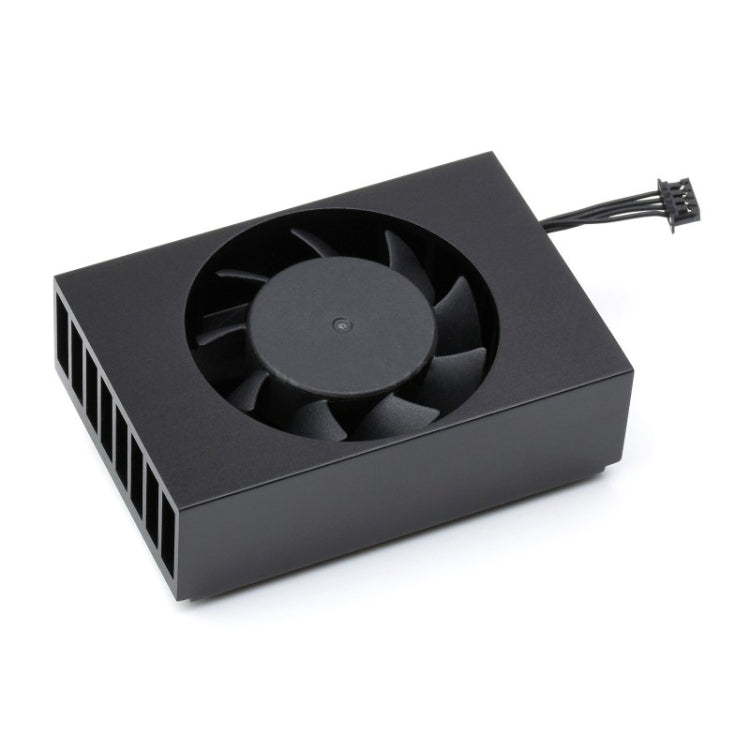

1. Module Support: NVIDIA Jetson TX2 NX Module
2. Power supply: DC 5V input
3. Structure: Built-in fan, aluminum alloy shell
4. Electrical parameters: 0.65W (5V/0.13A)
5. Cable length: 37 +/- 3 mm
6. Fan: PWM speed control, 5500 +/- 10% RPM

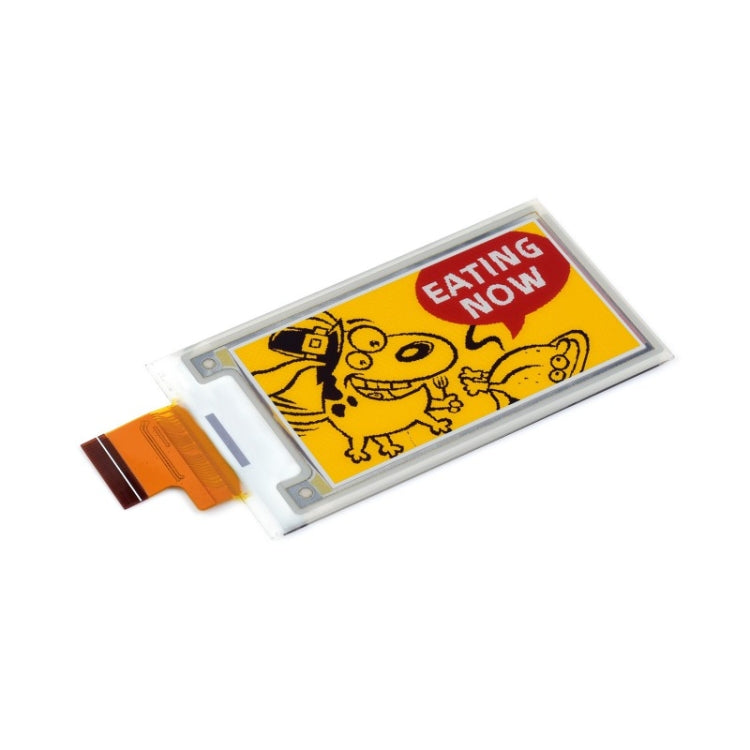

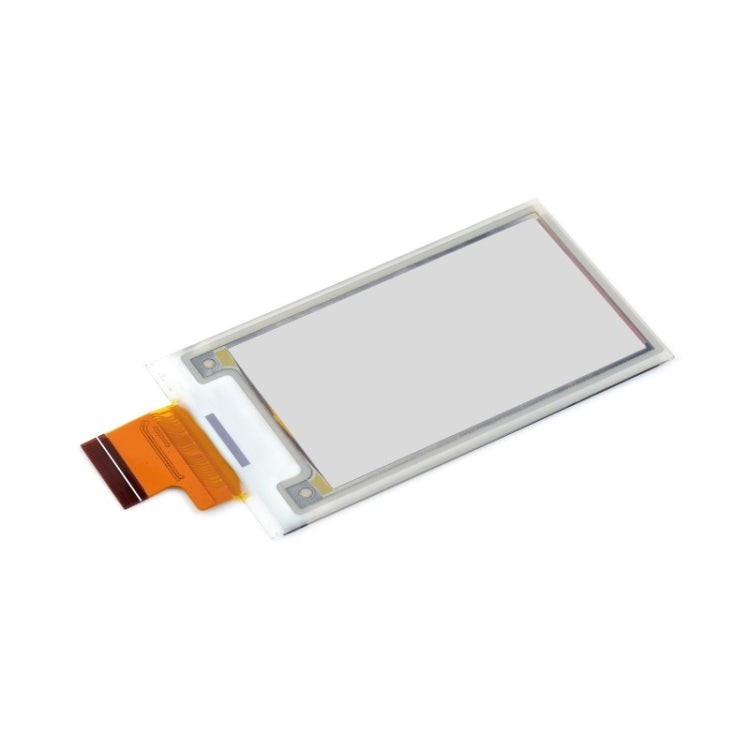

1. No backlight, keep displaying the last content for a long time even when it turns off
2. Extremely low energy consumption, practically the power is only needed for cooling
3. Come with development resources and manual (driver board diagram, examples for Raspberry Pi/Arduino/STM32)

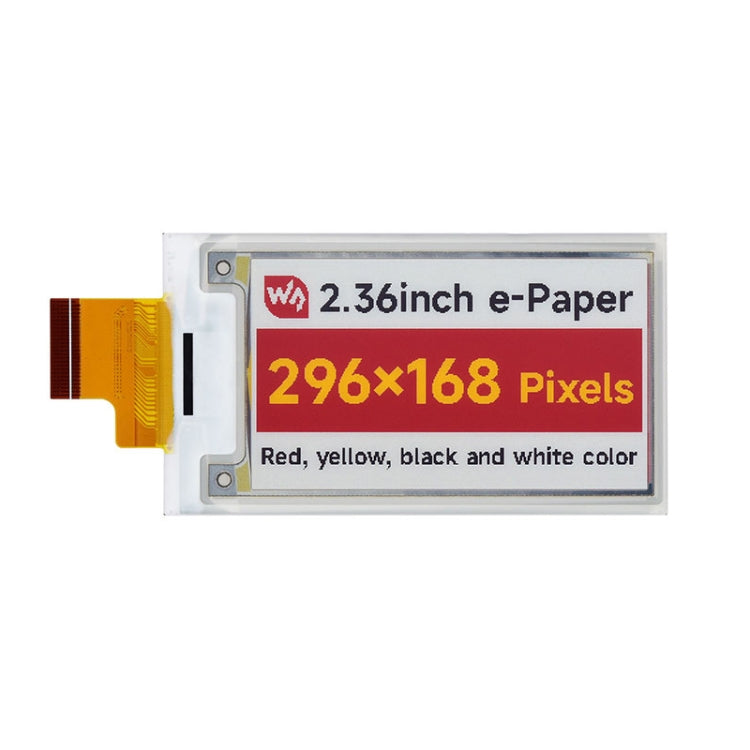

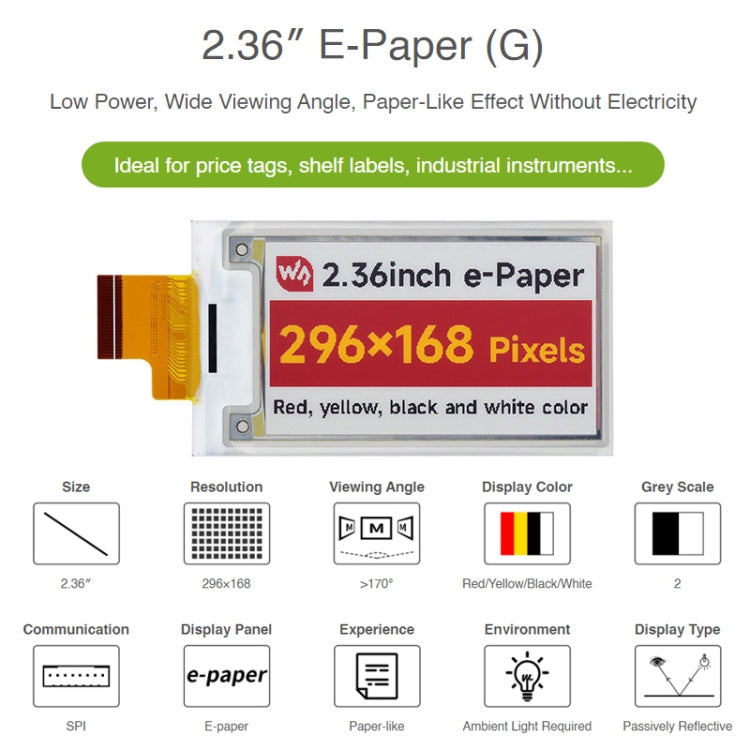

Specifications:
1. Working voltage: 3.3V
2. Interface: 3-wire SPI, 4-wire SPI
3. Outline size: 68.1 x 37.9 x 0.85mm
4. Display Size: 52.096 x 29.568 mm
5. Dot pitch: 0.176 x 0.176 mm
6. Resolution: 296 x 168 pixels
7. Display color: red/yellow/black/white
8. Gray Level: 2
9. Full refresh time: 12 seconds
10. Refresh power: less than 57mW (typ.)
11. Standby power: less than 0.01uA (almost none)
12. Viewing angle: greater than 170 degrees

Characteristics

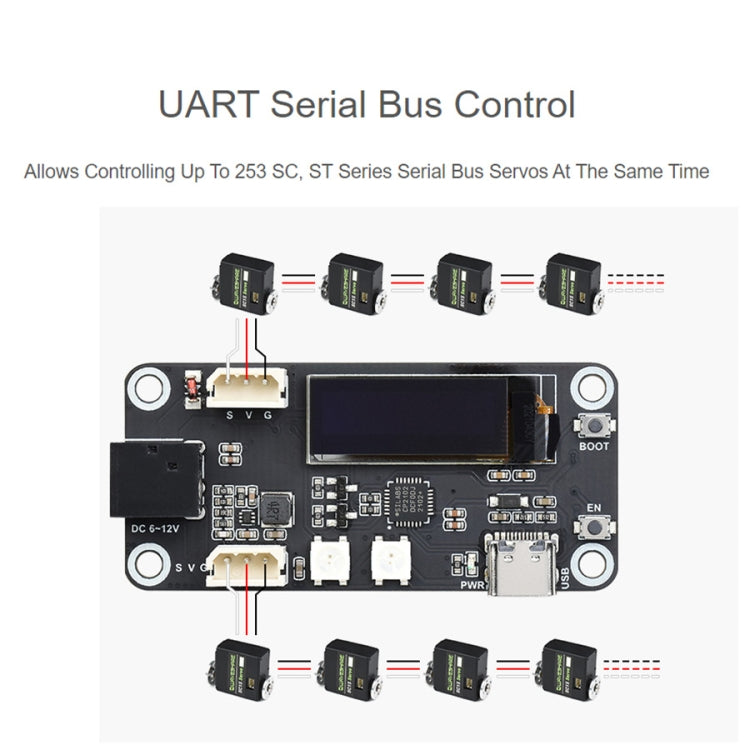

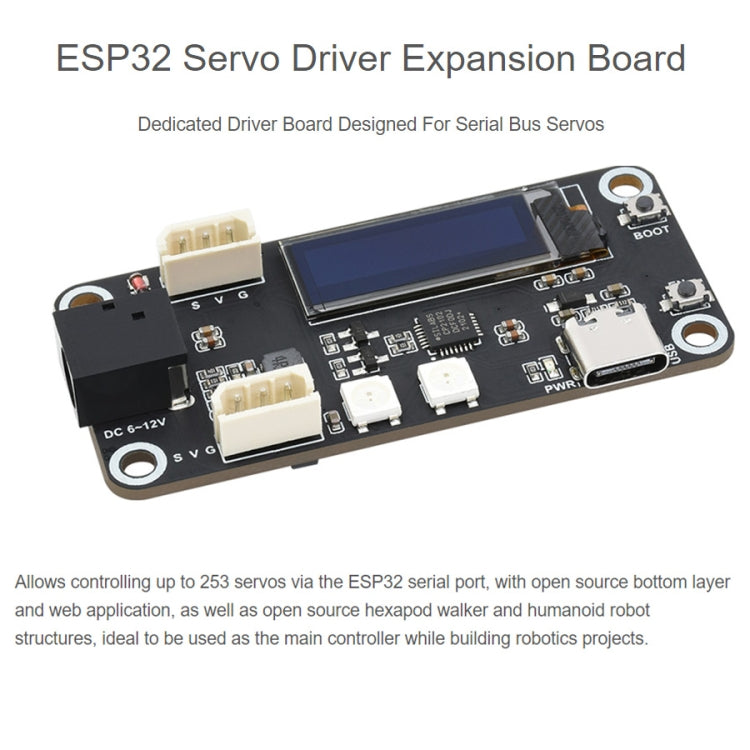

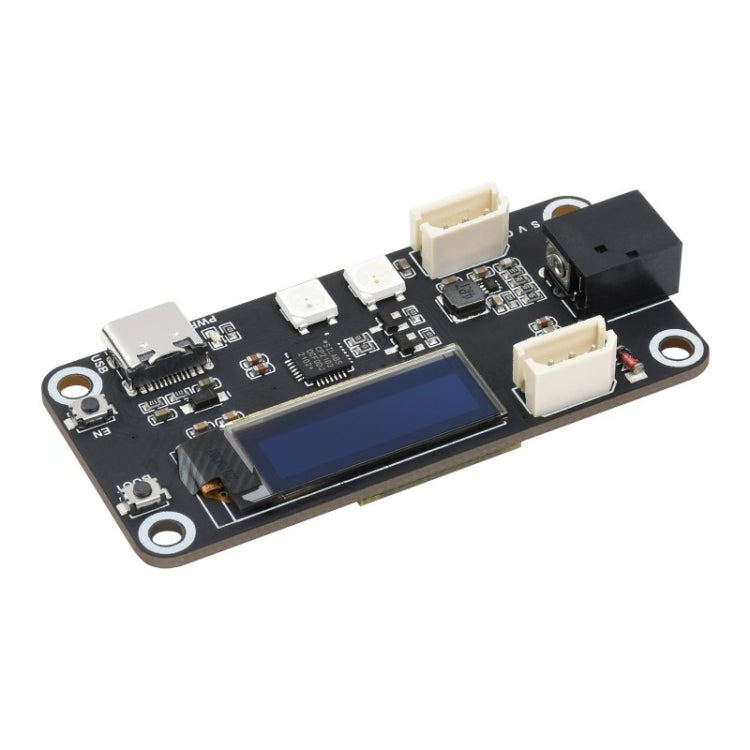

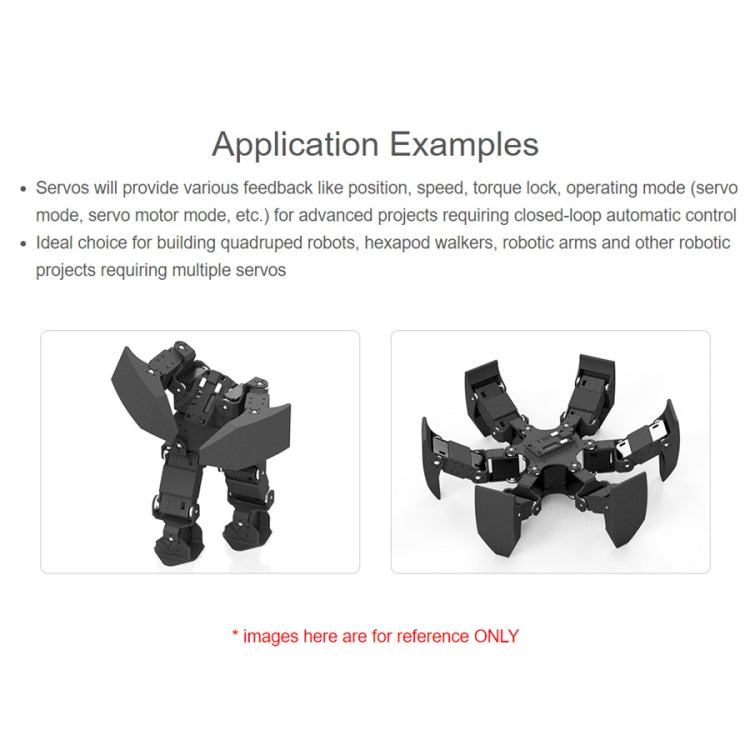

1. Control up to 253 SC, ST series serial bus servos simultaneously (adequate power supply required)
2. Wide range voltage input 6-12V (input voltage and servo voltage must be matched)
3. Built-in WiFi and Bluetooth, plus ESP-NOW support, for remote control and servo debugging
4. Automatic download circuit for easy program loading
5. Open source web application and various robot frameworks
6. Compact size and space saving, suitable for integrating into kinds of projects with limited space
Specifications
1. Power supply voltage: DC 6-12V
2. Power connector: 5.5 x 2.1mm DC
3. Download interface: Type-C
4. Controller: ESP32
5. Control interface: UART
6. Dimensions: 30 x 65 mm
7. Mounting hole size: 2.75mm
8. Mounting hole spacing: 23 x 58 mm
List of packages
1. Servo drive with ESP32 x 1
2. Screw pack x 1

Product information

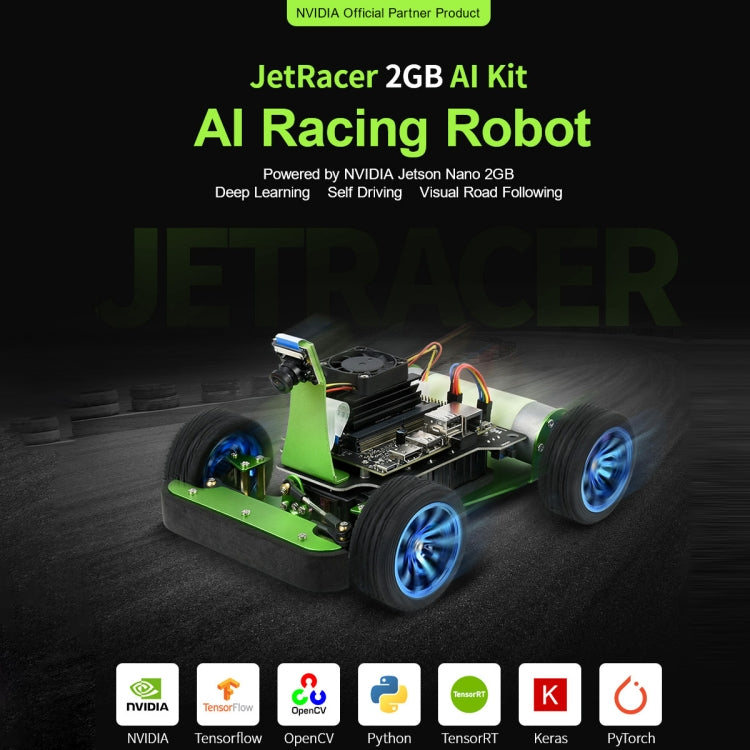

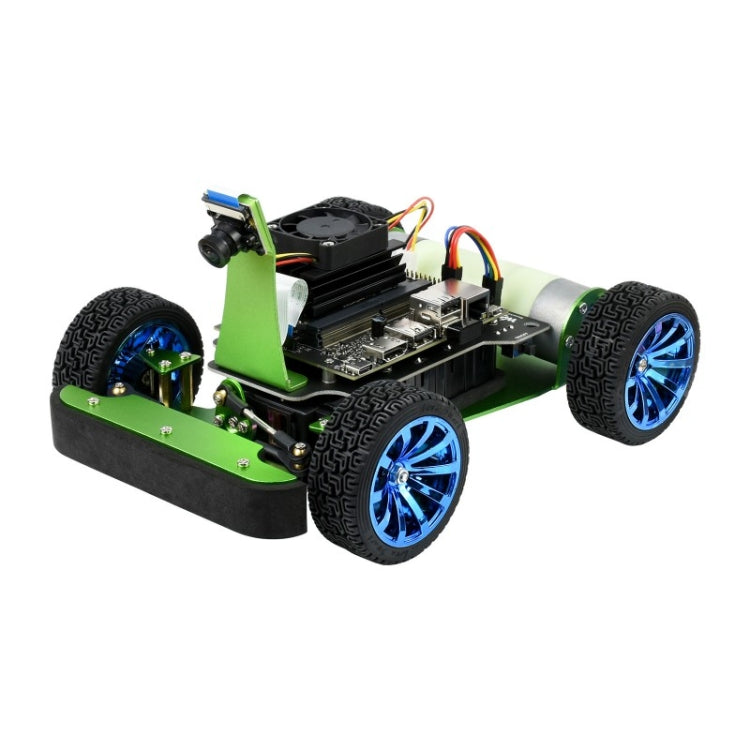

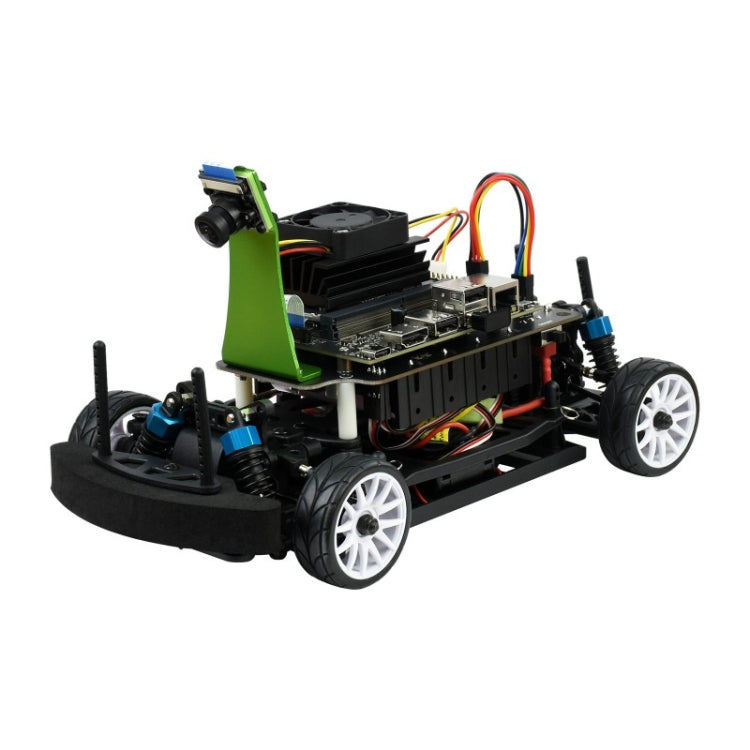

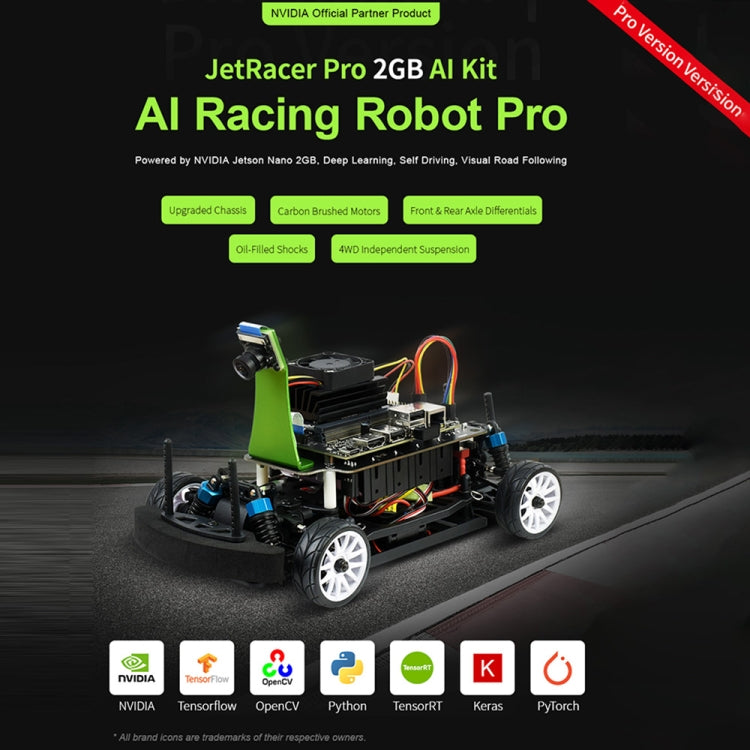

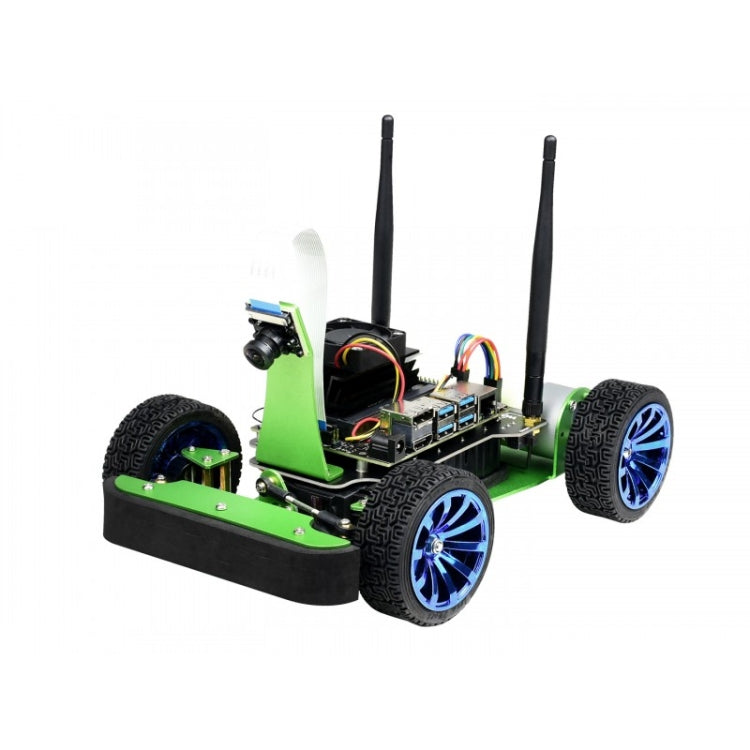

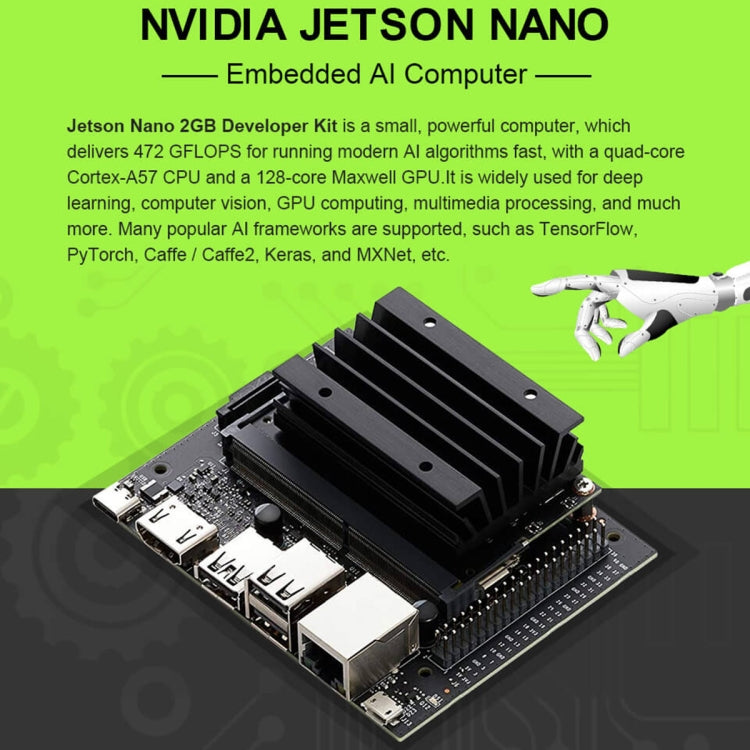

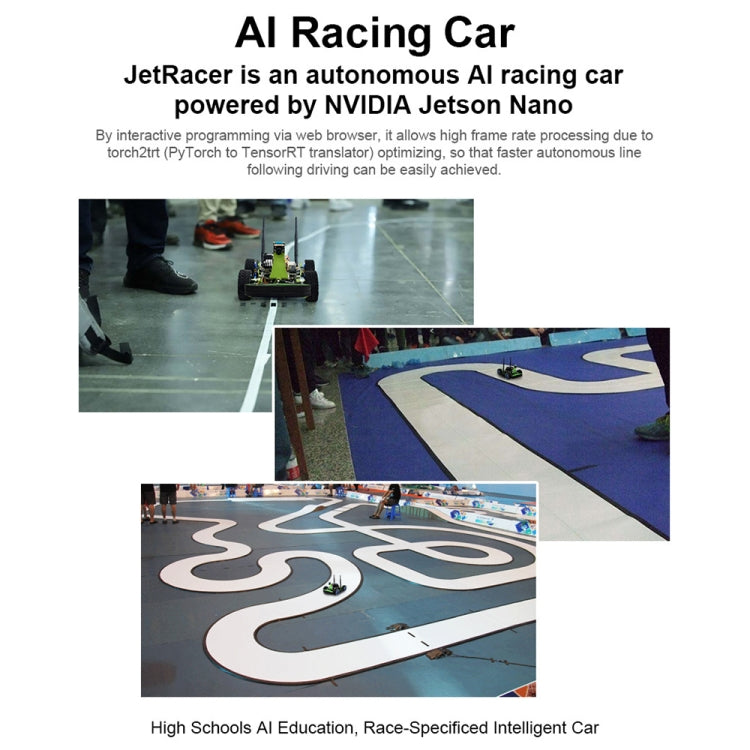

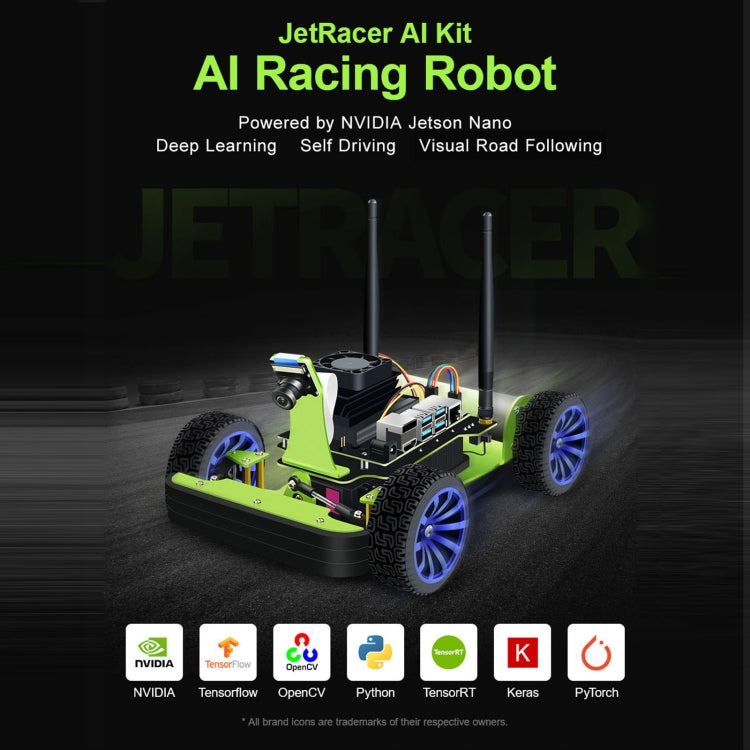

This is an AI racing robot kit based on Jetson Nano 2GB development kit. It supports deep learning, automatic line, autonomous driving and so on.
I notify
We don't provide batteries in AI kit or Acce package due to shipping policy, you need to buy batteries in local market.
Specifications
1. Camera: 8MP HD resolution, 160 degree FOV wide angle camera
2. OLED: 0.91 inch 128 x 32 pixels
3. Wireless: USB
4. Drive type: Ackerman steering / 4WD high speed motors / Front and rear axle differentials
5. Shock absorber: Adjustable oil shock absorbers / 4WD independent suspension
6. Power supply: 8.4V, 4 x 18650 batteries (two in parallel, two in series). Note: 18650 batteries are NOT included.
7. Servo: torque 6kg/cm
8. Frame: Quality sturdy plastic chassis
9. Shockproof: front sponge
10. Program library: JetRacer, DonkeyCar
11. Tip: Competition level; Programming experience required
List of packages
1. Jetson Nano 2GB Developer Kit
2. 64GB Micro SD Card
3. Road frame
4. JetRacer Pro expansion card
5. USB wireless network card
6. IMX219-160 Camera
7. Acrylic Camera Spacer
8. Camera support
9. Wireless Gamepad
10. Cooling fan
11. 6 pin cable
12. Micro SD card reader
13. Wrench
14. Screwdriver x2
15. Charger 8.4V 2A + EU head
16. Screw packaging
17. Track Map

Characteristics
1. Built-in three 18650 batteries, 7800mAh, voltage output up to 12.6V and stronger motor power (batteries not included).
2. Built-in S-8254AA + AO4407A lithium battery protection circuit, with anti-overcharge, anti-over-discharge, anti-over-current and short circuit protection functions.
3. The built-in APW7313 voltage regulator chip can provide a stable 5V voltage to the Jetson Nano.
4. Built-in TB6612FNG dual H-bridge motor driver chip can make the left and right motors work.
5. Built-in 0.91 inch OLED with 128 x 32 resolution, real-time display of car IP address, memory, power, etc.
6. Built-in ADS1115 AD acquisition chip is convenient for real-time monitoring of battery power.
List of packages
1. Jetson Nano 2GB Developer Kit
2. 64GB Micro SD Card
3. JetRacer 6 PCS Metal Kit
4. 2pcs EVA Felt Mat
5. 3D printed engine cover
6. JetRacer Expansion Card
7. IMX219-160 Camera
8. USB wireless network card
9. Acrylic piece
10. Servo support
11. Metal gear motor 2PCS
12. Tire 4 PCS
13. Coupler 2PCS
14. MG996R Servo Motor
15. MG996R Servowheel
16. Steering knuckle 2PCS
17. Ball bearing 4PCS
18. M3 Plastic Ball Joint 4pcs
19. M3 traction bar 2PCS
20. Charger 12.6V 2A + EU head
21. Wireless Gamepad
22. 6 pin cable
23. Key 2 PCS
24. Screwdriver 2 PCS
25. Mini cross wrench sleeve
26. Cooling fan 4010
27. Micro SD card reader
28. Screw pack
29. Track Map

Characteristics
The intelligent robot is a project of electronics enthusiasts and there have been several Raspberry Pi Zero W, 3B+, 4B based robots in the Waveshare product line. Now, here comes the Pico version: PicoGo!

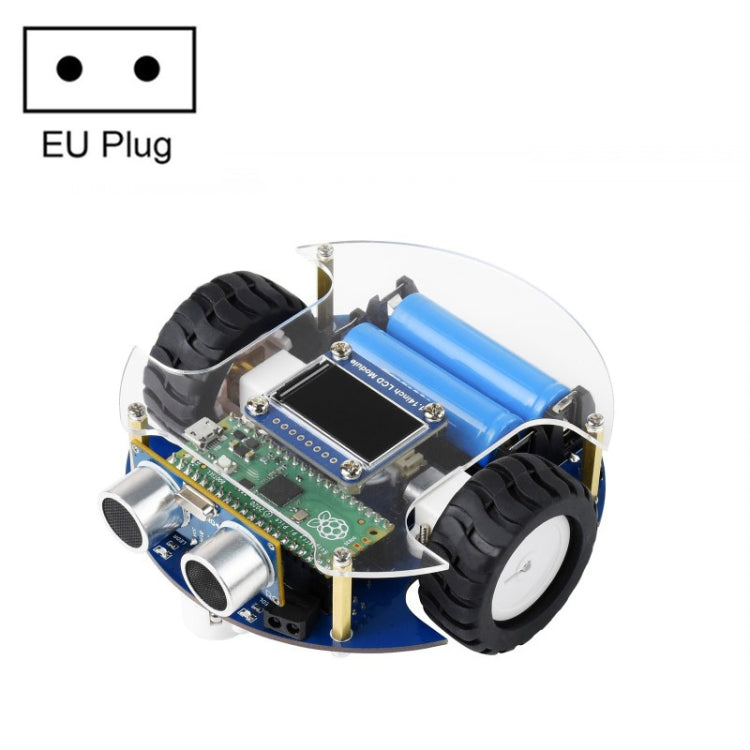

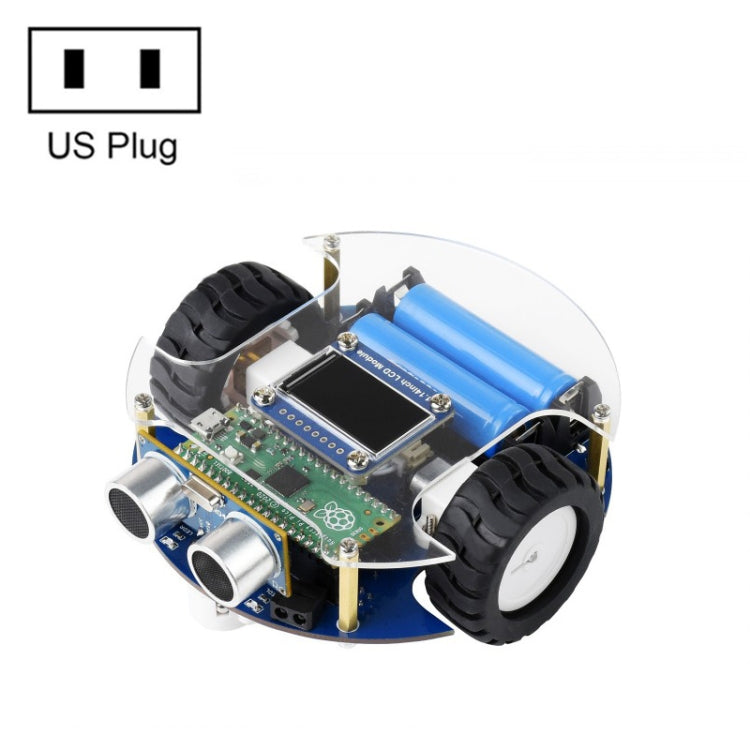

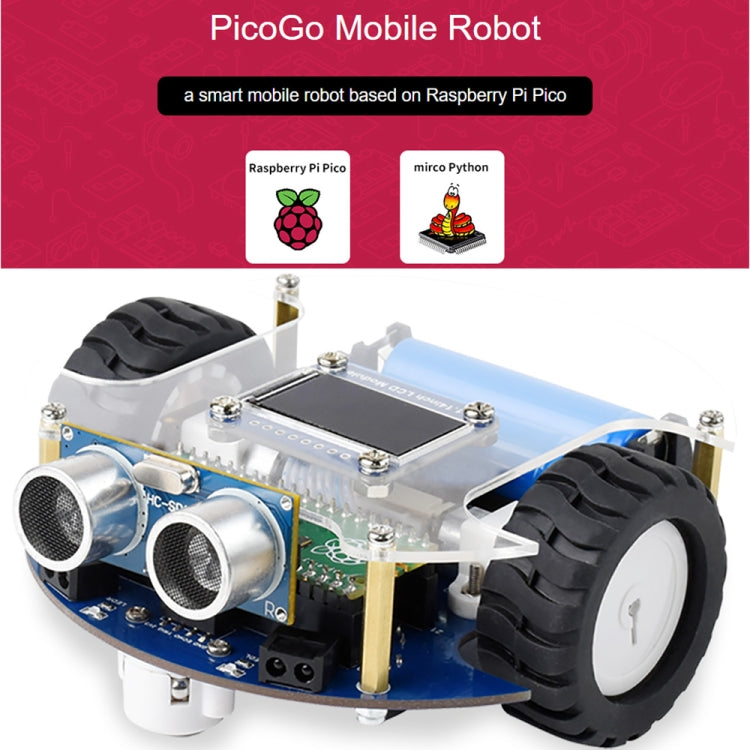

PicoGo is an intelligent mobile robot based on Raspberry Pi Pico, it includes ultrasonic module, LCD module, Bluetooth module, line following module and obstacle avoidance module, all these functions are highly integrated to easily achieve IR obstacle avoidance, automatic line following, BT/IR remote control and more. With various advanced features, it will help you get started quickly with intelligent robot design and development.
Features of the PicoGo intelligent mobile robot:
1. Standard Raspberry Pi Pico header, support Raspberry Pi Pico series
2. Battery protection circuit: Overcharge/discharge protection, overcurrent protection, short circuit protection, reverse-proof, more stable and safe operation
3. Charging/discharging circuit, allows programming/debugging simultaneously while charging
4. 5-channel infrared sensor, analog output, combined with PID algorithm, stable line tracking
5. Built-in multiple intelligent robot sensors such as line tracking, obstacle avoidance, no more messy wiring
6. 1.14 inch IPS colorful LCD display, 240 x 135 pixels, 65,000 colors
7. Integrate BT module, enable remote operations such as robot movement, RGB LED display color, buzzer, etc. by using mobile phone APP
8. N20 micro gear motor, with metal gears, low noise, high precision
9. Colorful RGB LED, really cool!

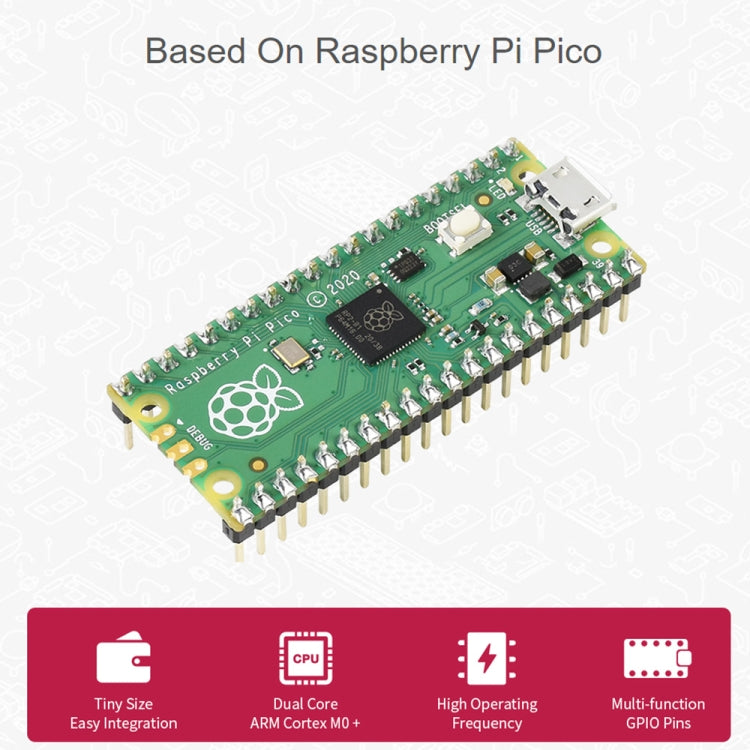

Raspberry Pi Pico Controller Board Features:
1. RP2040 microcontroller chip designed by Raspberry Pi in the UK
2. Dual-core Arm Cortex M0+ processor, flexible clock up to 133 MHz
3. 264KB of SRAM and 2MB of onboard Flash memory
4. USB 1.1 with host and device support
5. Low-power sleep and dormancy modes
6. Drag-and-drop programming via USB mass storage
List of packages
1. Raspberry Pi Pico (pre-soldered header) x1
2. PicoGo x1 Base Board
3. PicoGo Acrylic Panel x1
4. 1.14 inch LCD module x1
5. Ultrasonic sensor x1
6. Power supply 5V 3A x1
7. IR remote control x1
8. USB-A to micro-B cable 1.2m x1
9. 5cm 8-pin PH2.0 cable with opposite side connectors x1
10. Mini cross wrench sleeve x1
11. Screwdriver x1
12. Screws and spacers pack x1

Product information
This is an AI Racing Robot kit based on the Jetson Nano Developer Kit. It supports deep learning, automatic line, autonomous driving and so on.
Specifications
1. Camera: 8MP HD resolution, 160 degree FOV wide angle camera
2. OLED: 0.91 inch 128 x 32 pixels
3.Wireless: AC8265
4. Drive type: Ackerman steering / rear-wheel drive with double gear motor
5. Power supply: 12.6V, 3 x 18650 batteries (connected in series). Note: 18650 batteries are NOT included.
6. Engine:
- 37-520 DC gear motor
- Reduction rate 1:10
- Idle speed 740 rpm
7. Frame: Aluminum alloy frame
8. Program library: JetRacer, DonkeyCar
9. Tip: Competition level; Programming experience required
List of packages
2. 2pcs EVA Felt Mat
3. 3D printed engine cover
4. JetRacer Expansion Card
5. IMX219-160 Camera
6. Wireless-AC8265
7. Acrylic piece
8. Servo support
9. Metal gear motor 2PCS
10. Tire 4 PCS
11. Coupler 2PCS
12. MG996R Servo Motor
13. MG996R Servowheel
14. Steering knuckle 2PCS
15. Ball bearing 4PCS
16. M3 plastic ball joint 4pcs
17. M3 pull rod 2PCS
18. 12.6V charger + EU head
19. Wireless Gamepad
20. 6 pin cable
21. Key 2 PCS
22. Screwdriver 2 PCS
23. Mini cross wrench sleeve
24. Cooling fan 4010
25. Micro SD card reader
26. Screw pack
27. Track Map

Characteristics

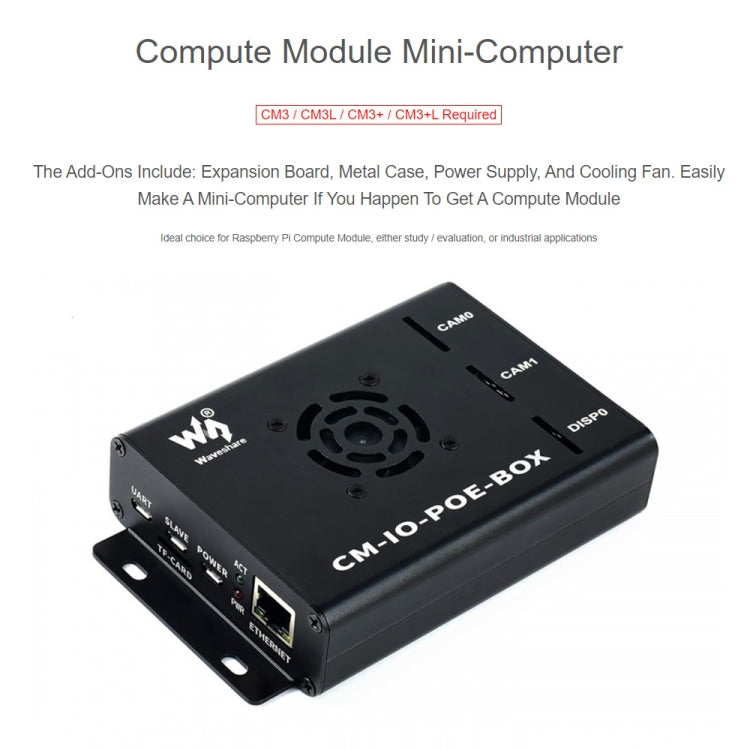

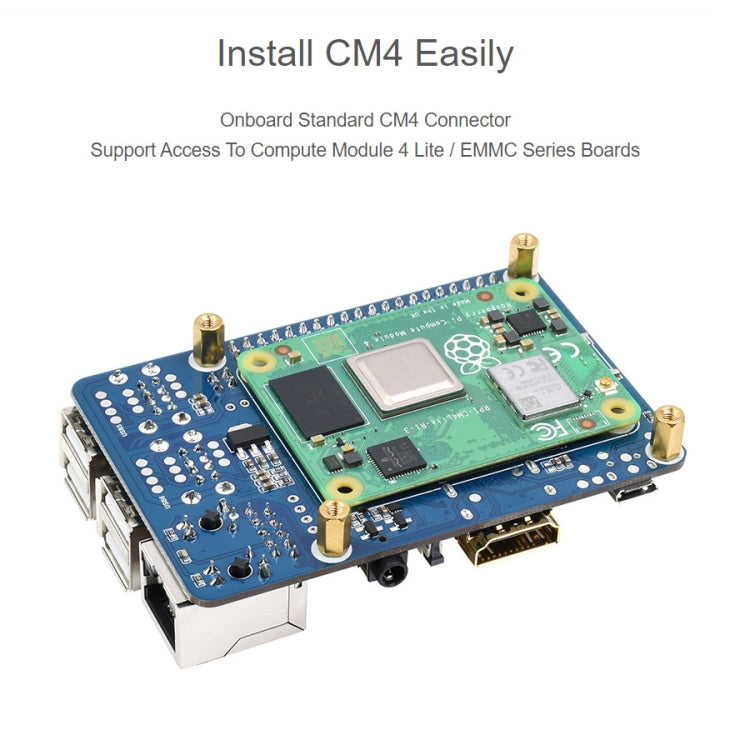

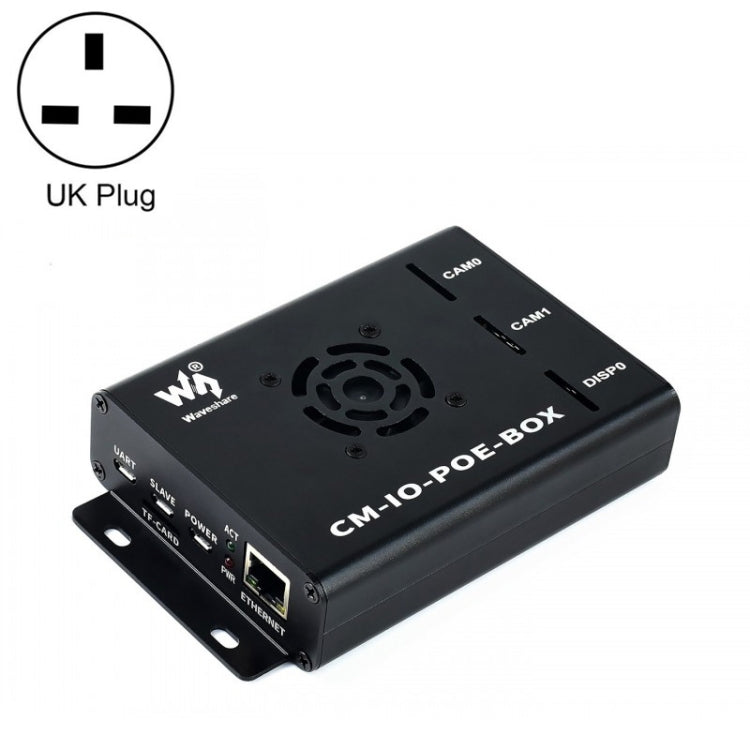

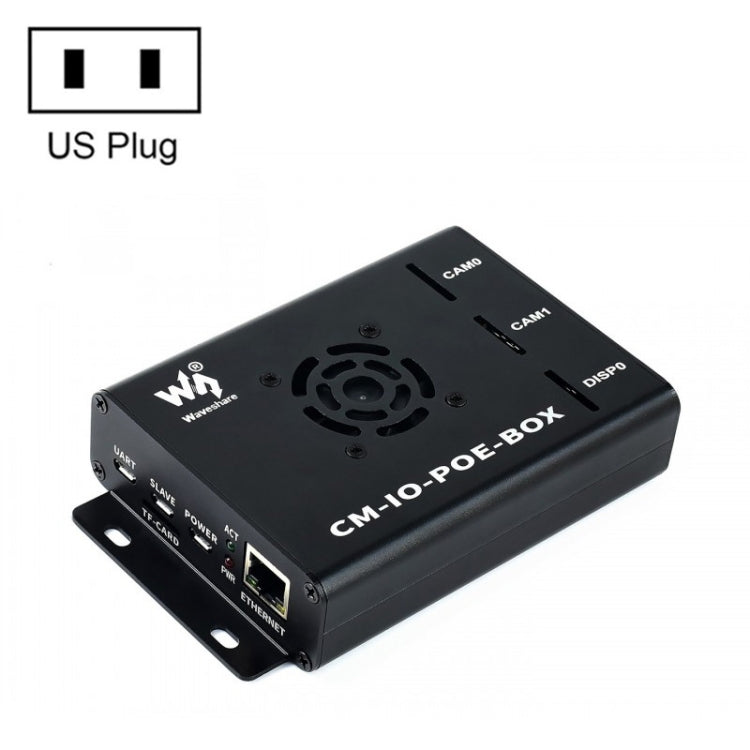

The Compute Module PoE board is a development board that can connect a Raspberry Pi compute module and utilize the resources of Pi more flexibly. With PoE (Power over Ethernet) function and integrated versatile peripheral interfaces, it is suitable for evaluating Raspberry Pi compute module, also it is an ideal choice for end products.
1. Raspberry Pi GPIO header, for connecting various types of Raspberry Pi HATs.
2. 10/100M Ethernet port with auto-negotiation, with PoE enabled.
3. 4 USB ports, allowing you to connect more USB devices.
4. 2 CSI camera interfaces.
5. Built-in HDMI/DSI interfaces for connecting displays.
6. Built-in USB TO UART, for serial debugging.
7. Cooling fan interface, auto run when power on Or controlled by IO pin.
8. Adopt isolated SMPS (switching mode power supply).
Specifications
1. Power: Micro USB port / PoE Ethernet port
2. PoE power input: 37V ~ 57V DC in
3. PoE power output: DC output 5V 2.5A
4. Operating temperature: -25 degrees C ~ 80 degrees C
5. Network standard: 802.3af PoE standard
6. Dimensions: 144mm x 88mm
7. Mounting hole size: 3.2mm

Characteristics

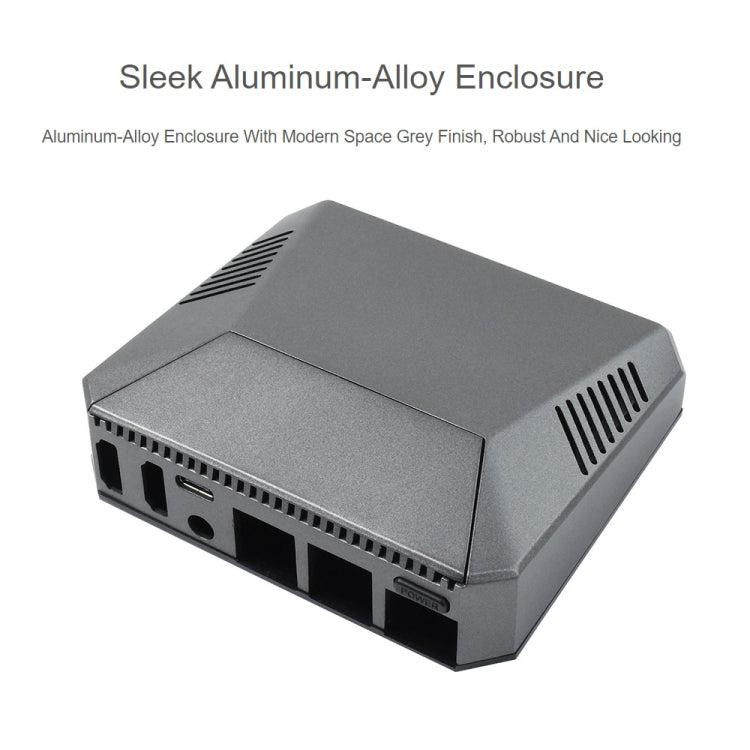

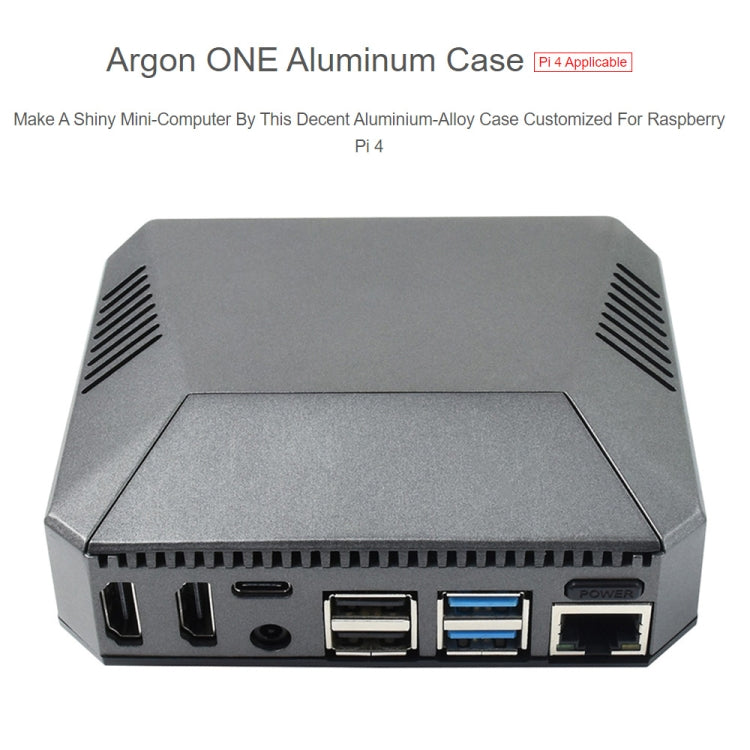

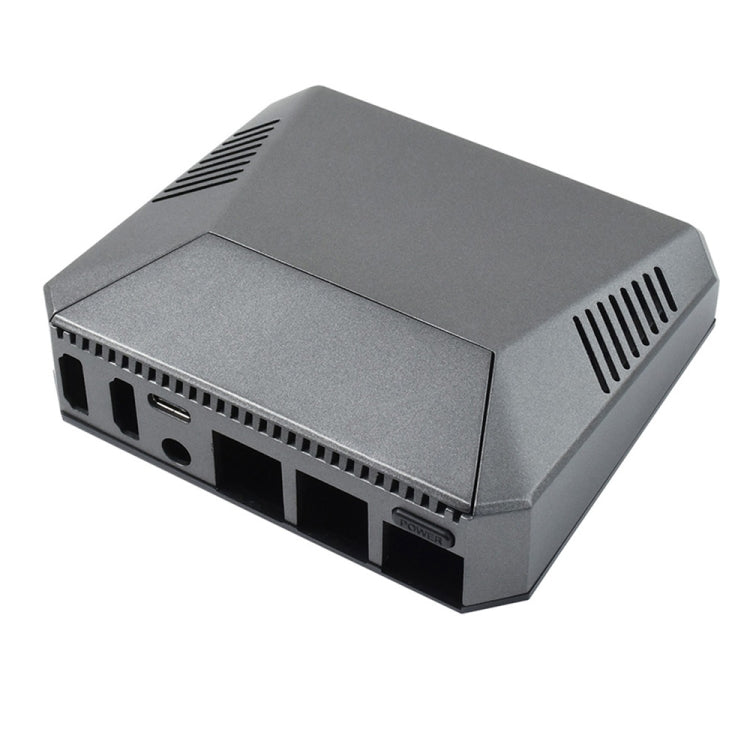

1. Build a shiny mini computer with this discreet aluminum case custom-made for the Raspberry Pi 4
2. Stylish Aluminum Alloy Housing: Aluminum housing with modern space gray finish, sturdy and beautiful

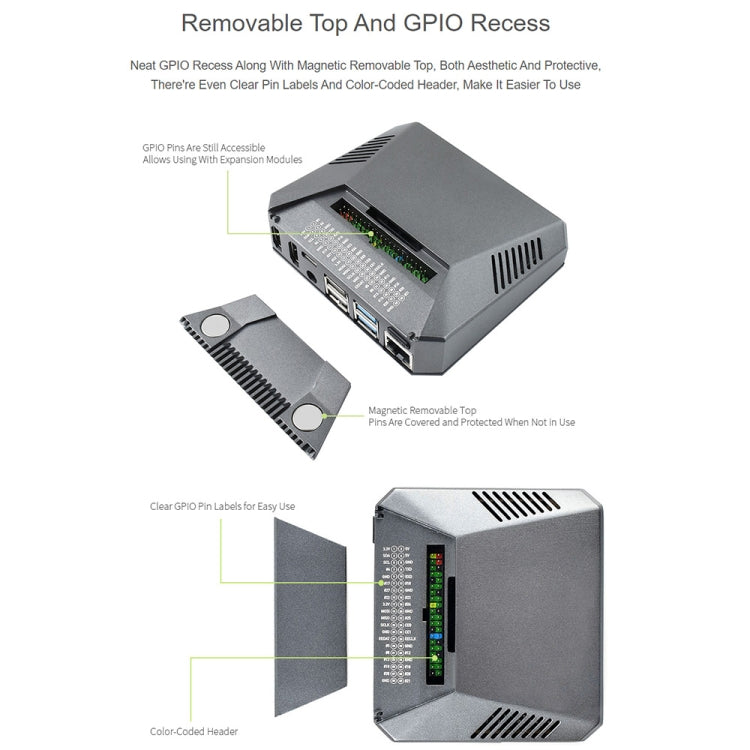

3. Removable top and GPIO recess: The neat GPIO recess and removable magnetic top are both beautiful and protective, and there are also clear pin labels and color-coded headers for ease of use.
4. "Always On" function: automatically starts the Pi and runs the fan when powered on, enabled via jumper
5. Amazing Temperature Management: The extended riser makes the aluminum case a great heat sink to transfer heat from the card, combined with a cooling fan and multiple vents, the cooling can't be better
6. Clean cable management: All ports are accessible from the back, minimizing cable clutter
7. Convenient and Safe Power Button: The dedicated power button, combined with a one-line script, turns on/off your computer while keeping your stored files safe, and also supports customized functions.
8. Easy to assemble, no messy lines: Comes with two PCB boards, easy to build, no messy lines, no misconnections, more stable and safer
9. Proper bottom design: TF card slot on the bottom, plus two vents and four rubber feet

Product information

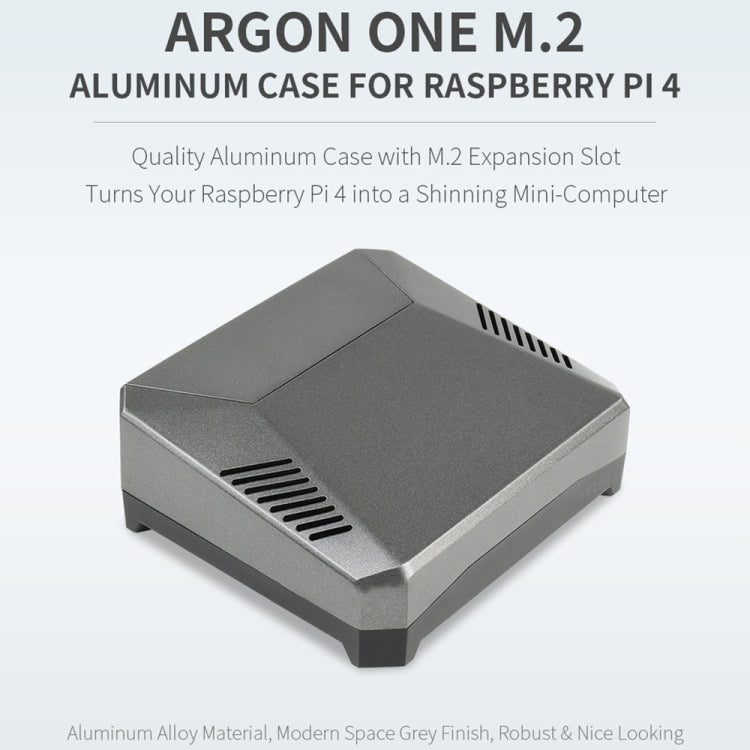

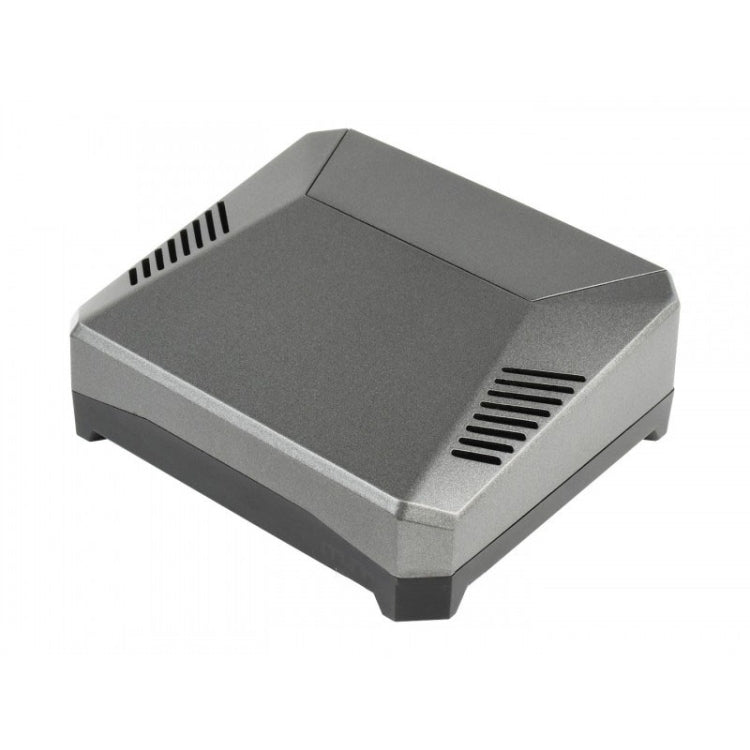

The PI4-CASE-ARGON-ONE-M.2 metal case can greatly accelerate the boot and storage speed of the Raspberry Pi, that is, extend the M.2 interface through the USB interface and use an external SSD as the main storage for travel. In this case, the Raspberry Pi 4 can be booted through the USB interface, which greatly improves the read and write speed and makes the boot speed much faster than using the SD card.
Characteristics
1. Aluminum alloy material, modern space gray finish, sturdy and good looking

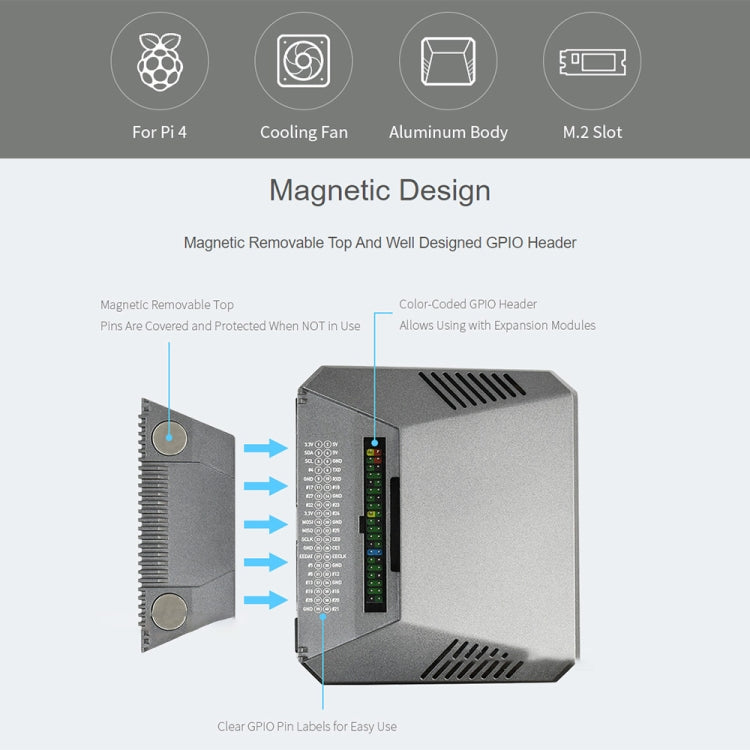

2. Magnetic Design: Removable magnetic top and well-designed GPIO header

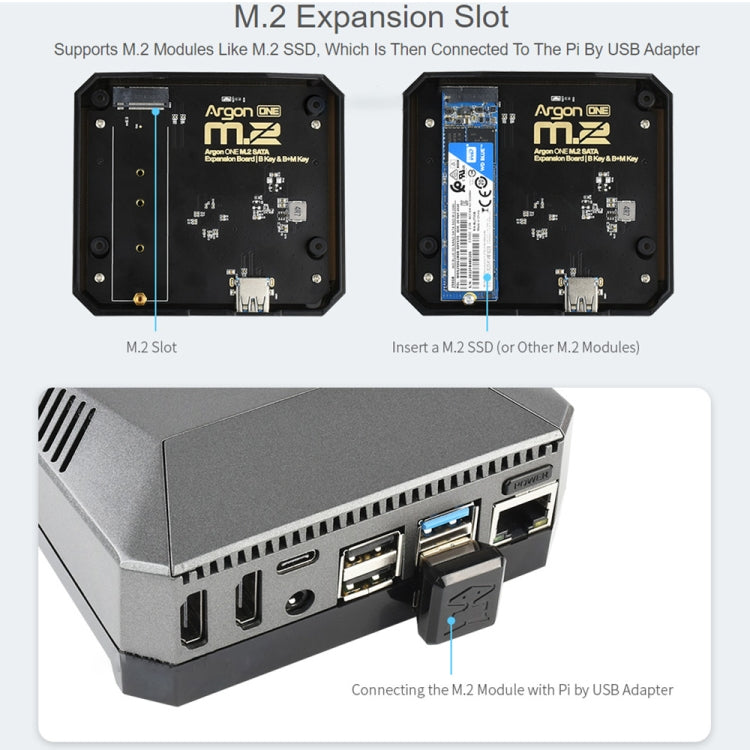

3. M.2 expansion slot: Supports M.2 modules such as M.2 SSD, which is then connected to the Pi adapter via USB
4. Active + Passive Cooling: The entire top of the case acts as passive cooling for the Raspberry Pi, combined with the included cooling fan and multiple vents for airflow, provides excellent cooling effect.
5. Neat cable management: All ports are accessible on the back, minimal cable clutter
6. Appropriate bottom design: two air vents and four anti-slip feet, simple but useful
7. Easy assembly: only a few steps are needed, no messy wiring, no wrong connection, more stable, more secure

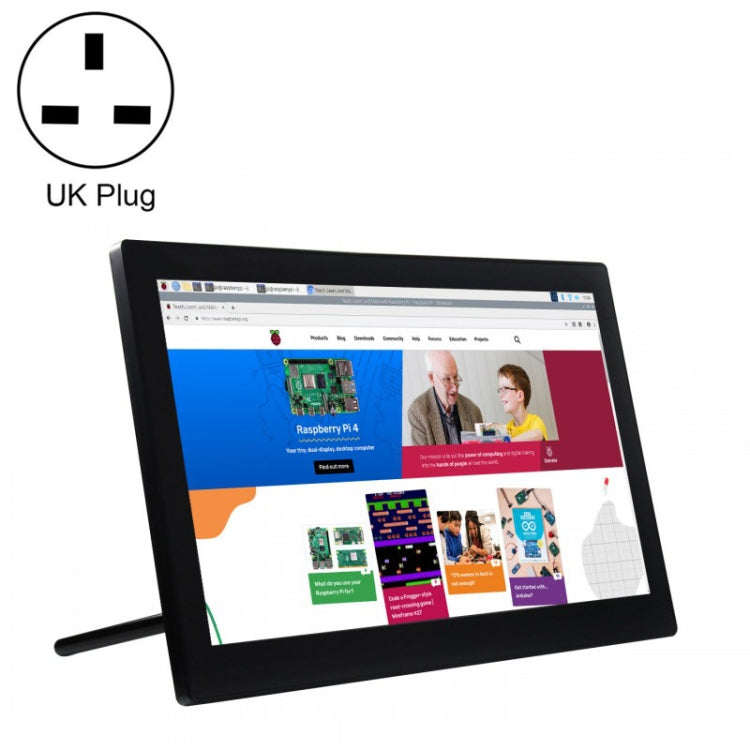

Features

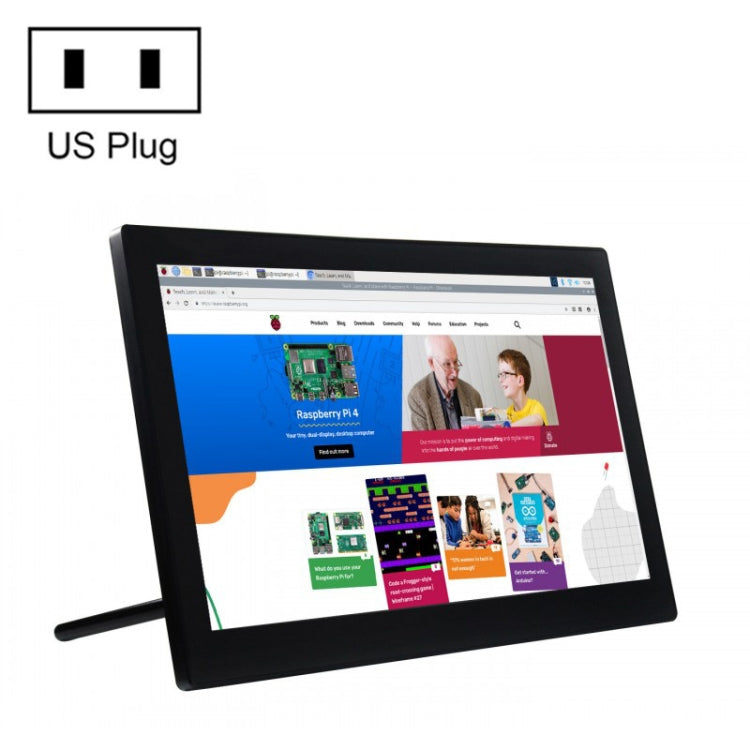

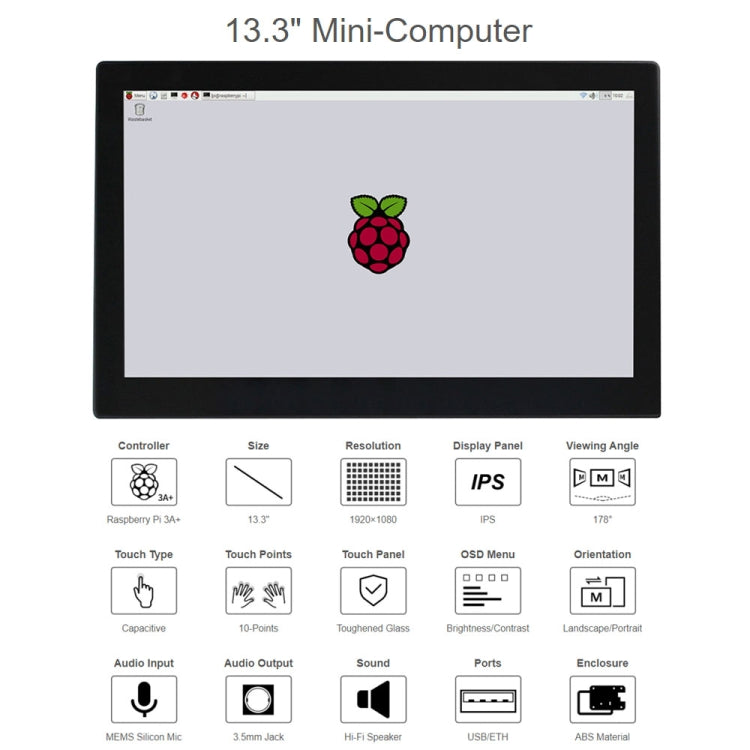

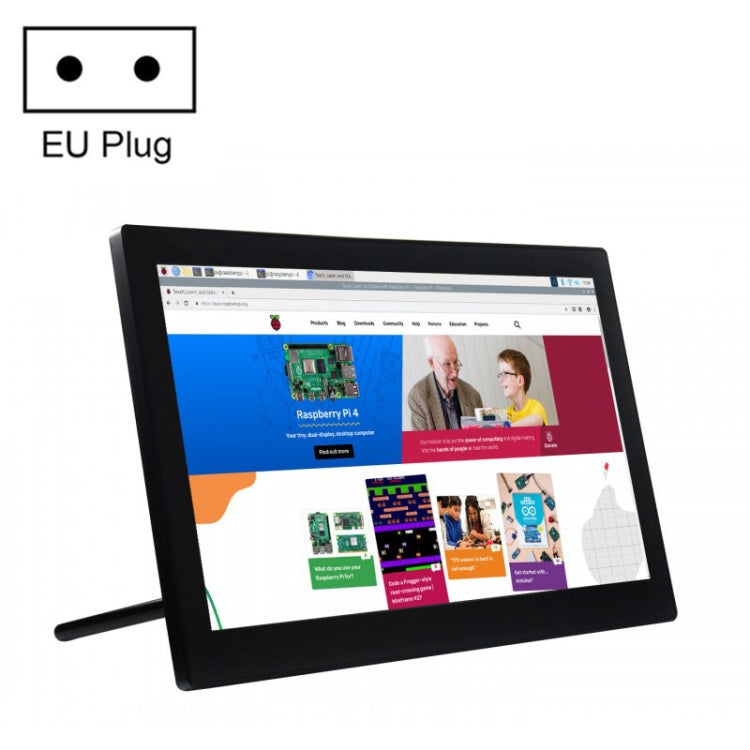

1. 13.3 inch IPS screen,1920 x 1080 high resolution.
2. Embed Raspberry Pi 3A+ as controller.
3. Toughened glass capacitive touch panel, 6H hardness, supports up to 10-points touch.
4. Embedded ferrite Hi-Fi speaker.
5. Embedded microphone and speaker, adopts snowboy hotword detection engine.
6. 75x75mm spacing mounting holes (M4 screw hole).
7. Comes with a 75 degree tilt angle stand.

Package List
1. 13.3 inch PiPad x 1
2. 12V power adapter x 1
3. Card reader x 1
4. Micro SD card x 1

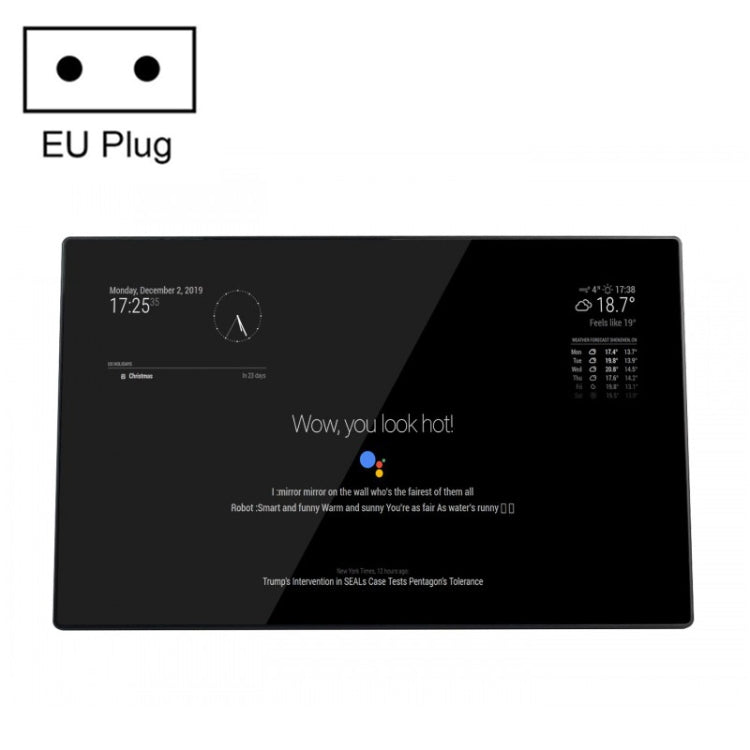

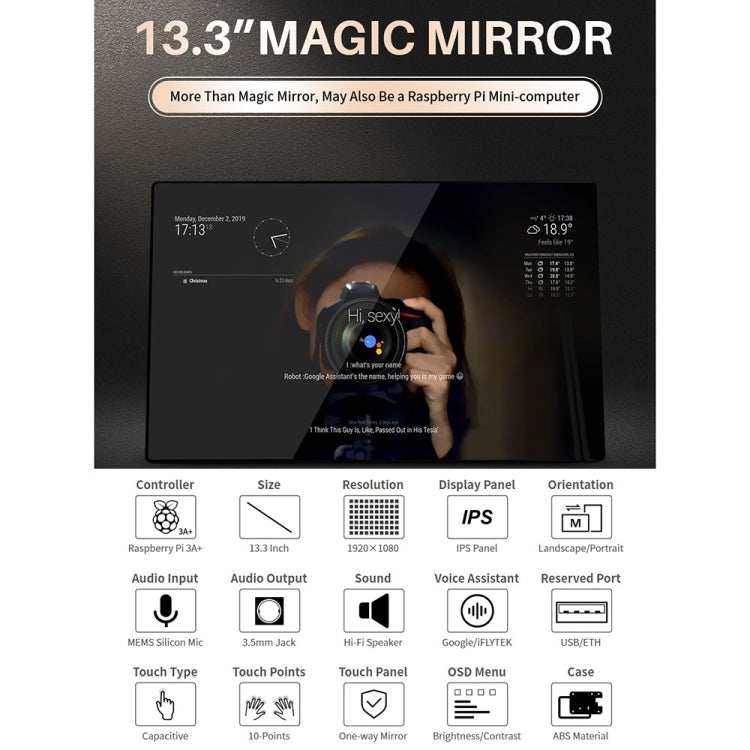

Characteristics

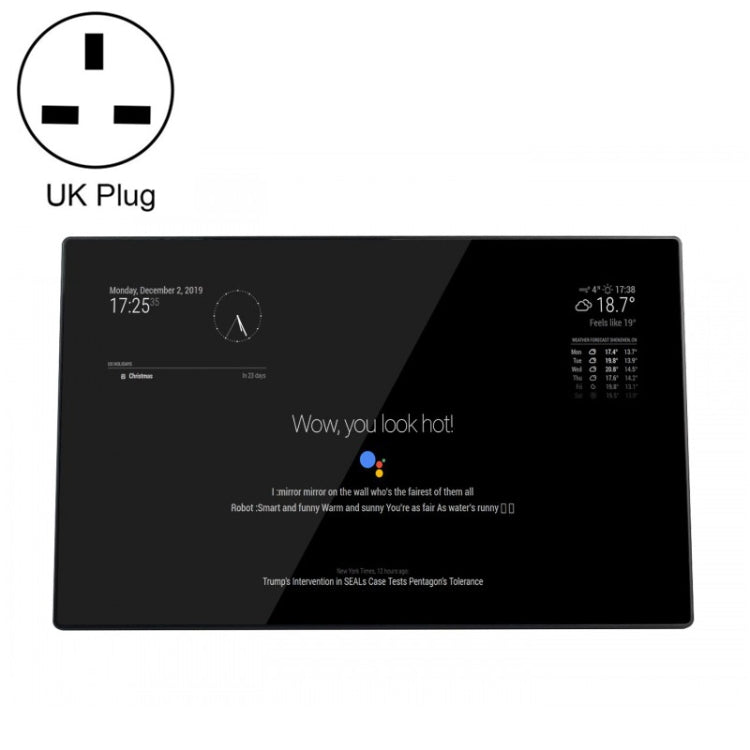

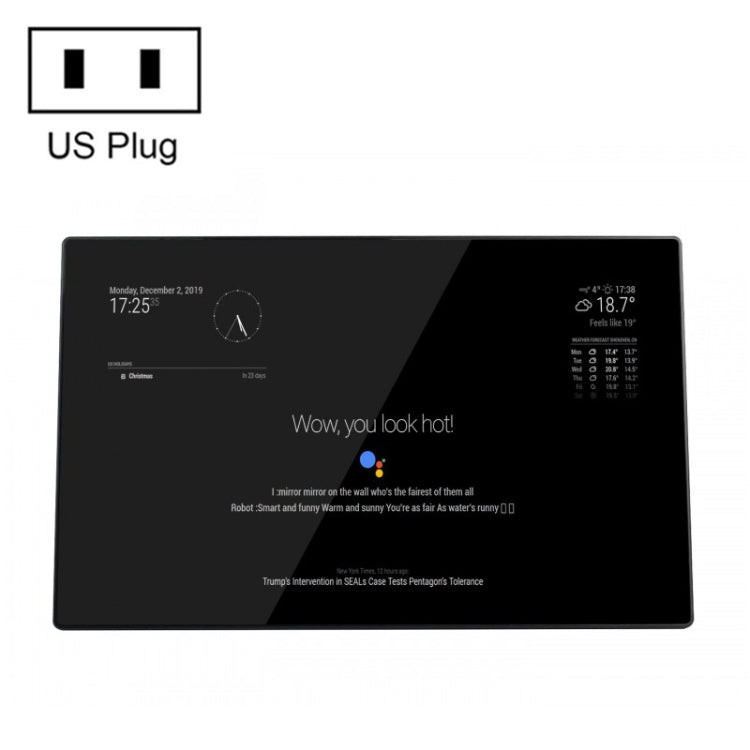

1. 13.3 inch IPS screen, 1920 x 1080 high resolution.
2. Incorporate Raspberry Pi 3A+ as controller
3. One-way mirror, can display news, weather and time.
4. Tempered glass capacitive touch panel, 6H hardness, supports up to 10 points touch.
5. Built-in ferrite Hi-Fi speaker.
6. Built-in microphone and speaker, adopt Snowboy Hotword detection engine.
7. Mounting holes with 75 x 75mm spacing (M4 screw hole) for general wall mounting.
8. Comes with a 75 degree tilt angle stand.
List of packages
1. 13.3 inch magic mirror x 1
2. 12V Power Adapter x 1
3. Card reader x 1
4. Micro SD card x 1

Characteristics

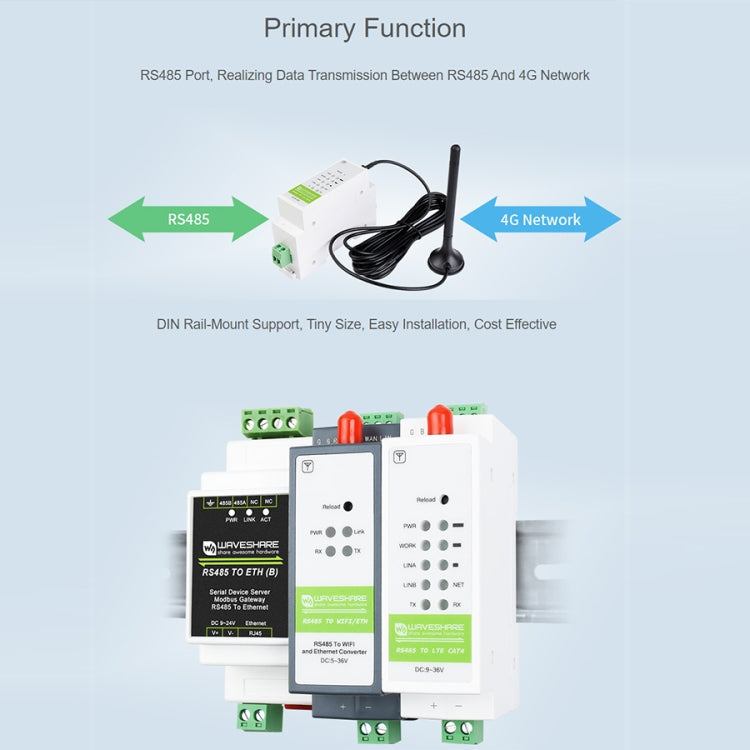

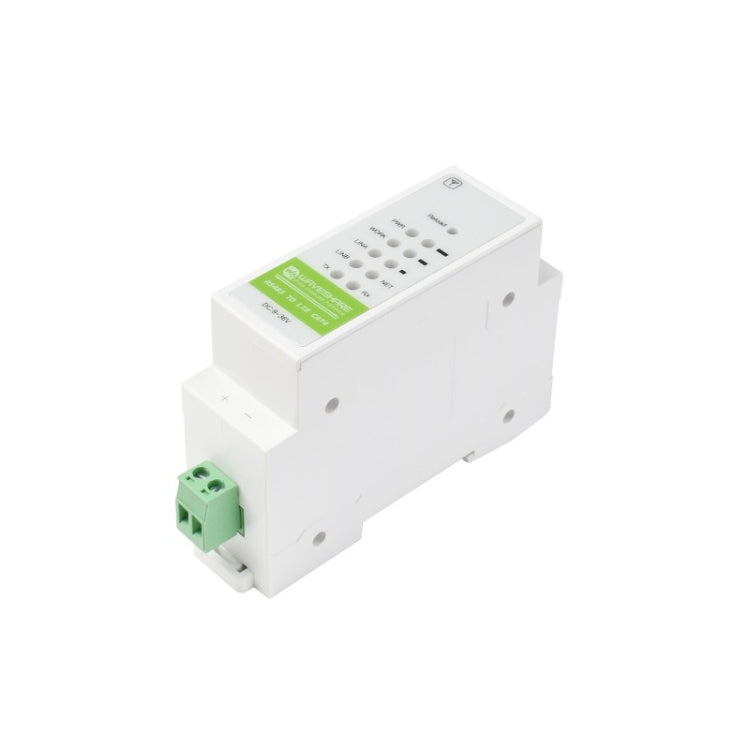

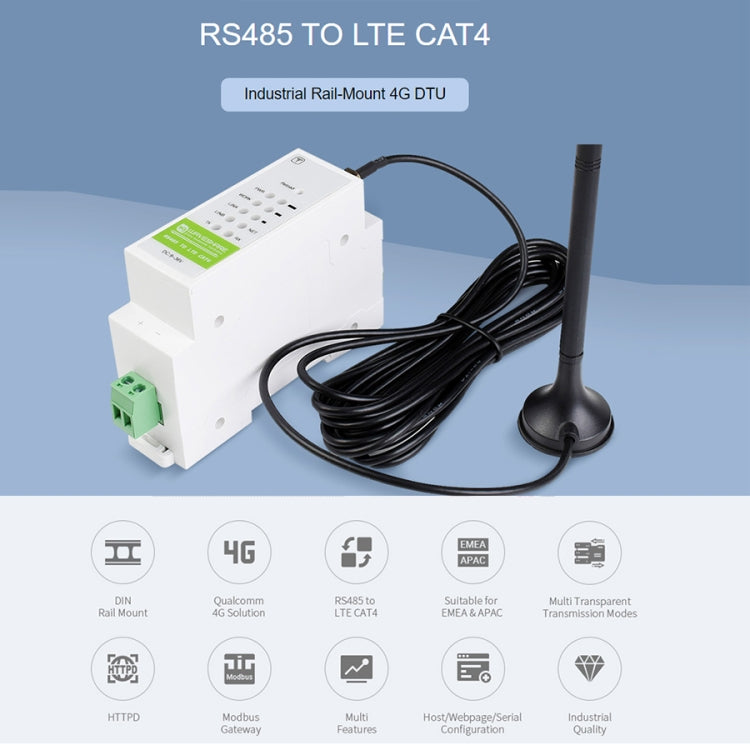

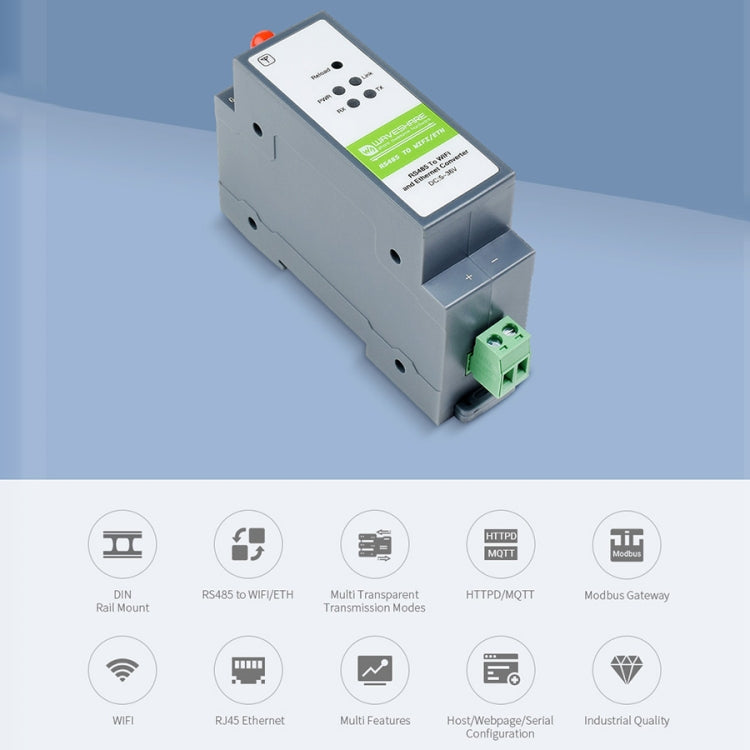

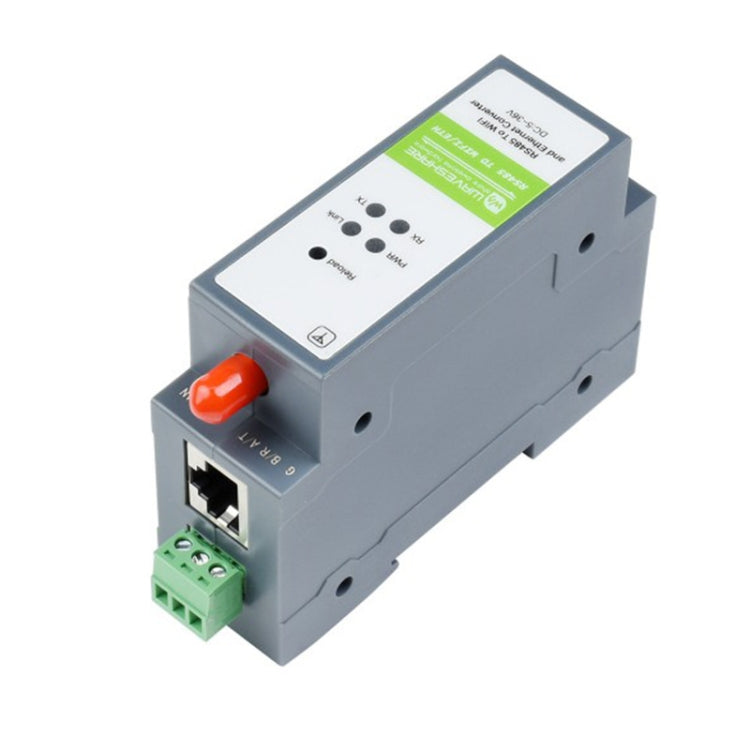

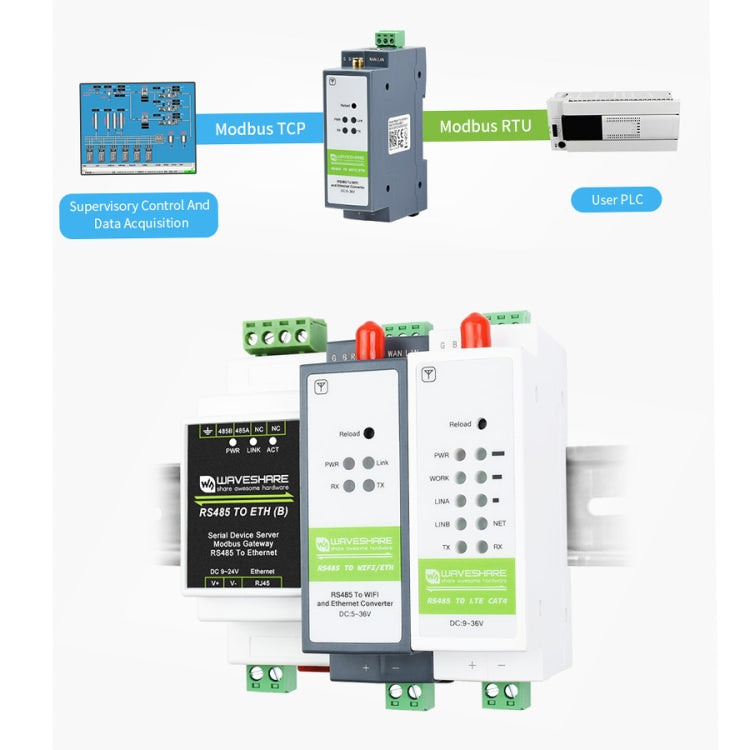

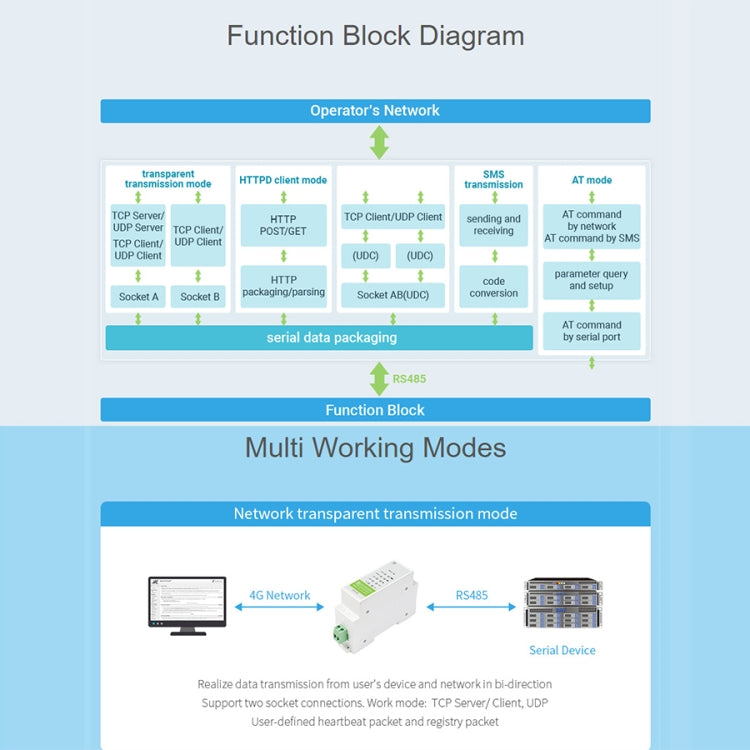

This is a RS485 IoT gateway/data acquisition device designed for industrial environment. It combines multiple functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to HTTPD client, etc. With RS485, WIFI and Ethernet ports, the module can realize functions such as serial to WIFI, serial to Ethernet, Ethernet to WIFI and so on. Using screw terminals for power input, it supports 5~36V wide range power supply. Rail-mount V0 flame retardant case design, small size, easy to install. It is suitable for applications such as data acquisition, IoT gateway, IoT safety and security, and intelligent instrument monitoring.
Specifications
Scheme:
1. Communication interface: RS485, screw terminal
2. Power supply: 5~36V DC, screw terminal
3. Case: PC+ABS, V0 flame retardant grade
4. Dimensions: W x D x H: 109.66 x 28 x 64.71 mm
Communication:
1. Ethernet: 10/100M auto-negotiation RJ45 connector
2. WIFI: 802.11b/g/n compliant
3. Serial port: RS485 interface (overcurrent, lightning, overcurrent protection)
Wireless Specifications:
1. Frequency band: 2.412~2.484GHz
2. Wireless network: Station/AP/AP+Station mode
3. Security mechanism: WPA-PSK / WPA2-PSK
4. Encryption type: TKIP / AES
5. Transmission power:
- 802.11b: +19dBm (11Mbps)
- 802.11g: +18dBm (54Mbps)
- 802.11n: +17dBm (HT20, MCS7); +17dBm (HT40, MCS7)
6. Sensitivity reception:
- 802.11b: -89dBm (11Mbps)
-802.11g: -81dBm (54Mbps)
- 802.11n: -73dBm (HT20, MCS7); -71dBm (HT40, MCS7)
Serial Specifications:
1. Baud rate: 300 ~ 460800 bps
2. Parity bits: none, odd, even, sign, space
3. Data bit: 5 ~ 9 bit
4. Flow Control: N/A

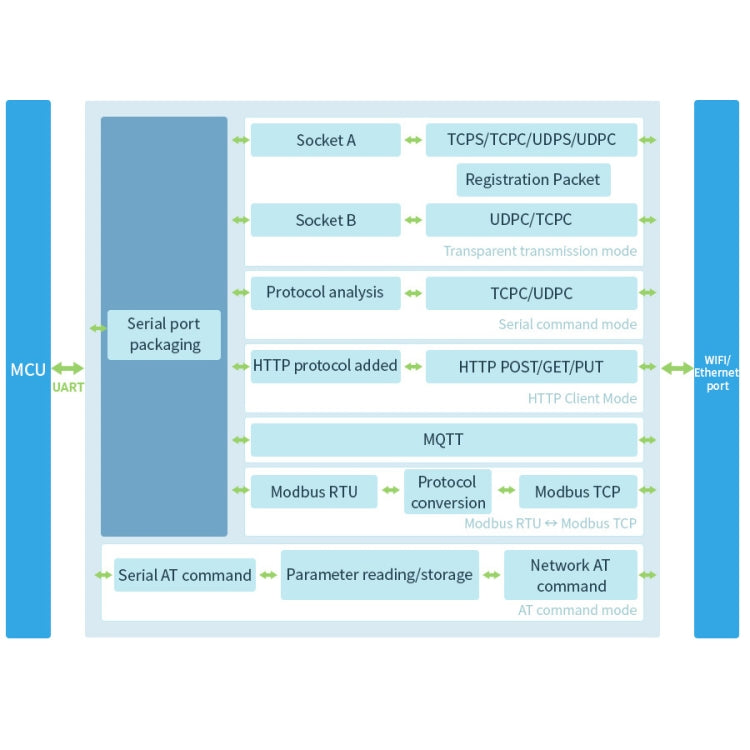

Software
1. Protocol: TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP/MQTT
2. Configuration: Host, Web Browser, Serial AT Command
3. Communication method: TCP/IP direct communication, VCOM
4. Operation mode: Transparent transmission, serial command, HTTPD client, Modbus TCP to Modbus RTU
Environmental requirements
1. Working temperature: -40 ~ 85 degrees C
2. Storage temperature: -45 ~ 125 degrees C
3. Humidity range: 5% ~ 95% RH
List of packages
1. RS485 TO WIFI/ETH x 1
2. Antenna x 1

Specifications
1. CM4 Socket: Available on all Compute Module 4 variants
2. Network: RJ45 Gigabit Ethernet connector, 100M Ethernet RJ45 connector
3. USB: USB 2.0 Type-A x 2
4. Connector: Isolated RS485 x 4, Power screw terminal x 1
5. Camera: MIPI CSI-2 x 2 port (1.0mm 15-pin FPC connector)
6. Video: HD-MI interface x 1, support 4K 30fps output
7. RTC: Real-time clock with battery power and ability to activate the computing module 4
8. Storage: MicroSD card slot for the Compute Module 4 Lite variant (without eMMC).
9. Fan head: Allows speed adjustment, 5V
10. Indicator: Power indicator x 1, CM4 status indicator x 1,
User LED x 2, RS485 communication indicator x 8
11. Power input: 7-36V
12. Dimensions: 123 x 98 x 32 mm
List of packages
1. CM4-ETH-RS485-BASE-B x 1
2. Metal case (upper and lower) x 1
3. Fan x 1
4. Power supply 12V 2A x 1
5. Screwdriver x 1
6. Antenna connector rubber plug x 1
7. Screw pack x 1

1. Zero can be easily connected via specially designed connectors
2. Easily compatible with Raspberry Pi 3B / 3B+ board interfaces
3. Same height as 3B GPIO header, easily connect with 3B series HAT or development projects
4. Built-in 4-channel USB ports, compatible with USB 2.0 / 1.1 transmission
5. Built-in RTL8152B Ethernet chip, support 1-channel RJ45 Ethernet port, 10/100M adaptive

1. Built-in standard CM4 connector, support CM4 Lite/eMMc series card access with 64-bit Quad Core Cortex A72 processor, more powerful performance
2. Easily compatible with Raspberry Pi 3B / 3B+ board interfaces
3. Built-in headphone jack (extended by USB)
4. Built-in 4-channel USB ports, compatible with USB 2.0 / 1.1 transmission
5. Built-in RJ45 Gigabit Ethernet port, 10/100/1000M adaptive
6. Built-in PoE header, for connecting PoE HATs

Functionality
1. Poe UPS Base for CM4: Uninterruptible power supply, powering the CM4 while charging
2. Connection with compute module 4: Standard CM4 socket and Raspberry PI 40pin GPIO header. Suitable for compute module 4 lite/EMMC Module
3. Uninterrupted Power: It can charge the batteries and provide power output for the system simultaneously from the external power supply. Automatically switch to battery output If the external power supply is not available, it keeps the system running smoothly
4. Multiple Power Options:
- Three external power options: USB interface, wide voltage DC and POE
- When connected to external power, the system will be powered and the battery will be charged at the same time, and the battery will be in a disconnected state after being fully charged, so as to avoid the damage to battery life caused by frequent charging and discharging
- When the external power supply is insufficient, the battery will provide power output together with the external power supply at the same time to ensure the normal operation of the system
- When external power is connected, the system will continue to work normally even when the battery fails or is removed. When external power is disconnected, it will automatically switch to battery output without interrupting the system operation
5. Safe and stable circuit design: Overload/discharge, overvoltage, short circuit and reverse-proof protection circuits
Together with independent resettable fuse for each battery, more safe and stable
6. Real-time monitoring: Monitoring battery voltage, current, power and remaining capacity via I2C. (When the voltage is too low, you can save the files properly and then shut down the system by software, to avoid any data loss)
Note: 18650 batteries are not included
Specifications
1. CM4 Company: Suitable for all variants of the calculation module 4
2. Battery support: Parallel 18650 lithium battery x 3 (not included)
3. Networking: RJ45 Gigabit Ethernet connector, integrates 802.3AF compliant POE circuit (5V/2.5A)
4. USB: USB 2.0 Type A ?? 4
5. Connector:
- Raspberry Pi 40pin GPIO header
- M.2 M key slot, for connecting NVME SSD or communication module with M.2 M key interface
6. Display: MIPI DSI Port X 1 (22pin 0.5mm FPC connector)
7. Camera: MIPI CSI-2 X 2 port (22pin 0.5mm FPC connector)
8. Video: HDMI X 2, supports 4K 30fps output
9. RTC: Real-time clock with battery socket and ability to wake up the computing module 4
10. Storage: microSD card socket for the Compute Module 4 lite (without EMMC) variants
11. Fan: Allows speed adjustment and measurement, 5V / 12V
12. Indicator:
- M.2 status LED
- CM4 status LED
13. Power input7-36V
14. Dimensions: 175.0 x 108.0 mm
