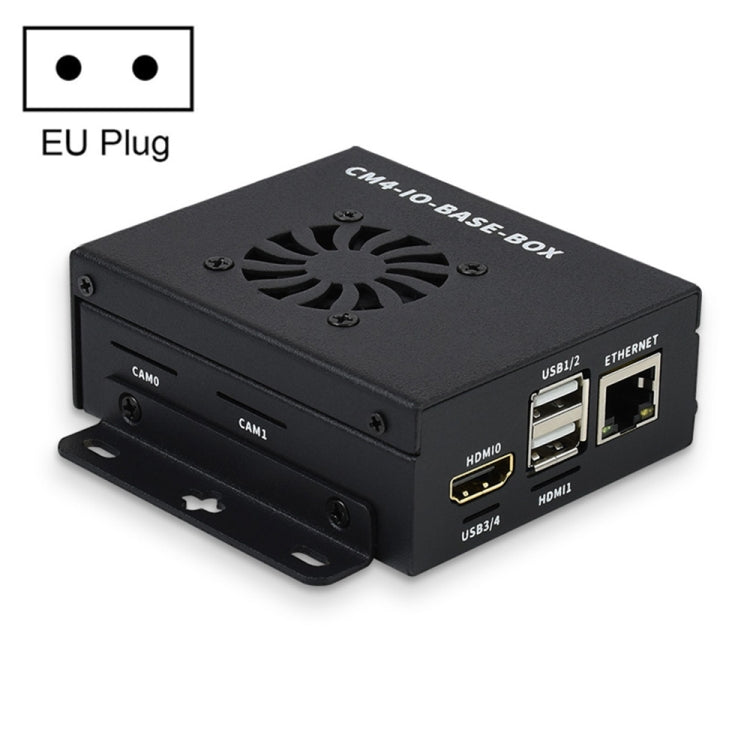

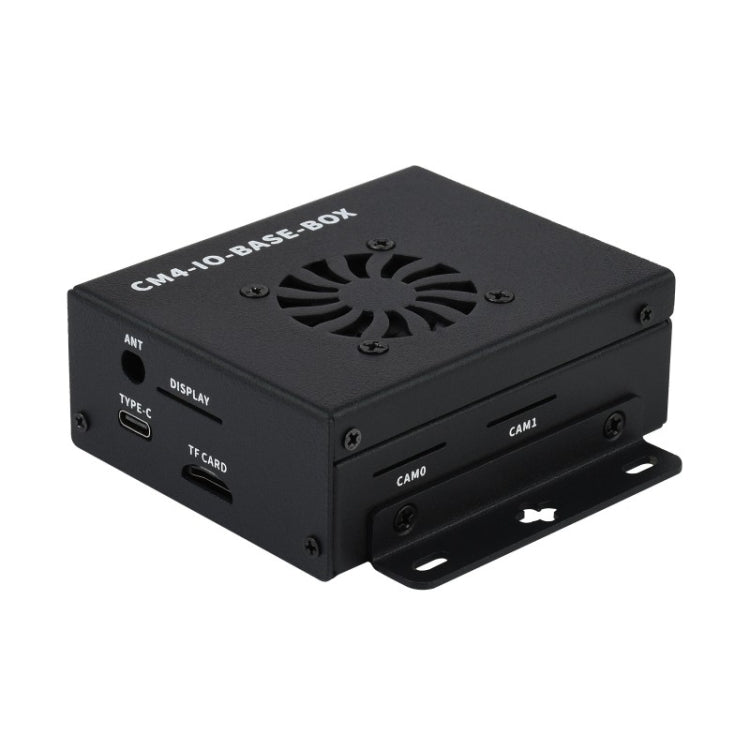

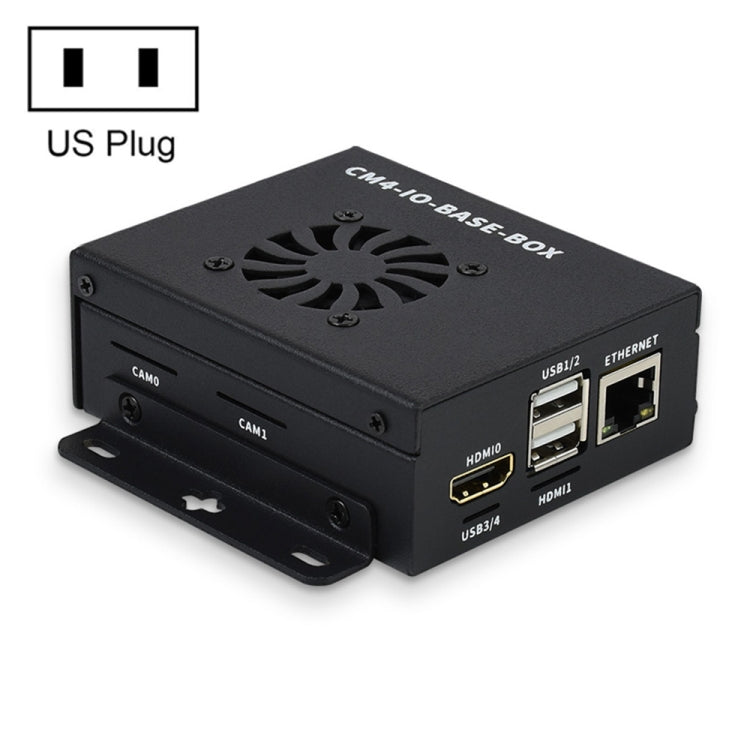

Waveshare Mini IO Board Lite Ver Mini Computer Base Box with Metal Case and Cooling Fan for Raspberry Pi CM4, IO Board Lite Ver

Waveshare Mini IO Board Lite Ver Mini Computer Base Box with Metal Case and Cooling Fan for Raspberry Pi CM4, IO Board Lite Ver

€34,06

Options

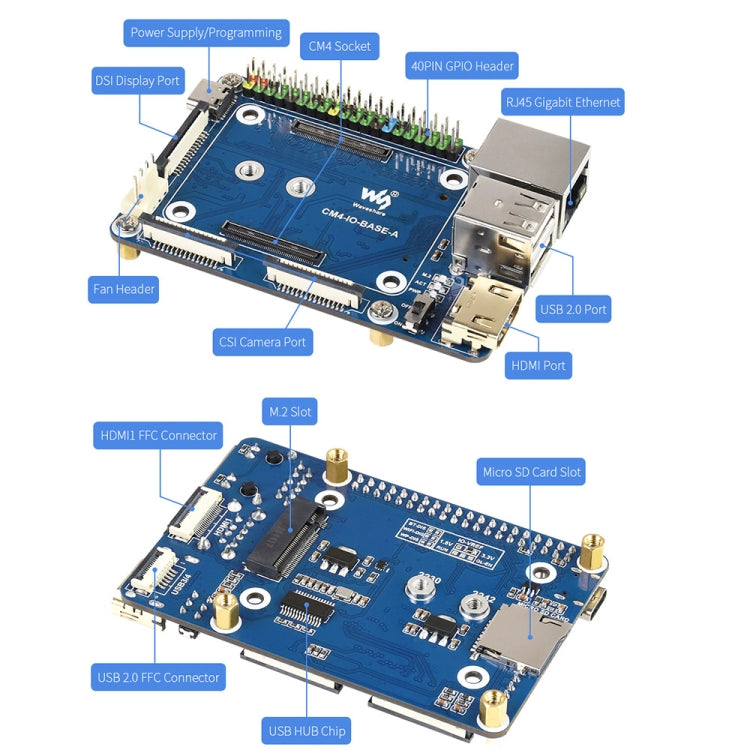

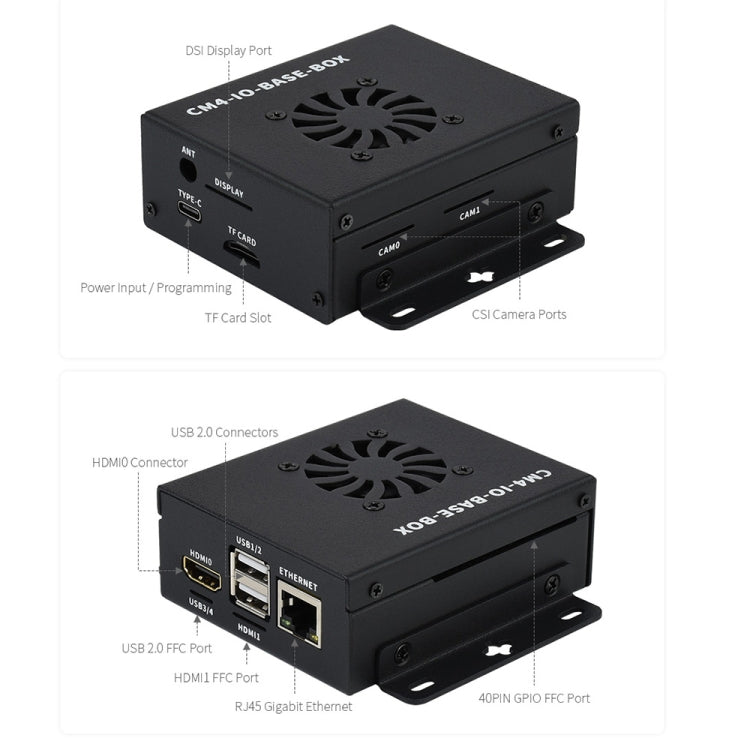

Specifications B>
1. USB:
- USB 2.0 x 2
- USB 2.0 x 2 (via FFC connector)
2. GPIO: Raspberry PI 40 Pin GPIO
3. Header: m.2 slot x 1
4. Support HD interface: HDMI X 2, 1x via FFC connector, support 4K 30FPS
5. DSI Display: MIPI DSi X 1 (15pin 1.0mm FPC)
6. CSI Camera: MIPI CSI-2 x 2 (15pin 1.0mm FPC)
7. Power input: 5V
8. Fan: 5V/12V (no fan control)
9. RJ45 Ethernet: Gigabit Ethernet
10. Slot cm4: suitable for all variants of the computing module 4
11. SD card slot: microSD card socket for Compute Modules 4 lite (without EMMC) Variants

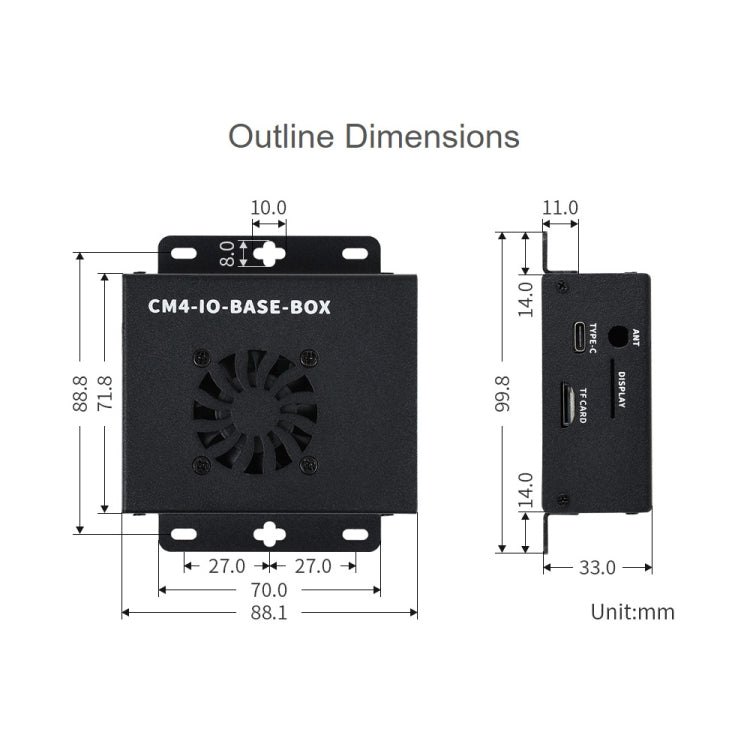

12. Dimensions: 85.0 x 56.0mm

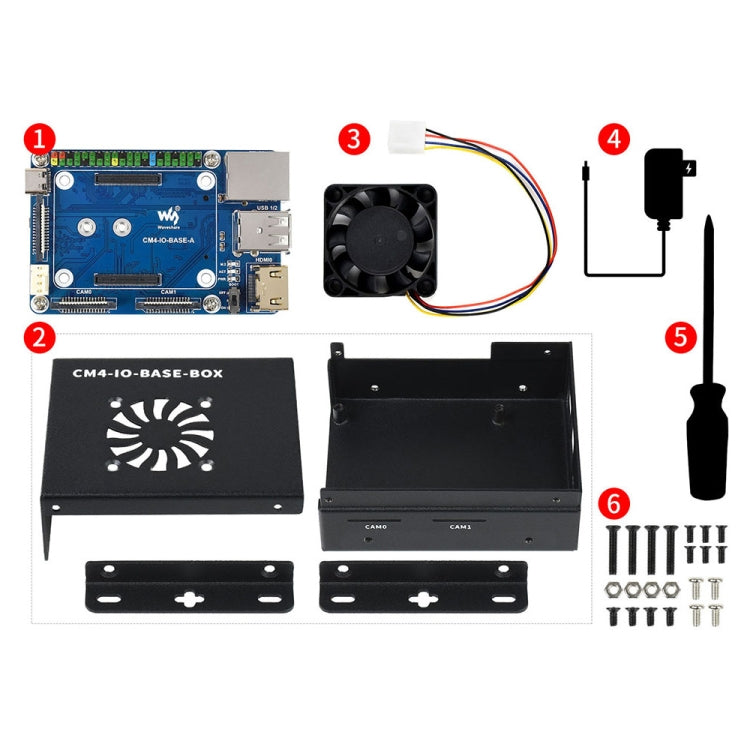

List of packages B>

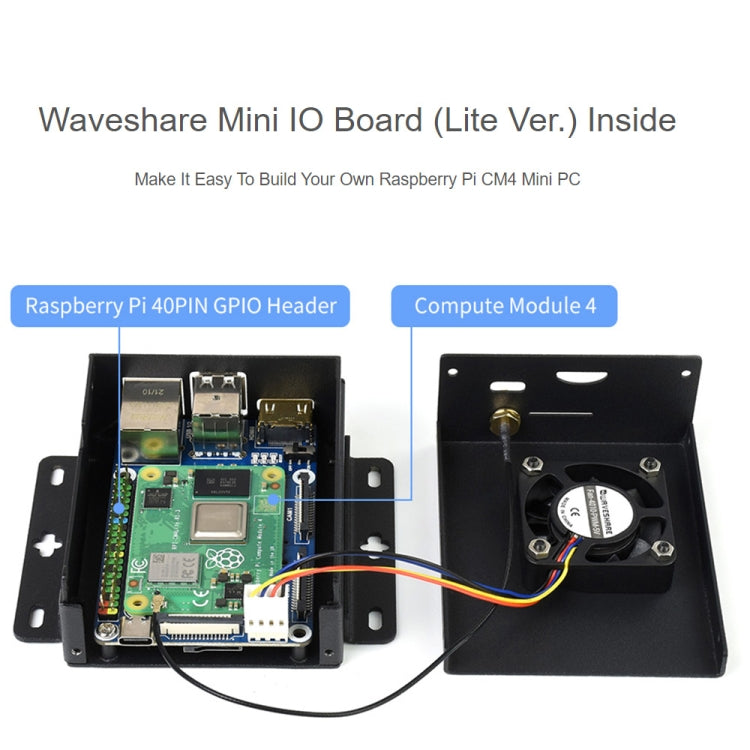

1. cm4-io-base-b x 1
2. Metal case (upper and lower) x 1

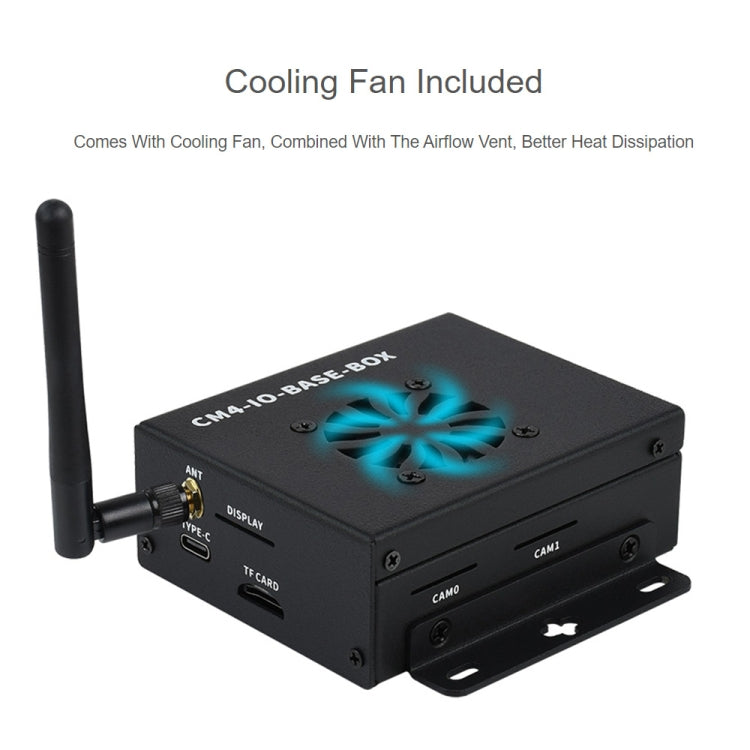

3. FAN-4010-PWM-5V X 1
4. Screwdriver x 1
5. Screw packaging x 1
6. USB-C 5V 3A Power Adapter X 1

Size:

package weight

Weight of each package 0.41kgs / 0.89lb

One size fits all product 16cm * 12cm * 5cm / 6.3inch * 4.72inch * 1.97inch

Quantity of a box 40

Weight of a box 16.50kgs / 36.38lb

Dimensions of a box 50cm * 32cm * 27cm / 19.69inch * 12.6inch * 10.63inch

Goods counter 20GP: 617 Box * 40 Piece = 24680 Piece
40HQ: 1432 Box * 40 Piece = 57280 Piece
