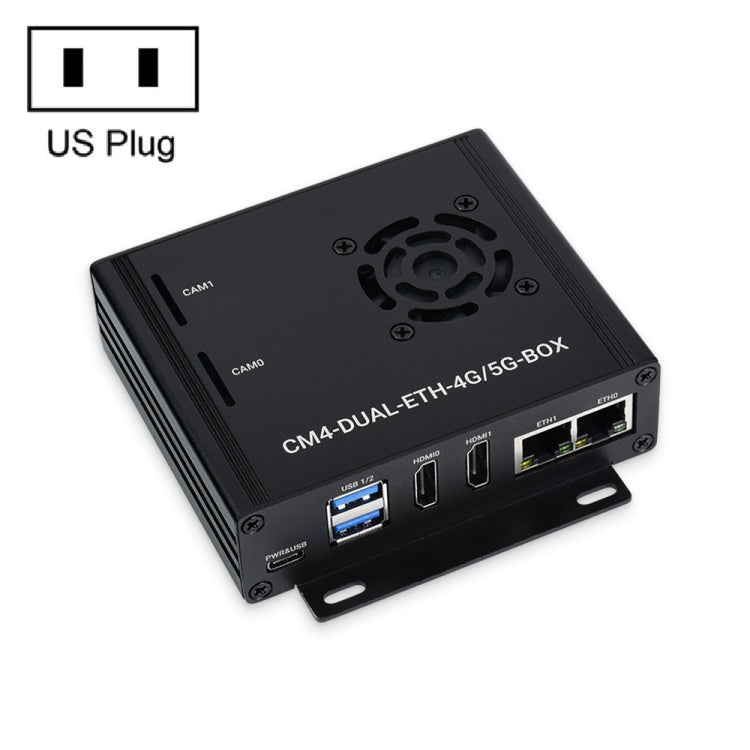

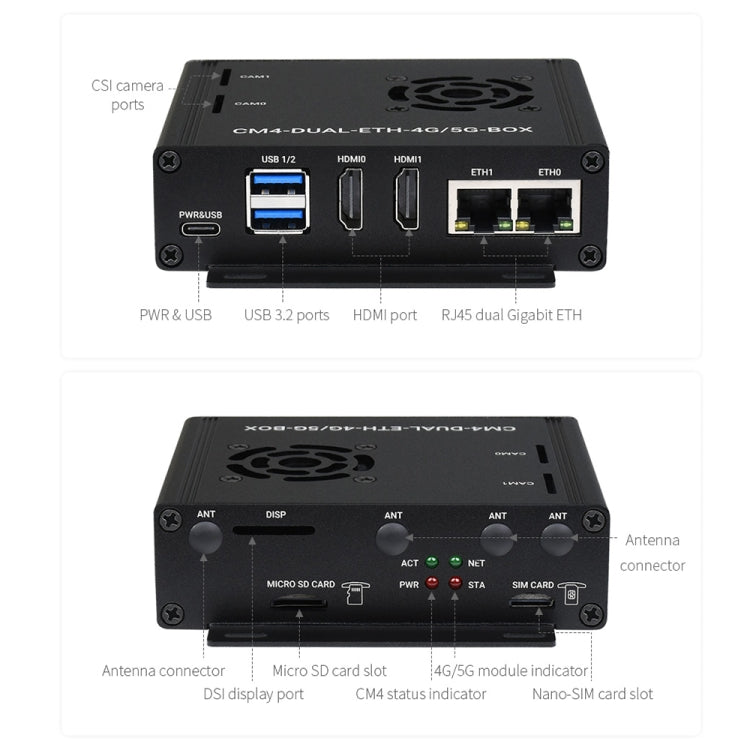

Waveshare Dual Gigabit Ethernet 5G/4G Computer Box with Cooling Fan for Raspberry Pi CM4
SKU: DIY0217EU
€73,54
In stock
Waveshare Dual Gigabit Ethernet 5G/4G Computer Box with Cooling Fan for Raspberry Pi CM4
€73,54
€73,54
Specifications B>

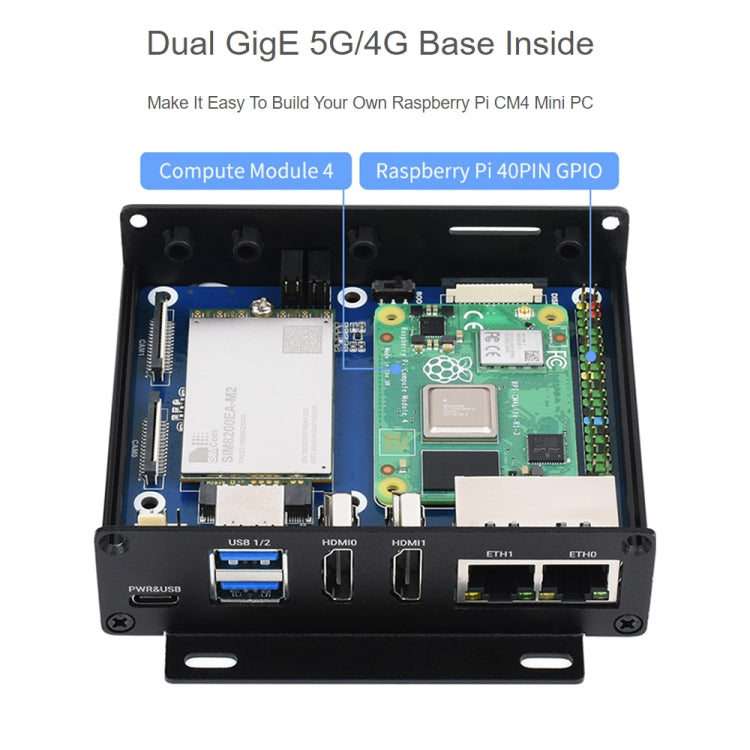

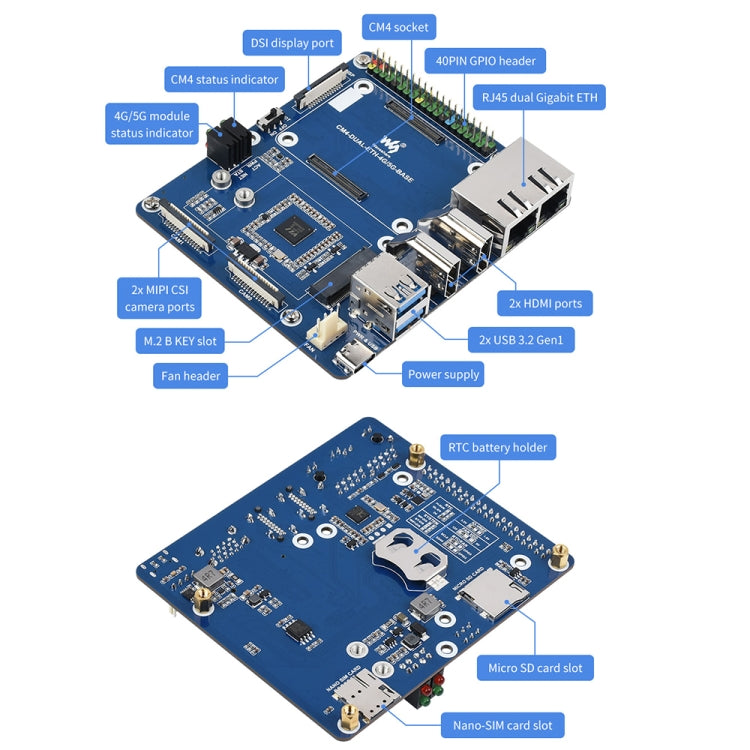

1. Socket cm4: suitable for all variants of the calculation module 4
2. Networking:
- Dual Gigabit Ethernet RJ45
- M.2 B button, for connecting the 5G / 4G module
- Nano-SIM card slot, support standard Nano-SIM card for 5G/4G/3G/2G communication
3. USB: USB 3.2 GEN1 X 2
4. PIN Header: Raspberry Pi 40pin GPIO Header
5. Display: DSI MIPI PORT (15 PIN 1.0mm FPC connector)
6. Camera: MIPI CSI-2 X 2 PORT (15 PIN 1.0mm FPC connector)
7. Video: HDMI X 2, support 4K 30FPS output
8. RTC: Real-time clock with battery power and wake-up capability Computing module 4
9. Storage: microSD card socket for Compute Modules 4 Lite (without EMMC) Variants

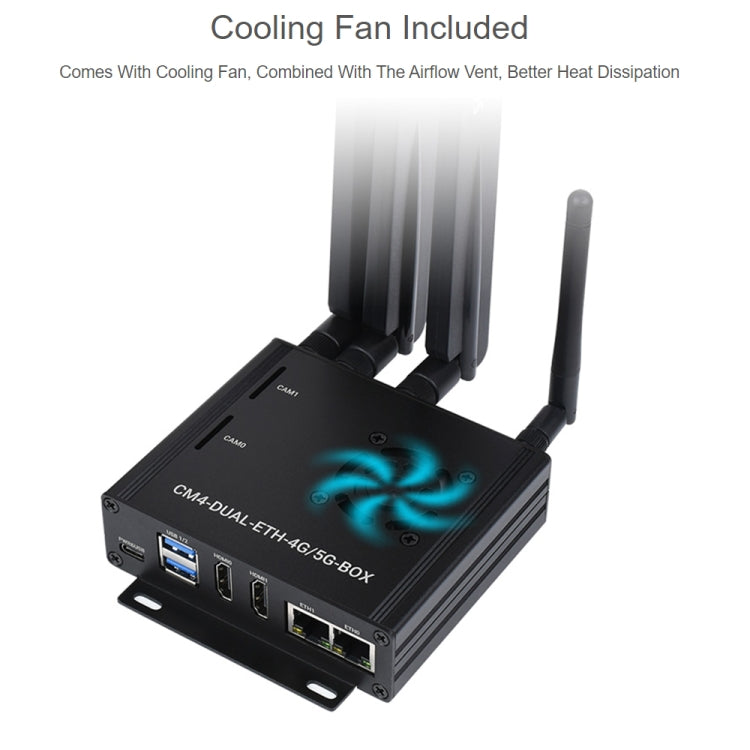

10. Fan header: 5V/12V (12V by default), allows speed adjustment and measurement
11. Power input: 5V / 2.5a
12. Dimensions: 99.6 x 87.0mm
1. Socket cm4: suitable for all variants of the calculation module 4
2. Networking:
- Dual Gigabit Ethernet RJ45
- M.2 B button, for connecting the 5G / 4G module
- Nano-SIM card slot, support standard Nano-SIM card for 5G/4G/3G/2G communication
3. USB: USB 3.2 GEN1 X 2
4. PIN Header: Raspberry Pi 40pin GPIO Header
5. Display: DSI MIPI PORT (15 PIN 1.0mm FPC connector)
6. Camera: MIPI CSI-2 X 2 PORT (15 PIN 1.0mm FPC connector)
7. Video: HDMI X 2, support 4K 30FPS output
8. RTC: Real-time clock with battery power and wake-up capability Computing module 4
9. Storage: microSD card socket for Compute Modules 4 Lite (without EMMC) Variants
10. Fan header: 5V/12V (12V by default), allows speed adjustment and measurement
11. Power input: 5V / 2.5a
12. Dimensions: 99.6 x 87.0mm
