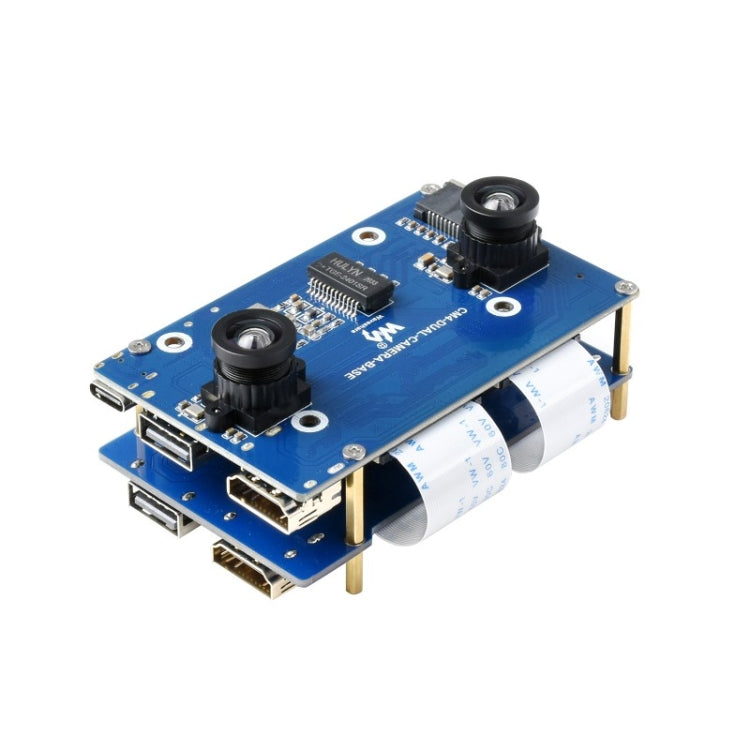

Waveshare Binocular Camera Base Board with Interface Expander for Raspberry Pi 4 Compute Module

€75,71

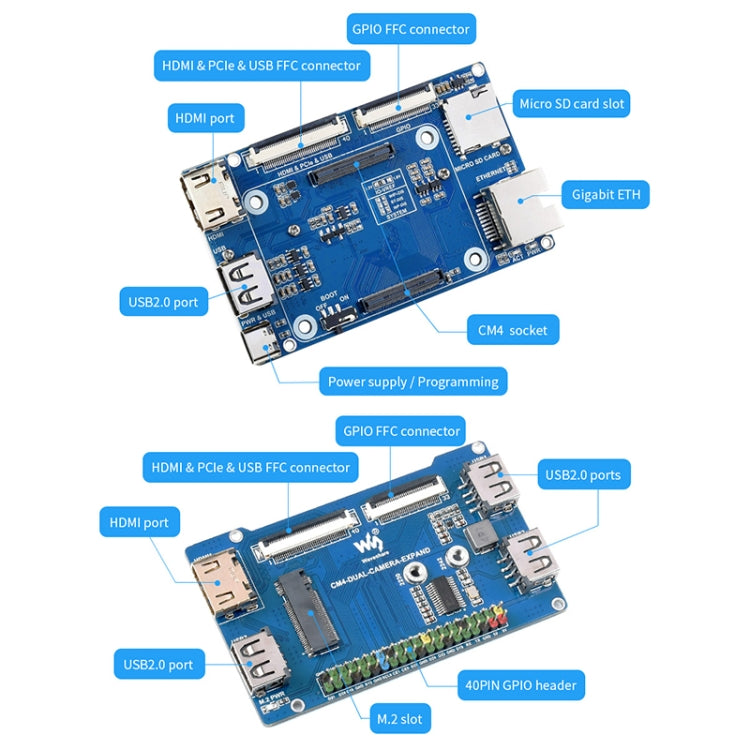

Camera base board B>

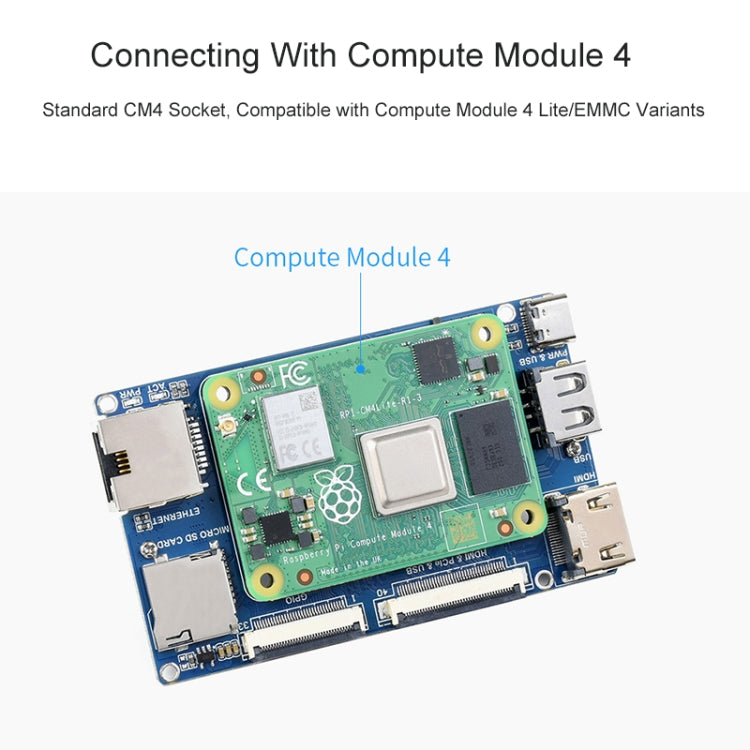

1. Socket cm4: suitable for all variants of the calculation module 4
2. Networking: Gigabit Ethernet RJ45
3. USB: USB 2.0 x 1
4. FFC Connector:
- HDMI and PCIE compatible FFC connector and USB x 1
- GPIO FFC Connector X 1

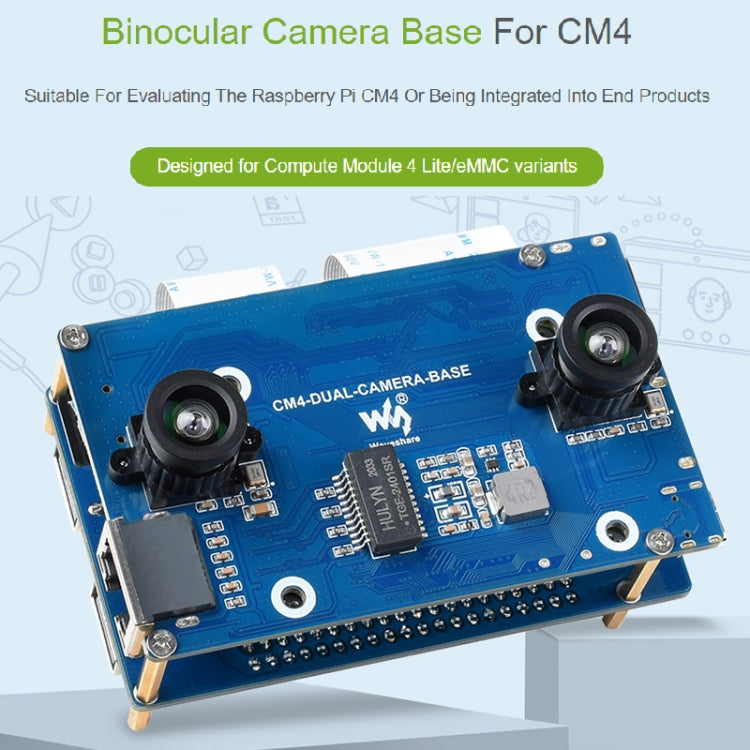

5. Dual-lens camera
- Pixels: 8MP
- Sensor: IMX 219
- Resolution: 3280 x 2464 (per channel)
- CMOS size: 1/4 inch
- Aperture: F2.4
- focal length: 2.6mm
- Fov: 83/73/50 degrees (diagonal / horizontal / vertical)
- Distortion: less than 1%
- Base length: 60mm
6. Video: HDMI-compatible x 1, support 4K 30FPS output
7. STORAGE: microSD card socket for Compute Modules 4 lite (without EMMC variants)
8. Power input: 5V / 2.5a

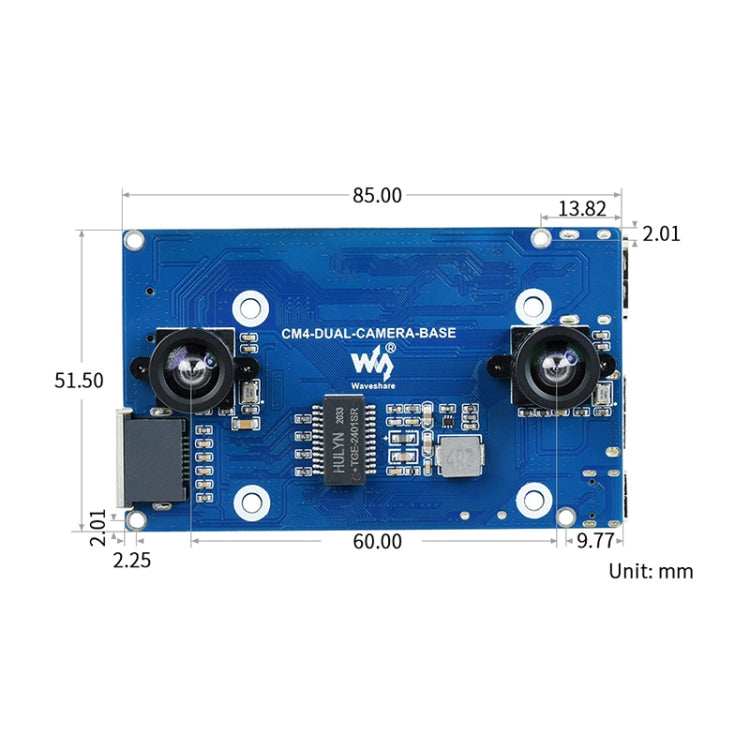

9. Dimensions: 85.0 x 51.5mm
Expander Interface B>
1. USB: USB 2.0 x 3
2. FFC Connector:
- HDMI and PCIE compatible FFC connector and USB x 1
- GPIO FFC Connector X 1
3. Other connector:
- M.2 m Key X 1, for connecting NVME SSD or Communication Module
- Raspberry Pi 40pin GPIO header x 1
4. Video: HDMI-compatible x 1, support 4K 30fps output
5. Dimensions: 85.0 x 51.5mm
List of packages B>
1. Dual camera base x1
2. Screw package x1
3. Expander X1 Interface
4. FFC 2PCS X1

Size:

package weight

Weight of each package

0.08kgs / 0.19lb

One size fits all product

15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch

Quantity of a box

200

Weight of a box

16.00kgs / 35.27lb

Dimensions of a box

52cm * 42cm * 42cm / 20.47inch * 16.54inch * 16.54inch

Goods counter

20GP: 290 Box * 200 Piece = 58000 Piece
40HQ: 674 Box * 200 Piece = 134800 Piece
